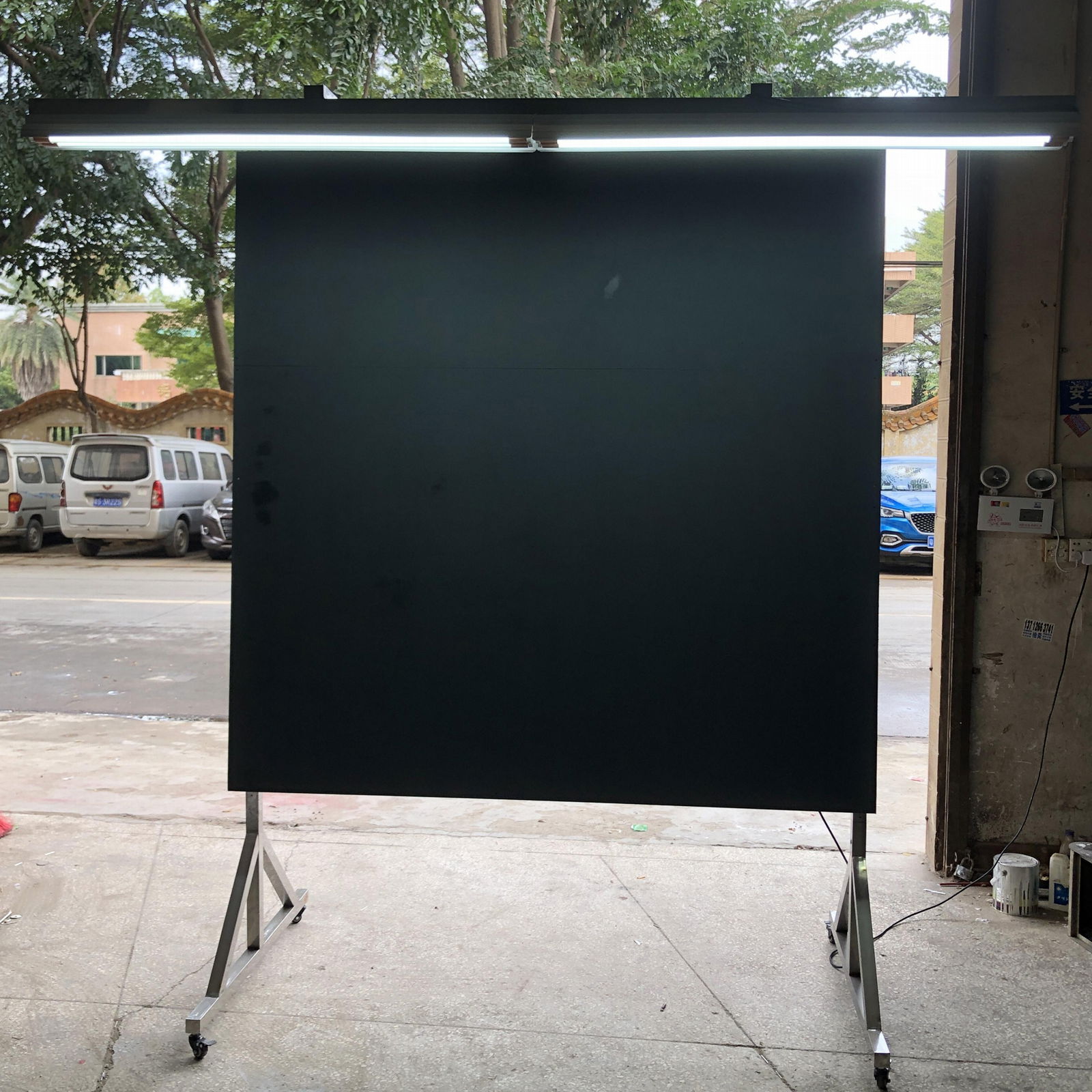

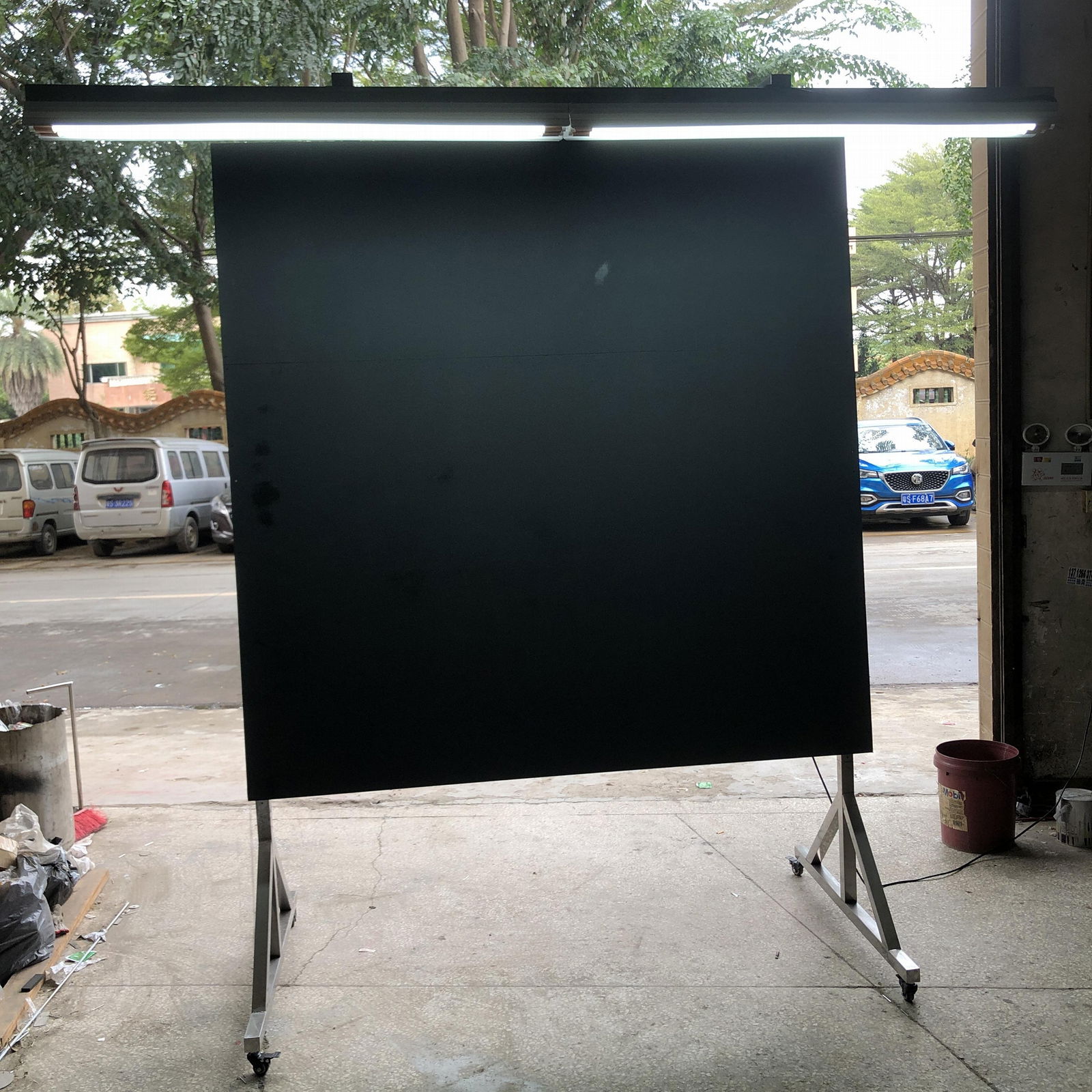

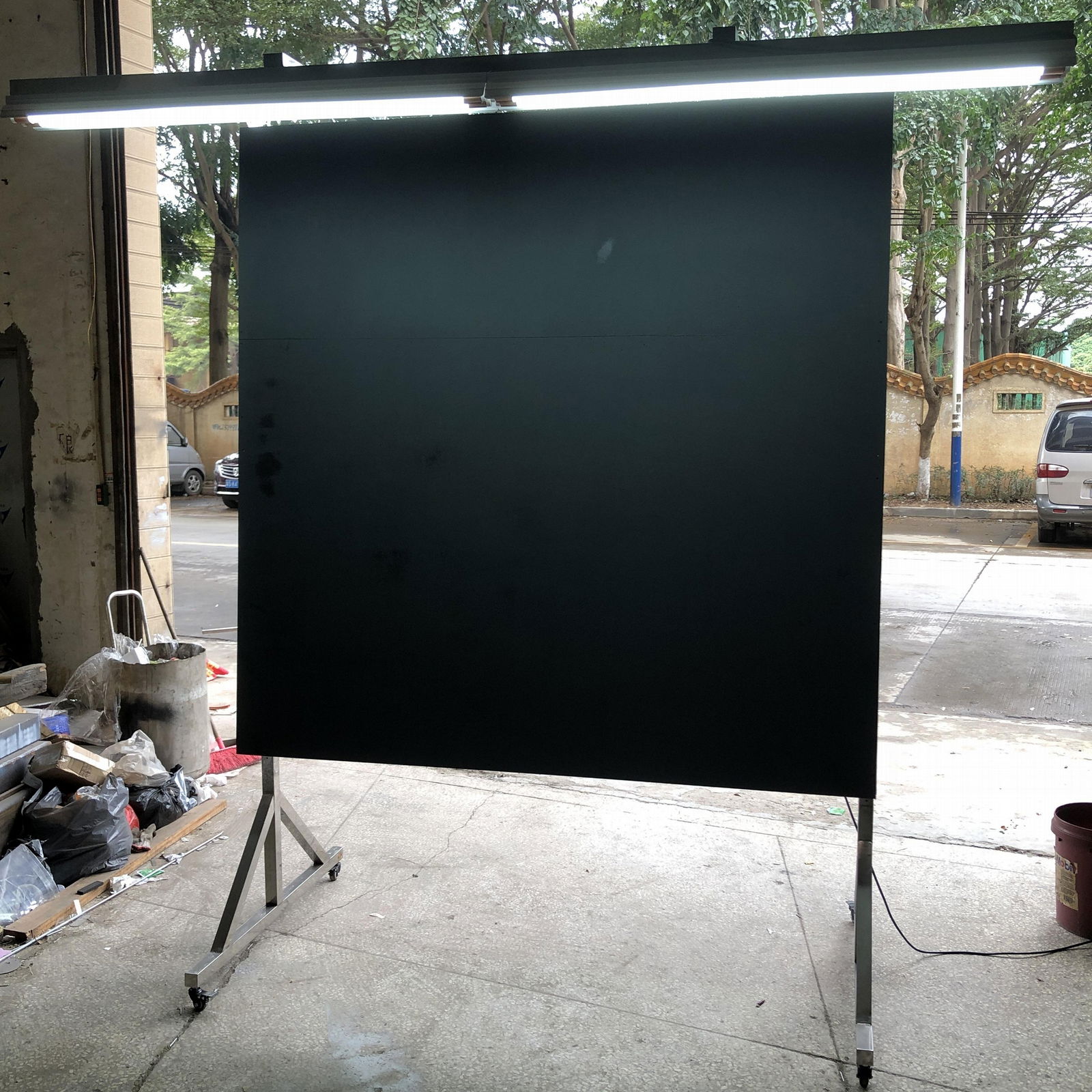

TN1758  Illuminated Viewing Board

Rating Observation Board,Light Equipment for Viewing Test Specimens



INTRODUCTION

1.Assessment fabric appearance of smooth, seam smoothness and crease retention.

Special for Marks & Spencer suppliers only.

2.Comparison with the standard drawing card in standard light source and evaluation version for rating assessments the appearance of the specimen.

3.The assessment should be carried out in a dark room only with the light source of instrument, any reflection of ambient lighting will affect the ratings results.

4.Rating observation board with a length of 2400 mm or 1200 mm cold light source 2 pcs.

The device is equipped with a switch to control and the use of high-frequency power supply control apparatus.

5.The rating observation board can be mounted on the wall or sliding cart, and can also be

customized according to user requirements.

TECHNICAL PARAMETERS

1.Tube : CWF ,1200 mm ×2×2

2.Power supply : AC220V ,50/60 Hz

3.Weight : 80 kg

2.Dimension : 185×150×250 cm

5.Packing size : 185×50×195 cm

STANDARDS

AATCC 88B,AATCC 88C,AATCC 124,AATCC 128,AATCC 143,ISO 9867,GB/T 29257,GB/T 13769,GB/T 13770,GB/T 13771,M&S P134;AACC 178;FZ/T 80007.3

OPTIONAL

TN11008  AATCC Crease Recovery Tester
