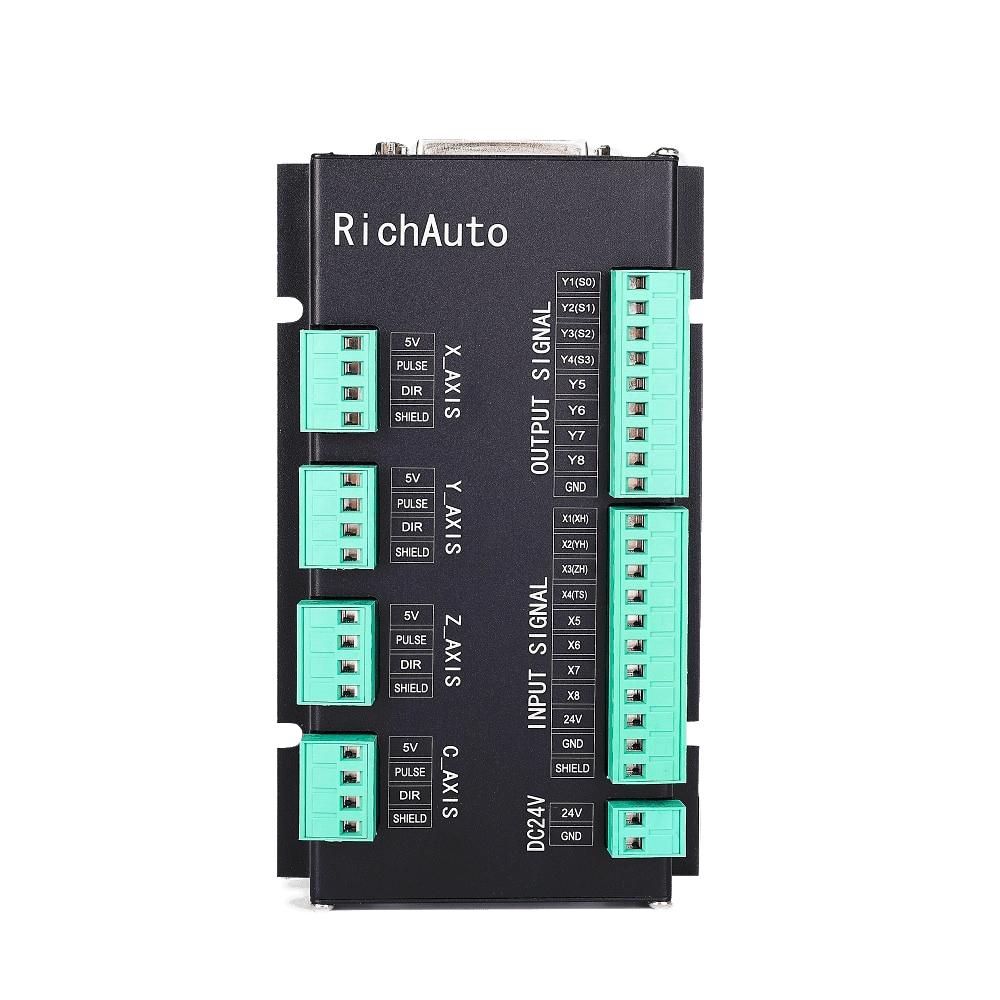

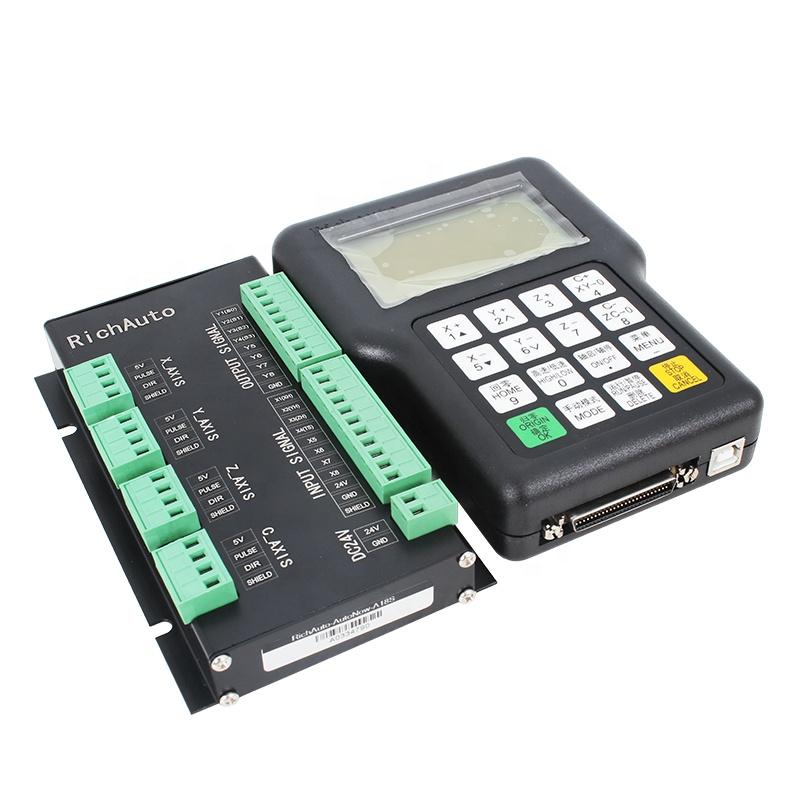

Richauto DSP A11 Handle controller For 3axis CNC Router
| Model: | A11 |
|---|---|
| Brand: | richauto |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Rich Auto Dsp A11E , 3 Axis Dsp Remote Ha , Dsp 3 Axis A11E |
| Price: |
US $245
/ set
|
| Min. Order: | 1 set |
Product Description
RichAuto control system provide two modes of buttons' operation,including one-touch button & Combination button.
One-touch button: Press one button on handle.
Combination button: Press two buttons at the same time to achieve the operation; theoperation step: press one main function button and meanwhile press a second accessibility button,and then release the two buttons at the same time to realize the combination button operation.
| Product number | RichAuto DSP A11 |
| processor | DSP |
| Built-in memory | 512MB |
| Display screen | Three-inch monochrome screen |
| Communication port | U Disk |
| Number of linkage axes | 3 axis |
| control signal | Differential signal |
| Drive System | Stepper/Servo Motor |
| Minimum input unit | 0.001mm |
| Power failure protection function | stand by |
| Breakpoint processing function | stand by |
| External power supply voltage | 24VDC |
| Manual mode | Continuous, jog, distance |
| Interpolation method | Straight line, arc |
| Maximum pulse frequency |
1MHz |
