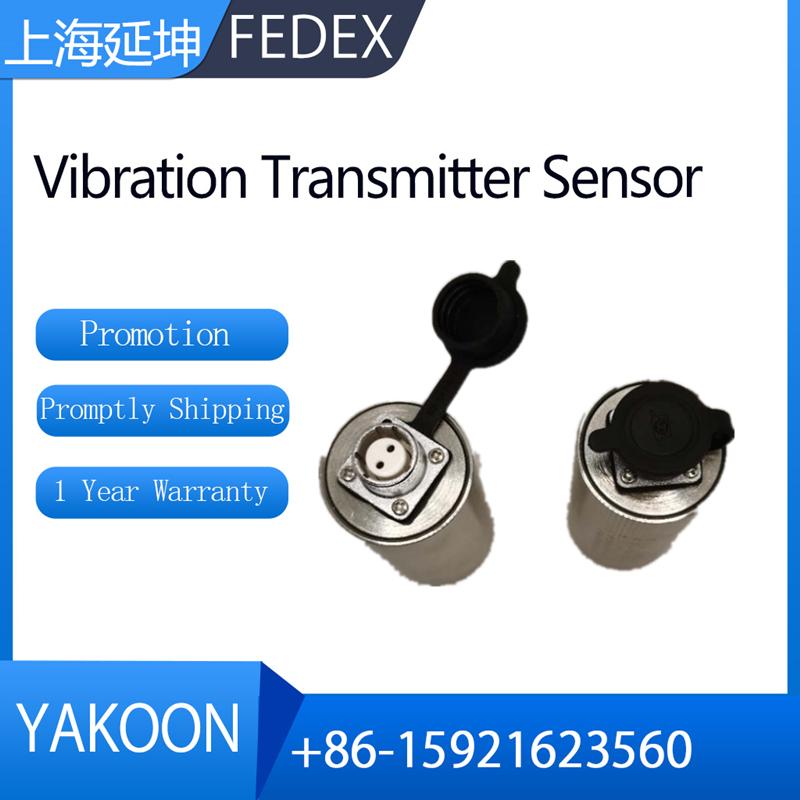

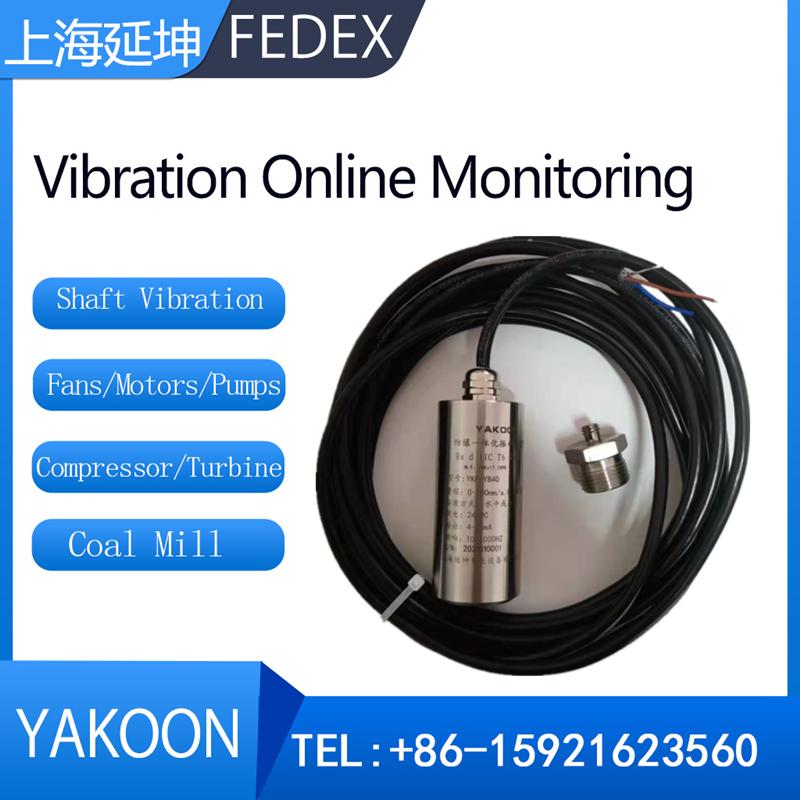

YK-YB40 The integrated vibration transmitter integrates magnetoelectric vibration sensor and precision measuring circuit together to form a high-precision vibration measuring system. The transmitter can be directly connected to DCS, PLC or other equipment. It is an ideal choice for measuring the vibration of fan, motor, water pump and other factory equipment.

2．Parameters

2.1 Frequency Response: 10~1000 Hz or 5 ~ 1000Hz (optional)

2.2 Natural Vibration Frequency：10Hz

2.3 Measuring Range：Displacement: 0-1000um (optional)

          Velocity: 0-100mm/s (Optional) 0-20MM/S

2.4 Output：4～20mA

2.5 Output Impedance：≤500Ω

2.6 Power Supply：DC12-24V±10%

2.7 Wire Method：2 wires

2.8 Installation: Horizontal or Vertical

2.9 Working Temperature：-40℃～100℃   Humidity ≤90%

2.10 Size：φ35×75mm

2.11 Installation Thread：M10×1.5×10mm（deep）

2.12 Weight: about 300g
