Waterproof Access Control Eletronic Lock Release Switch Infrared Switch
| Model: | SG-16,SI-58/98 |
|---|---|
| Brand: | SOCA |
| Origin: | Made In China |
| Category: | Security & Protection / Other Security & Protection |
| Label: | Multi-function , Push Button switch , Infrared Touchless |
| Price: |
-
|
| Min. Order: | 1 pc |
Product Description
- SG-16：Single switch.
- SG-26：With template SG-20P (115×39×4.5mm)
- SG-66：With template SG-60P (115×70×4.5mm)
- SG-86：With template SG-80P (86×86×4.5mm)
Specification
| State Indicator | Red and Green Double-colored LED light |
| Voltage input | 12VDC~24VDC ±10% |
| Current Consumption | Maximum 50mA ±5% |
| Contact Output | N.O. X 1 sets & N.C. X 1 sets |
| Output Status | Trigger / Toggle (turn the VR to the right) |
| Delay time | 0.5 sec~ 60 sec |
| Case | #304 Stainless Steel & PC Material |
| Buzzer | Sound off / Minimum / Medium / Maximum |
| Contact load | ≦2A@30VDC |
| Contact life | ≧50,000 times |
| Waterproof protection | The front panel against water splashing |
| Operation Temperature | 0~75℃ ( Humidity 85% R.H. Max ) |

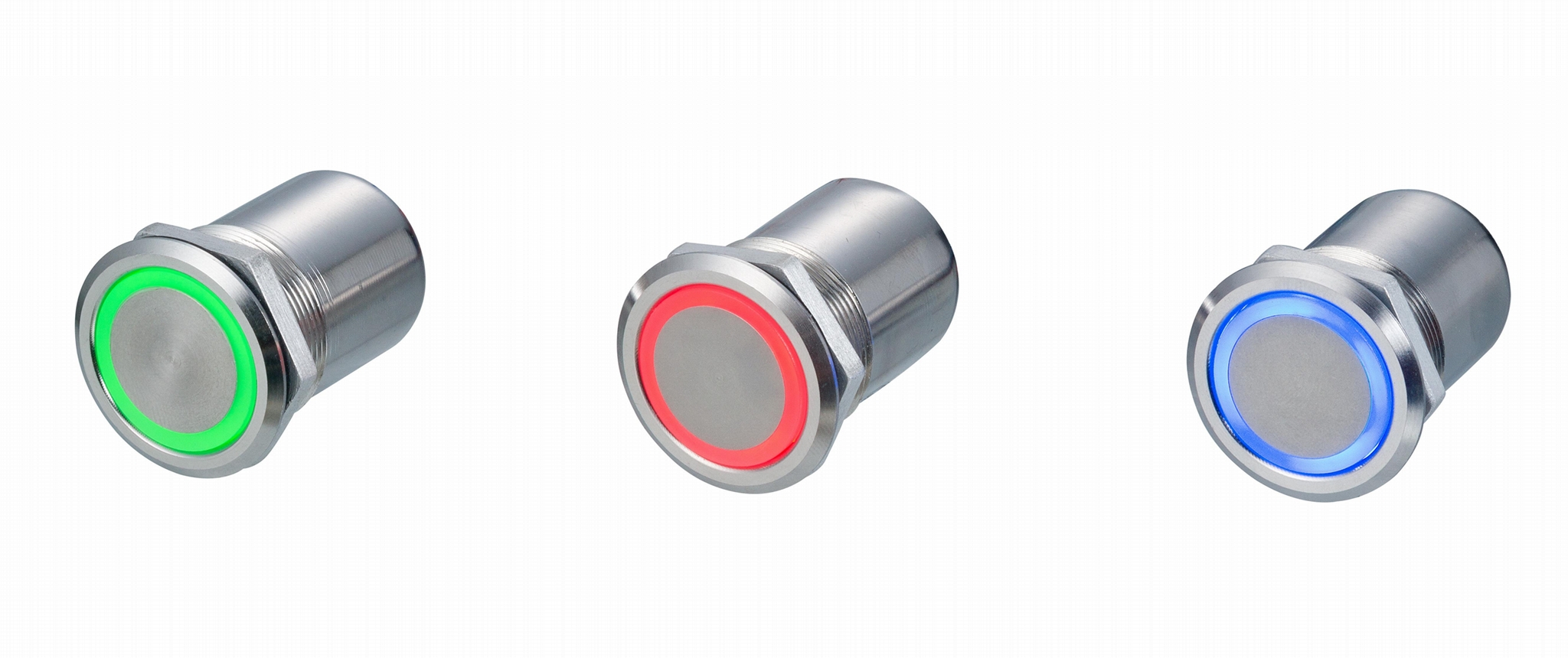

SIU-18：Single switch.
SIU-68：With template SIU-60P (115×70×4.5mm)
SIU-88：With template SIU-80P (86×86×4.5mm)
Specification
| Voltage Input | 12VDC~24VDC ±10% |
| Current Consumption | MAX. 55mA ±5% |
| State Indicator | Outer rim : Blue / Green /Red
Dynamic indicator :Orange |
| Buzzer | 1 set (controllable) |
| Sensor Range | 4~15 CM ±10% (Adjustment available) |
| Contact Output | N.O. / N.C. /COM. |
| Output Delay | Continuous output until the object is removed |
| Case | #304 Stainless Steel & PC Material |
| Contact load | 0.5A@AC120V / 1A@DC24V |
| Machine Life | 1000,000 times |
| Infrared Life | 100,000 hours |
| Water resistant IP | IP 65 |
| Operation Temperature | 0~75℃ |
- SI-58：with rectangle case.
- SI-98：with square case.
Specification
| Power Input | DC12V~DC24V (±15%) |
| Current Consumption | Maximum current 45mA@DC24V |
| Output Loading | 1A@DC30V(Max.) |
| Output State | Trigger state (0.5~30sec) or toggle mode output |
| Life Time | Infrared sensor : 100,000 hours
Relay mechanical lifespan : 1000,000 times |
| Indicator | Standby：RED ;
Proximity：GREEN (Color of indicator light is adjustable) |
| Proximity Range | 4~15CM (±15%) |
| Case | Stainless Steel / PC / Aluminum Alloy |
| Weight | SI-58 ; 270g (G.W.)
SI-98 : 202g (G.W.) |
