Features

• Use of KEELOQ code hopping technology by Microchip with 64 billion combinations which is guaranteed unable to break.
• Add One New and Delete All Transmitter(SR-30) management functions.
• Two REALY outputs. Adjustable Toggle state or Trigger state.

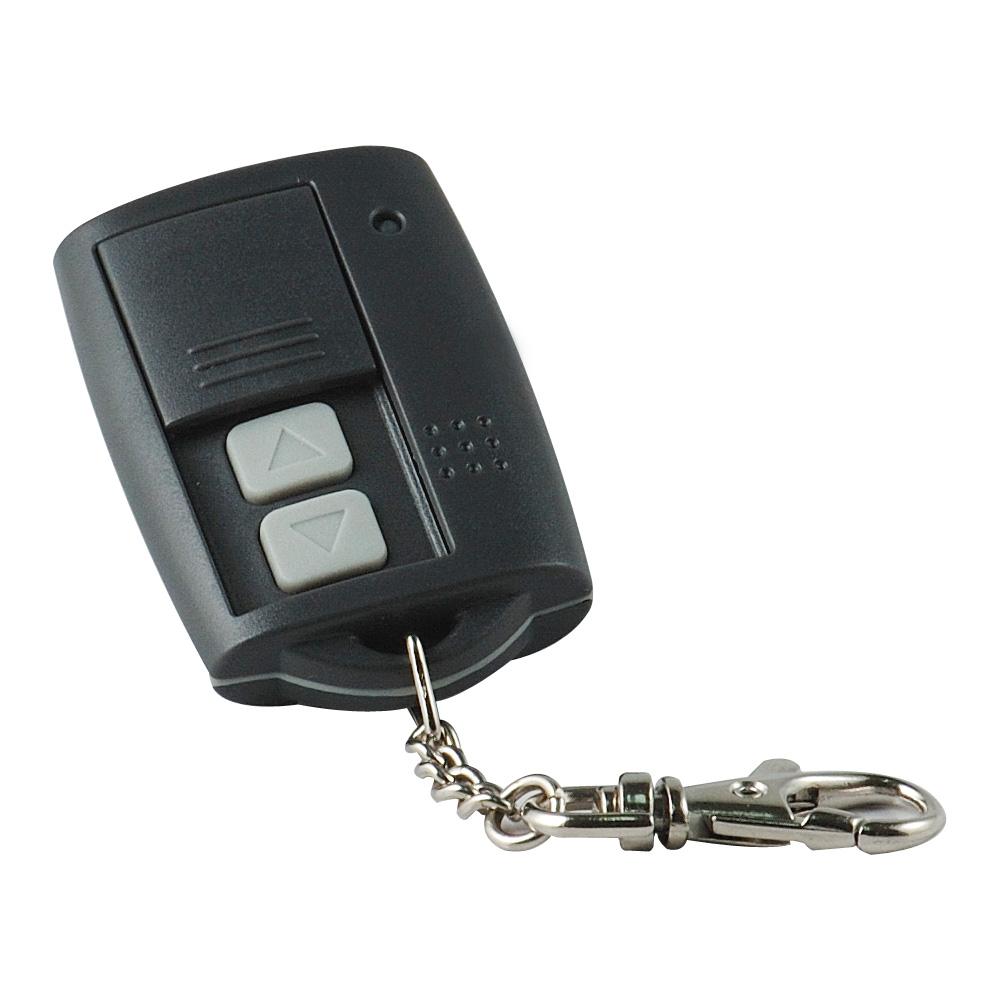

• Transmitter (SR-30) is waterproof designed. Sliding upper case to prevent buttons being pressed accidentally. Built-in proximity chip(optional)
• Special memory designed to prevent loss of data when power cut occurred.
• Internal voltage supervisor and self-testing functions.
• Suitable for electric lock or other remote control applications
• The system can used for up to 80 remote controls.
• Maximum remote control distance between the main unit and the transmitter is 50 m.(without any obstacles)
• Contact rating: 1A@30VDC or 3A@24VDC or 2A@120VAC
• Frequency: 315 MHz。Power Supply：DC12V ±10％。
• Operation temperature: 0~60℃; Humidity: 85%Rh max.
• Dimensions: 90L X 60W X 22D(mm)
• Weight: Main unit 124g SR-30:30g

Safety/Quality Approvals

NCC authentication code :CCAB10LP2060T5,CCAB10LP2070T8
