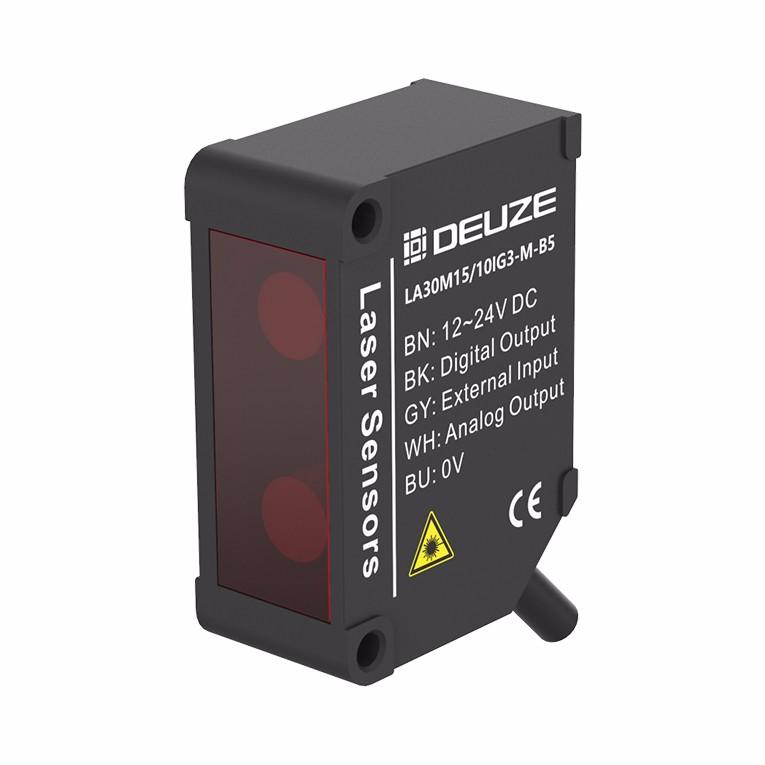

Measurement RS485 Measuring Sensor RS232 Laser Sensor Distanc
| Model: | LA30M15/10IG3-M |
|---|---|
| Brand: | deuze |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronics Stocks |
| Label: | Switch sensor , Laser Displacement S |
| Price: |
¥78
/ pc
|
| Min. Order: | 45 pc |
Product Description
| Type | Diffusive |
| Product dimensions | 17.8x31x44.4mm |
| Appearance design | Square design |
| Light source | Red laser(655nm) |
| Spot light diameter | 0.5×0.7mm |
| Detection distance | 10~20mm |
| Measurement center distance | 15mm |
| Power supply | 18~24V DC ±10% |
| Output mode | NPN open collector output，Mode switchable |
| Switch mode | NO/NC Mode switchable |
| Full scale | ±5mm |
| repeatability | 1μm |
| Linear accuracy | ±0.1%F.S. |
| Indicator | Set indicator/Mode indicator：red，Output indicator：green，Output indicator light: orange |
| Analog output | Current output：4~20mA，Voltage output：0~10V |
| Sampling period | 500μs、1000μS、2000μS、4000μS、AUTO |
| External input function | Laser off remote instruction sampling hold monopulse trigger to zero etc |
| Internal power consumption | 70mA |
| Maximum output power | 390μw |
| Circuit protection |
Short circuit protection,current protection |
| Temperature drift characteristic | ±0.02%F.S. |
| Ambient temperature | -10~50℃，CannotBeFrozen |
| Ambient humidity | 35~85%RH，No condensation |
| Ambient light immunity | 3KLux |
| Vibration Resistance | 10~500HZ |
| Impact resistance | 1.5mm(10G) |
| Degree of protection | IP67 |
| Laser class | Class1 |
| Material | Housing: aluminum; Lens: PPSU; Display panel :PET; Cable: oil resistant PVC |
| Connection | Plug：M12，5-core(300mm cable) |
