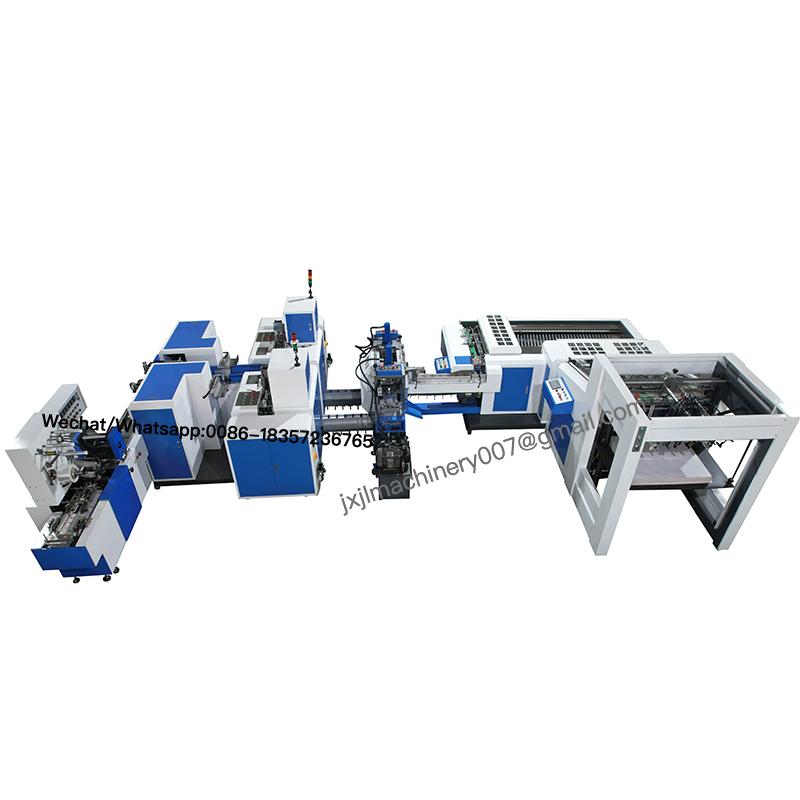

Production Process: Cutting + Round Corner Cutting+Detection +Counting + Packing

Fully automatic production line, integrated molding. One worker can easily operate it, saving manpower.



Characteristic:

1.Automatic feeding, cutting, collating,counting,cello wrapping
2.Rules by the former position, lateral rules prescribed by the flat paper roller convey to longitudinal slitting ,so as to meet
the same precision level as offset
3.Slitting knife easy to change, easy to adjustable;
4.Structure compact, easy to maintenance, cover a small area;
5.collating card system after few years reaching ,development ,try out, running stable;
6.Electrical by PLC control, collating system by touch screen control, safety and reliability, automatic , easy to operate;

Technical parameters:

PK108-110 Cards slitting machine:

5600x3840x1900mm,weight 4700kg

Counter: 2600x3840x1550mm,
weight 3000kg

Tuck box packing machine:

4100x1400x1800mm,weight 1300kg

Cello wrapper:
3000x850x1200mm,weight 800kg

Detailed Images

MODEL	PK54-55	PK108-110
Max.Paper size	600x760mm	1050x720mm
Min. Paper size	450x500mm	560x760mm
Max.Card size	120x100mm	160x160mm
Min.card size	50x70mm	50x70mm
Best machine speed	3200decks/hour	5000decks/hour



Youtube Video Link: https://www.youtube.com/watch?v=3DtaY7G7egc

Contact us for more information





FAQ

Q: Are you manufacturer of trading company?

A: We are a manufacturer in Zhejiang, China. The factory has been established for more than 10 years and has professional production technology and sales capabilities.



Q:  What is your terms of payment?

A:T/T 30% as deposit, and 70% before delivery.



Q: What is your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.



Q: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service.



Q: What is the Loading Port?
A:Ningbo port&Shanghai port.
