Rubber sheet batch-off cooling line Film Cooling Line

Model:	-
Brand:	hoki
Origin:	Made In China
Category:	Industrial Supplies / Rubber & Plastics Machine
Label:	cooling line , batch-off cooling , sheet film cooling
Price:	US $20000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

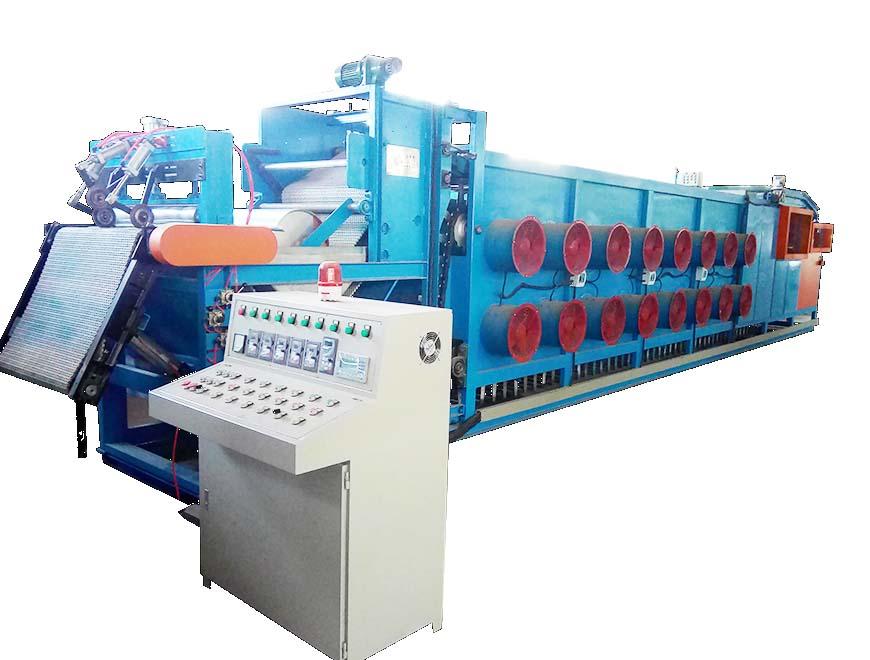

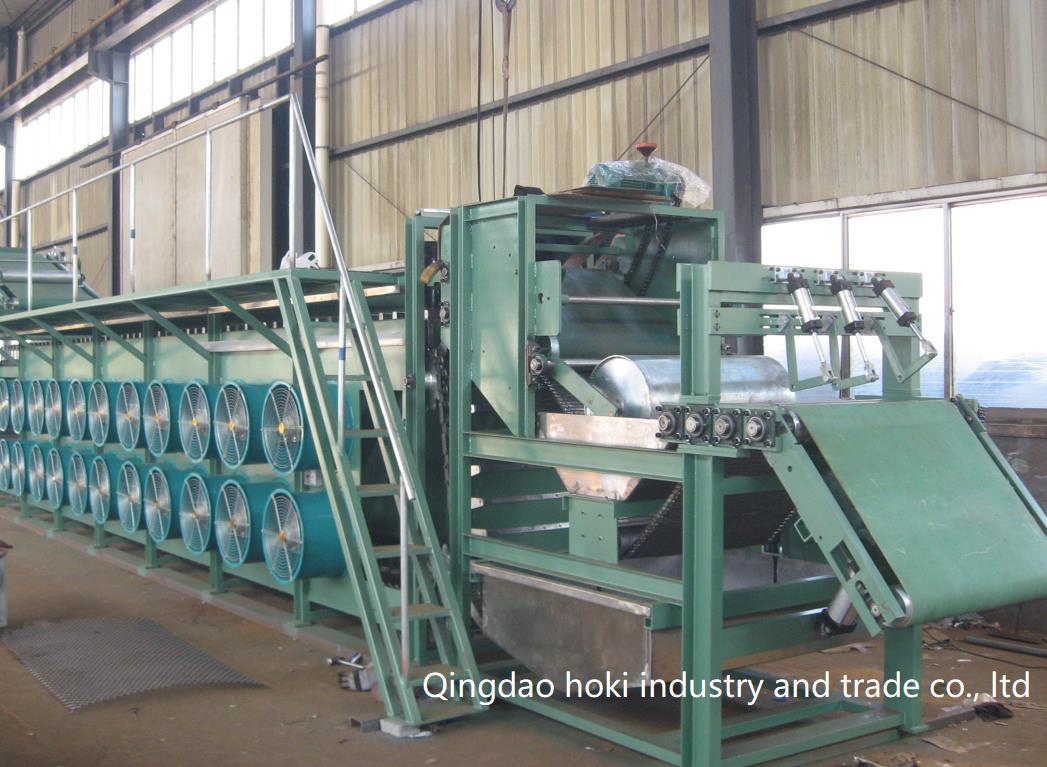

Rubber film cooling line equipment is the downstream auxiliary equipment of mixer or disperse mixer. It is used for cooling, folding and storing strips from open mills or twin screw extruders. It is designed to perform continuous operations of rubber sheet delivery, separation applications, air cooling, drying, cutting and wig stacking.

Rubber sheet size(mm)	(4-12)×600/900
Power(V/Hz)	380V 50Hz
air pressure(MPa)	0.4-0.8
Conveying speed(m/min)	40
Hang rubber rod movement speed(m/min)	0.117-1.17
Max height of handing(mm)	1400
Axial flow fan motor(kW)	0.37
Swing rubber max amplitude(m)(adjustable)	1.3
Frequency of swing rubber(m/min)	13
Rubber sheet temperature(°)	Field temperature+5
Cooling reducer motor(kW)	1.1
Lift reducer motor(kW)	2.2
Hang rubber rod reducer motor(kW)	5.5
Conveyor belt motor(kW)	3
Swing sheet reducer motor(kW)	1.1
