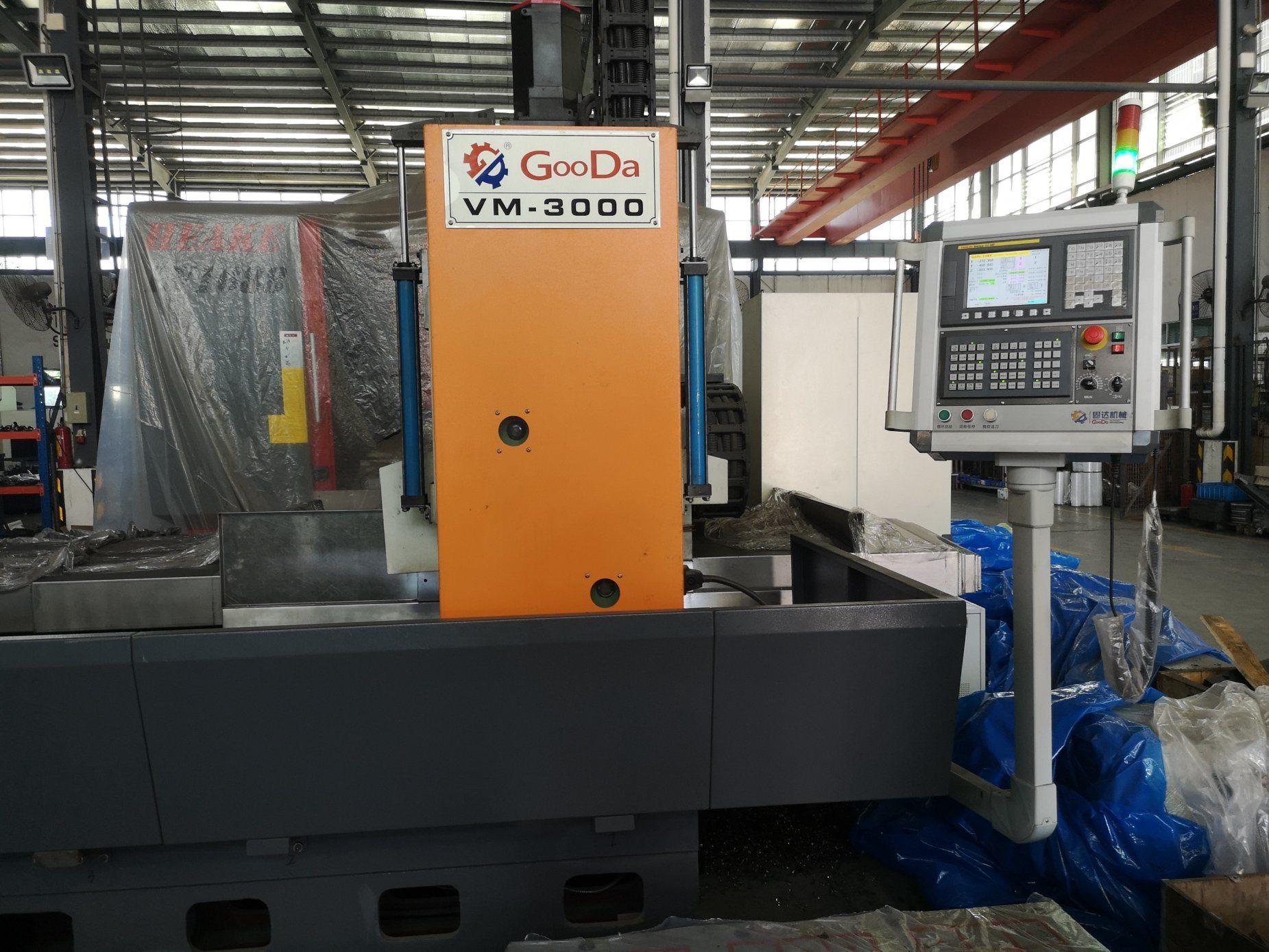

GOODA VM-3000NC CNC VERTICAL MILLING MACHINE-DOUBLE WORKTABLE SURPER METAL SURFACE PROCESSING MACHINE BEARING CAPACITY WITHOUT LIMIT TUV CE.ISO9001
CNC system once-setting for automatic guides where work-piece loading place, automatic measurement, automatic cutting, processing and unloading/loading/setting at the same time, which can reduce machine waiting for manual operation and increase Productivity, to secure high-accuracy of dimension, squareness and parallelism.
4 surface milling by only 1 setup
Servo-driven positioning plate
Auto-measuring
Auto-clamping
Auto-cutting from rough to finished
Auto-chamfering
Ready for cnc milling
Presquaring rectangular blocks
#cncgrinder #cncgrindingmachine #cncmachinetools
#cncmillingmachine #cncmachining #cncduplexmillingmachine #steelbar
#cncgantrymillingmachine #moldbaseshop #steelplateshop #workshop #forsale #Dieset #forgingpart #heavyplate
#manifoldblockshop #machining #manufacturing #cnc #steelplate
#GooDaMachinery #CNCmilling #CNCverticalmiling #precisionmachining #metalcutting #CNCgrinding #moldbase #kalip #mouldbase #CNCplatemill #CNCplanar #CNCplaner #castbase #quenching #drillingg #distressing #hardguideway #innovation #grinding #manufacturing #engineering #machinists #steelshop #precisionmachining #precisionengineering #aluminumplate #automation #3dprinting #aerospace #automotive #steelbar #steelindustry #steelfabrication #machining #machineshop #sawing
| No. |
Item. |
Description |
Specification |
| 1 |
Model |
GOODA CNC vertical milling machine |
VM-3000 |
| 2 |
Cutting capacity |
Maximum machining length(mm) |
1500 |
| Maximum machining width (mm) |
100 |
| Maximum processing height (mm) |
400 |
| 3 |
Worktable |
Worktable size(mm) |
1500/1000*600 |
| Max loading weight |
Bearing capacity without limit |
| 4 |
Spindle assembly |
Spindle motor power KW |
11/15 |
| Spindle taper |
BT50 |
| Spindle speed (RPM) |
50-500 |
| 5 |
Travelling speed |
X axis moving speed (mm/min) |
0-6000 |
| Y axis moving speed (mm/min) |
0-6000 |
| Z axis moving speed (mm/min) |
0-6000 |
| 6 |
Motor power |
X,Y,Z axis motor (KW) |
3,3,3 |
| Chips motor (KW) |
0.2 |
| 7 |
Others |
Machine height (mm) |
2200 |
| Machine Size (mm) |
7000*3000 |
| Machine weight( Kg) |
14000 |
