Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine

Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine
Model:US-360AF
Brand:UUUPART
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:auto screen printer , silkscreen printing , silk printing machin
Price: US $2100 / pc
Min. Order:1 pc

Product Description

Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine

This style screen printing machine is suitable to printing on cylinders, ovals, flat products made of round, curved materials such as ceramic, plastic, glass, wood, metal, etc. , Cups, filters, cans, toys, paint buckets, buckets, mineral water buckets, etc .;

Purchase Bag And Bottles Silk Screen Printer ​Feature:

1 Per position is induction with electric eye, having accuracy position and excellent function.

2 The Squeegee moving from left to right with guide pillar structure, moving smooth, light and hardy to provide the printing quality.

3 The screen frame raising and down with guide pillar, high accuracy, moving stable.

4 As your need, can setting printing once, twice etc.

5Stable function, the whole machine is controlled by Microcomputer.

6 As the customer requested, Setted two program, single cycling and automatic printing.

7 Can remember the setted program.

Cylinder Screen Printing Machine​ Parameter:

Item Number:

US-360FA

Max printing Diameter

120mm

Mini Printing diameter

10mm

Max screen Frame size

400x 650 mm

Max printing area:

300x 400mm

Worktable SQC Size

30x 9mm

SQC holder Length:

100mm or 200mm

Air consumption

2/ Cycle

Air  Expend/ cycling

2.1L

Printing Speed

1400 pcs/ hour

Screen Frame  stroke to up and down

80mm

Power

50W

Voltage of source

220V/ 1 phase 50 HZ

Net Weight/Gross Weight

160Kg/202kgs

Dimension

700mm x 750mmx 1620mm

Package Size

100X 87X 178cm=1.55cbm

Remark:

1 The guarantee time is 1 years, And maintain is lifelong.

2 The supplier must sure the machine all work well before package.  If Buyer can not operate the machine, the supplier must try their their best,  no reason and without reserve to teach the buyer completely.

3 Package: Wooden Case

4 Lead time: 10 days when receive your payment.

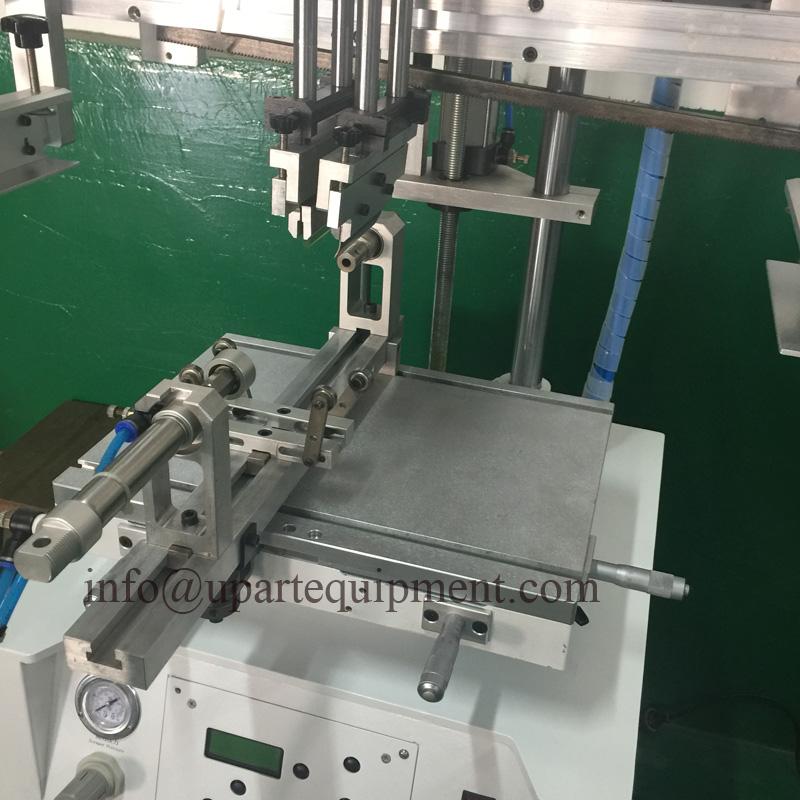

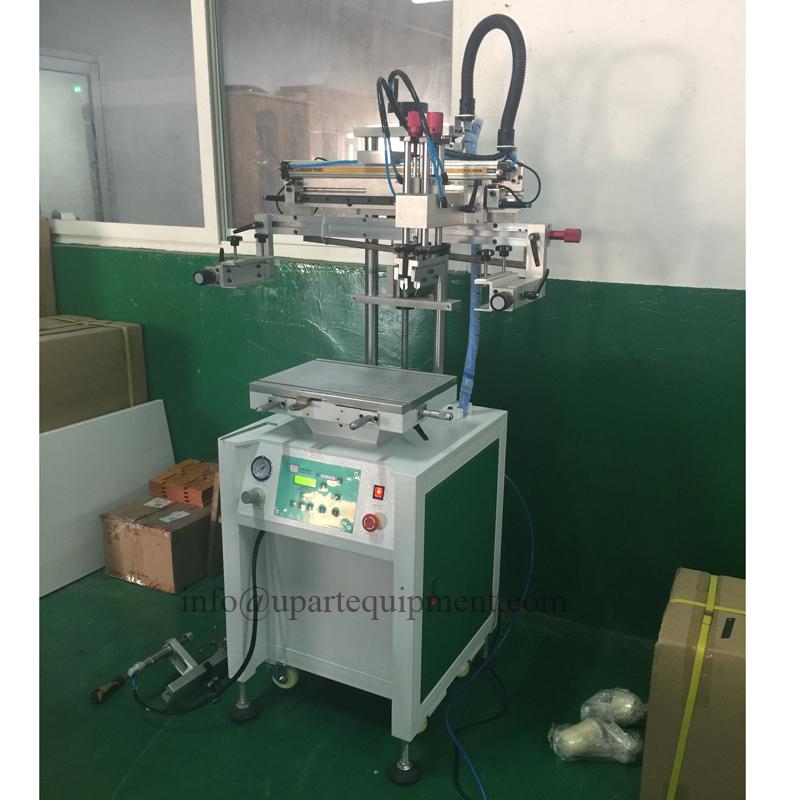

Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine 1Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine 2Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine 3Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine 4Purchase Bag And Bottles Silk Screen Printer Cylinder Screen Printing Machine 5
