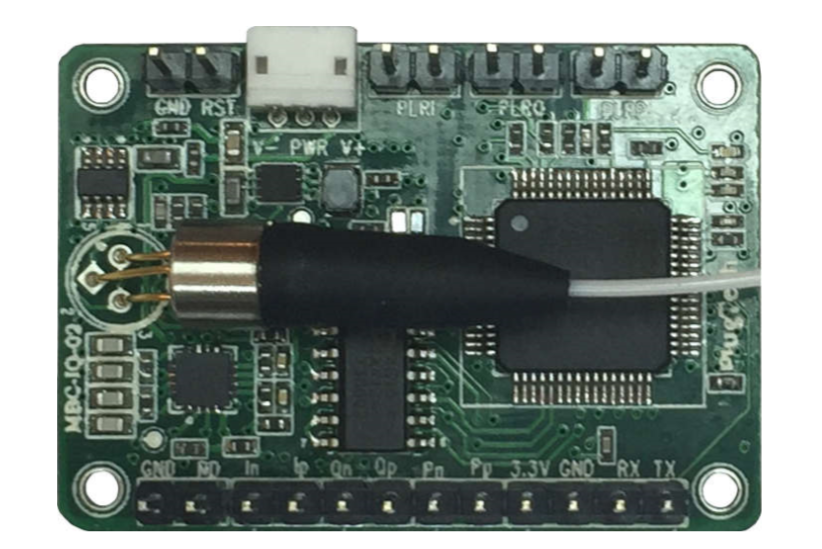

TK-ABC-IQ IQ modulator bias controller
| Model: | TK-ABC-IQ |
|---|---|
| Brand: | TaiKen |
| Origin: | - |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | LiNbO3 Modulator , Optical , Simulation |
| Price: |
¥25000
/ pc
|
| Min. Order: | 1 pc |
Product Description
TK-ABC-IQ Series IQ modulator bias controller can be used in LN IQ Modulation systems. It can be widely used in QPSK, QAM, OFDM, SSB systems. Automatic offset point controller can not only be integrated with LN modulator circuits, but also be used as a separate module. When used as a separated module, all you need to do is provide power through your own power adapter.
Features
- Supports multiple modulator formats(QPSK,QAM,OFDM,SSB)
- Additional programmable automatic trim back to lock offset point circuit
- Operating wavelength range:1100nm-1650nm
- Super small size, easy to integrated
- A variety of models are available for different modulators
Applying
- LiNbO3 Modulator
- High-speed fiber communication
- Simulation applications
- Optical fiber sensing
Performance parameters
|
Parameter |
Min |
Typ |
Max |
Unit |
|
Optical parameters |
||||
|
Input power |
-30 |
|
-10 |
dBm |
|
Working wavelength |
1100 |
|
1650 |
nm |
|
Electrical parameters |
||||
|
Bias |
-15 |
|
15 |
V |
|
Switch extinction ratio |
|
25 |
40 |
dB |
|
Accuracy of adjustment |
-2 |
|
2 |
degree |
|
Stable time |
15 |
20 |
25 |
s |
|
Clamping area |
Positive or Negative |
|||
|
Locked mode |
Quad+ and Quad- |
|||
|
Pilot signal |
||||
|
Modulation depth (QUAD) |
|
1 |
2 |
% |
|
Modulation depth (Null) |
|
|
0.1 |
% |
|
Pilot carrier frequency (QUAD) |
|
1K |
|
Hz |
|
Pilot carrier frequency (NULL) |
|
2K |
|
Hz |
