tractor mounted Pecan Tree Shaking

tractor mounted Pecan Tree Shaking
Model:4ZG-18
Brand:-
Origin:Made In China
Category:Industrial Supplies / Farm Machines Tools
Label:pecan harvester , walnut Shaker , mounted Harvester
Price: -
Min. Order:2 pc
Inquire Now

Product Description

Multione Tree Shaker - Olive and Nut Harvester

The Multione tree shaker can be used to harvest olives, pistachio nuts, almond nuts, macadamia nuts and other nuts by shaking. With the optional collector fitted fruit falls to the bottom of the harvestor and can then be emptied into a bin by opening the hydraulically operated bottom trap door. Shaker is from operator seat and can process between 40 to 60 trees per hour. We also have shaker units that can be connected to tractors.

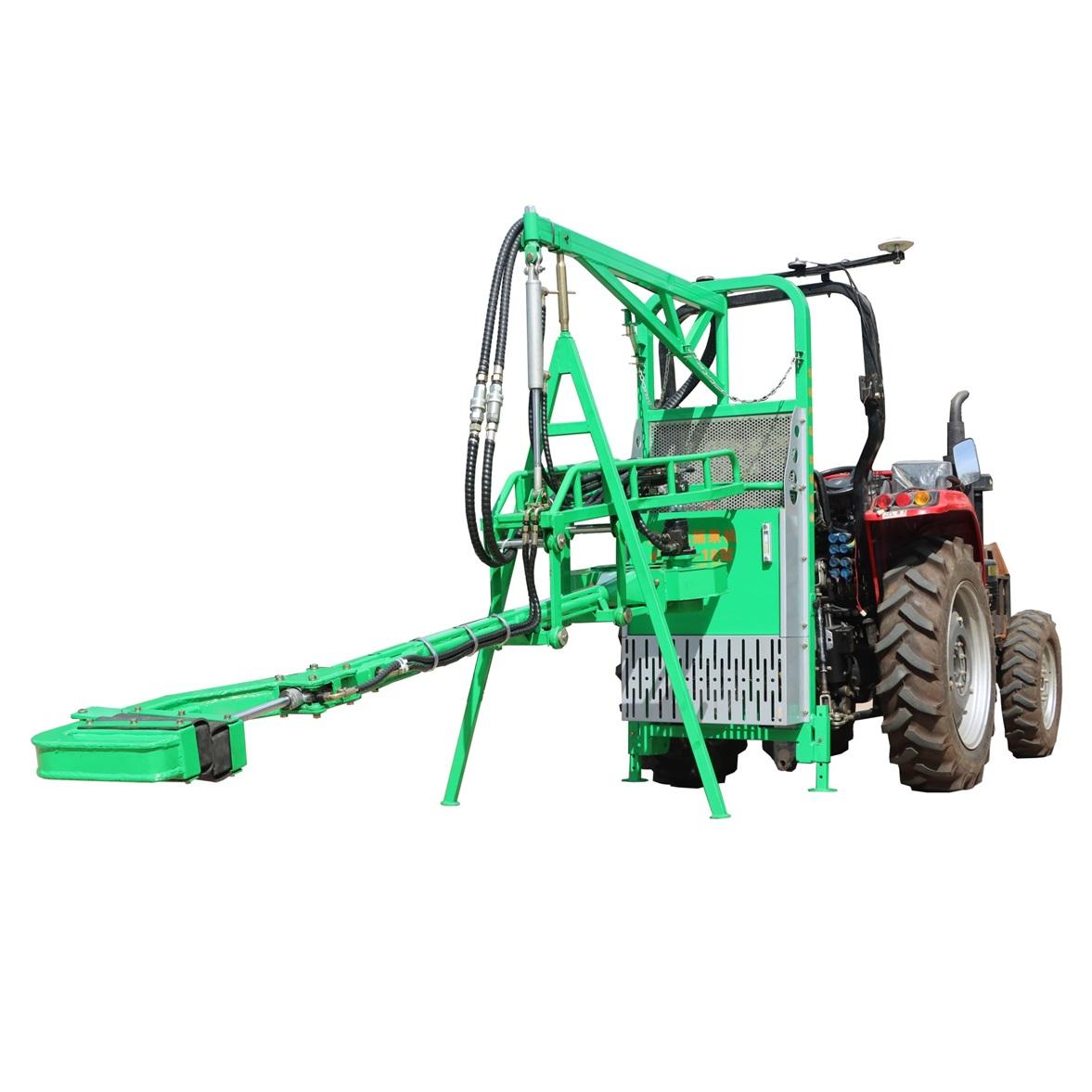

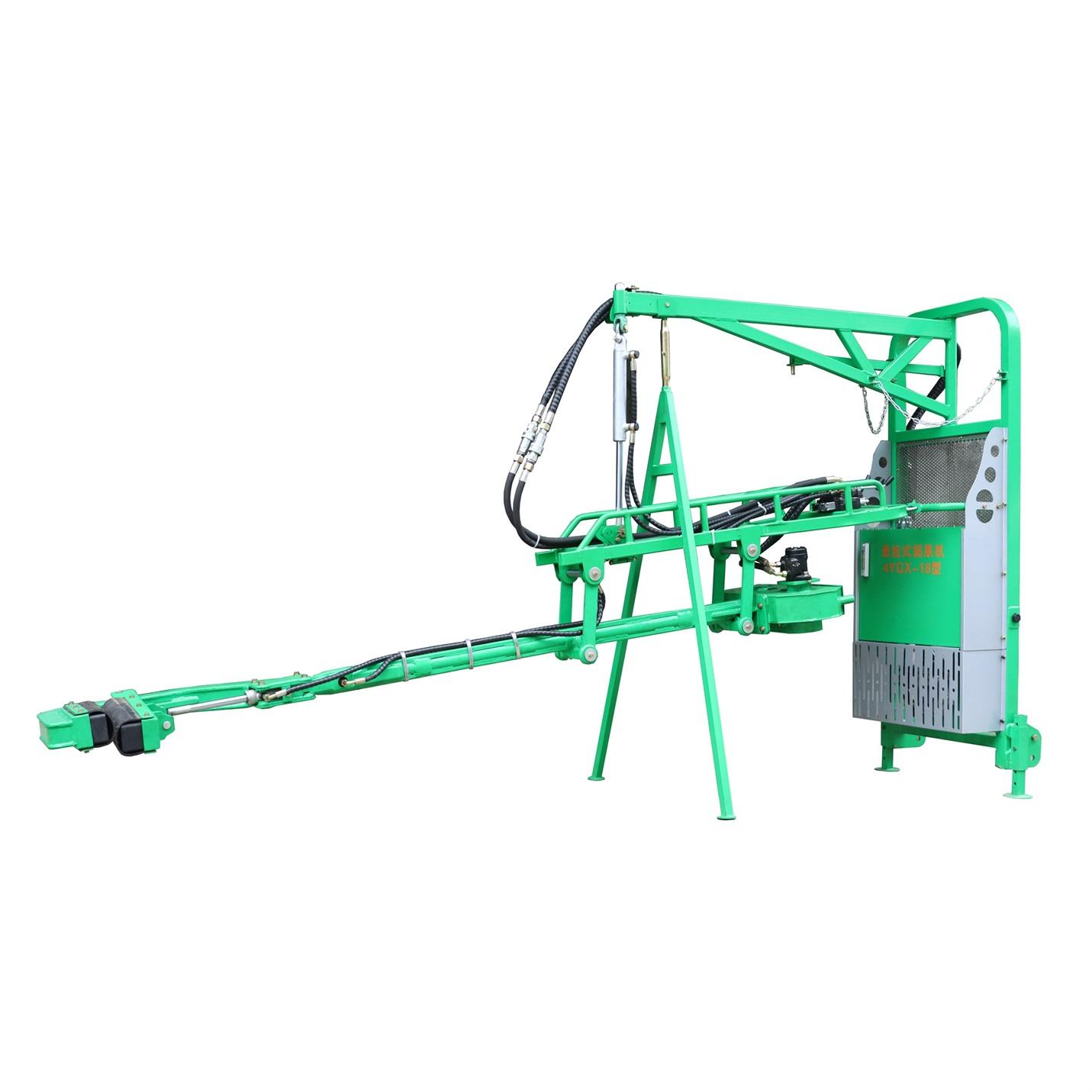

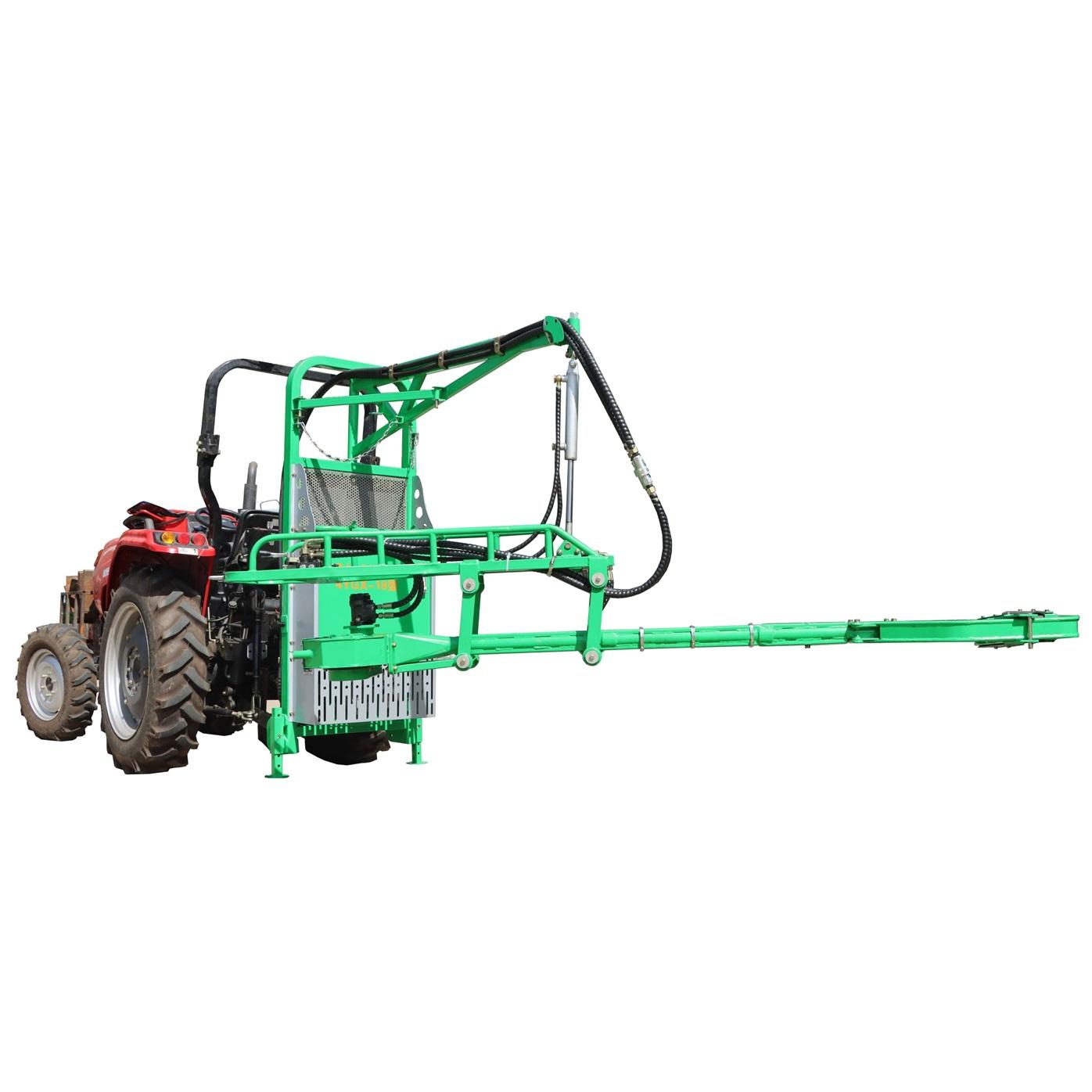

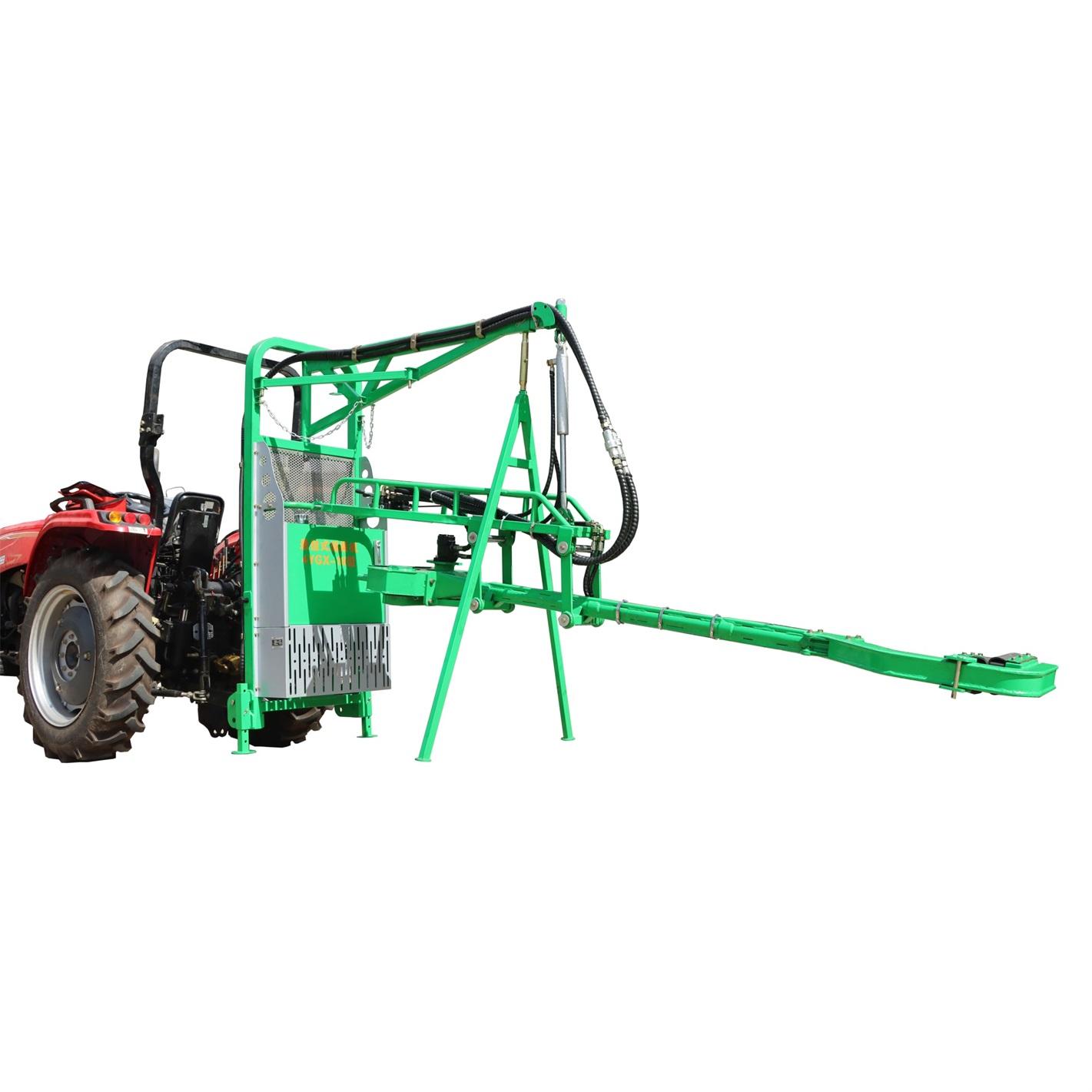

A very popular solution because it combines an excellent working visibility with agile movement in the olive grove. The telescopic arm is applied to the side of the tractor using special frames. The hydraulic unit is installed at the rear on the three-point coupling. The movement of the head and of the harvesting (optional) is performed using a joystick located in the cabin. After harvesting the tool can be disconnected in a few minutes.



Model

4ZGX-18

Configuration tractor power

≥36.8KW

Suspension type

Tractor multi-point hitch

Overall size

4520 x 900 x2100 mm

Net weight

350 KG

Fruit tree max diameter

200 mm

Clamp amplitude

≤ 2 cm

Pliers vibration frequency

8-12 Hz

Vibrating motor

From USA brand

Input gearbox

6 key

Work time

≤ 10s/time

Operation mode

Hydraulic control lever

Terrain adaptation

Mountains, hills, plains, etc

Suitable fruit trees

Nuts such as dried red dates, ginkgo, green fruits and walnuts

Price Terms:FOB Qingdao
Payment Terms:TT
Packing:NUDE
Lead Time:15
