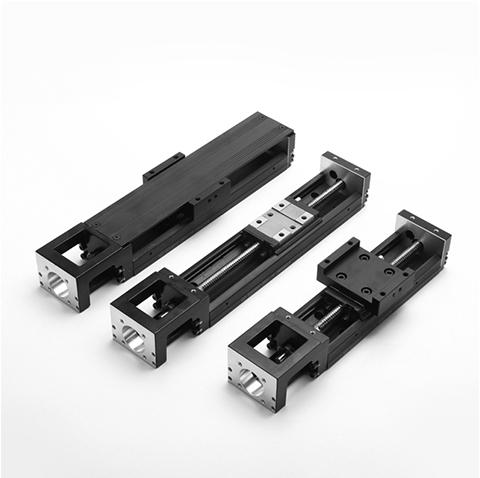

KKR Single Axis Robot

Model:	-
Brand:	vxolinearmotion
Origin:	Made In China
Category:	Industrial Supplies / Construction Machine
Label:	single axis robot
Price:	US $500 / pc
Min. Order:	1 pc

Inquire Now

Product Description

KKR Series industrial stage modularizes both ballscrew and guideway to achieve better performance on accuracy, stiffness, raipd installation, and space saving. With the block of KK driven by ballscrew and sliding on the optimized U-rail, greater stiffness and high accuracy are therefore performed.

Specification of KKR Single Axis Robot

Ballscrew								Guideway
Nominal Drameter (mm)	Lead (mm)	Basic Dynamic Load (N)	Basic Static Load (N)	Basic Dynamic Load Rating (N)		Basic Static Load Rating (N)		Static Rated Moment
								Allowable Static Moment MP(N-m) (prtching)				Allowable Static Moment Mv(N-m) (yawing)				Allowable Static Moment MR(N-m) (rolling)
				Block A	Block S	Block A	Block S	Block A1	Block A2	Block S1	Block S2	Block A1	Block A2	Block S1	Block S2	Block A1	Block A2	Block S1	Block S2
8	1	735	1538	3920	-	6468	-	33	182	-	-	33	182	-	-	81	162	-	-
		676	1284
8	2	2136	3489	8007	-	12916	-	116	545	-	-	116	545	-	-	222	444	-	-
		1813	2910
12	5	3744	6243	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
		3377	5625
12	10	2410	3743	13230	7173	21462	11574	152	760	72	367	152	760	72	367	419	838	241	482
		2017	3234
15	10	7144	12642	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
		6249	11387
15	20	4645	7655	31458	21051	50764	29475	622	3050	228	1309	622	3050	228	1309	1507	3014	847	1694
		4175	6889
20	20	7046	12544	39200	-	63406	-	960	4763	-	-	960	4763	-	-	2205	4410	-	-
		4782	9163
20	25	7897	15931	48101	-	84829	-	1536	7350	-	-	1536	7350	-	-	3885	7770	-	-
		7092	14352

Repeatability		Accuracy		Running Parallelism		Starting Torque(N-cm)
Precision	Normal	Precision	Normal	Precision	Normal	Precision	Normal
±0.003	±0.01	0.020	-	0.010	-	1.2	0.8


±0.003	±0.01	0.020	-	0.010	-	4	2



±0.003	±0.01	0.020	-	0.010	-	15	7



±0.003	±0.01	0.025	-	0.015	-	15	7

±0.005	±0.01	0.035	-	0.025	-	15	10

±0.005	±0.01	0.040	-	0.03	-	20	12
±0.005	±0.01	0.045	-	0.035	-	23	15
		0.05	-	0.04		25
±0.005	±0.01	0.035	-	0.025	-	25	15
		0.04		0.03		25	15

±0.007	±0.012	0.05	-	0.04	-	27	15

VXO brand started to manufacture linear motion control systems in 2007. Our mission is to help customer build better machines and improve lives with our linear motion components product. With more than 15 years experience of elaborately managing, we have become the leading linear motion products manufacturer in China linear motion market. Our company has passed IATF16949 Certification, which means our linear motion control systems products can meet the standard of the auto-mobile industry application.
