GSK AE100 injection molding machine in 3C electronics industry

Application fields:3C electronics industry

Application materials:ABS+PC

Product requirements:No fog spots, flow marks, etc. on the surface

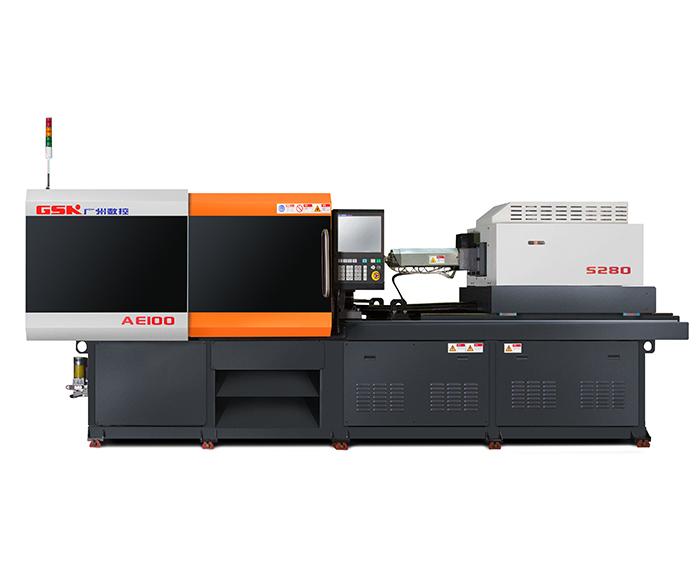

GSK AE100 Full Electric Injection Molding Machine



AE Series Full Electric Injection Molding Machine is absolutely Researched and Developed by GSK CNC EQUIPMENT CO., LTD, which is the technology essence for devoting the mechanical design and servo control for many years. It owns the advantages, such as the precision, high-speed, energy-saving and environmental protection, etc., which can be widely used in the electron & communication, optics, medical treatment, food and consumable goods, etc. The core components, for example, mechanical body, controllable system, servo motor, drive and big loading ball screw, are absolutely researched and developed by GSK, so that the AE series full electric injection molding machine can be provided the strong guarantee for forming your product, as well met your characteristic requirements.



Mold-clamping unit







Injection unit









GSK 6000 controller





Realize the green energy-saving of GSK servo system



Energy-Saving

AE Series Full-Electric Injection Molding Machine can be saved up to 70% electric energy compared with the traditional ratio pump hydraulic vone regardless of the oil cooling simultaneously; up to 90% water resource can be saved accordingly.





Green & Environmental-Protection

1.It drives by servo motor regardless of the pollution issue for the environment by the hydraulic oil; it also provides cleaning production surroundings for the customers.

2.The accuracy lubrication that can be performed by tin filling grease pump matches with the qualification metering; the machine can be held cleaning in a large extent.

Type			AE100
Injection&plasticizing unit	Shoot machine model		S250			S280			S320
	The screw diameter	mm	25	28	32	28	32	36	32	36	40
	The theory of injection capacity	cm3	54	67	88	77	100	127	121	153	188
	Theory of injection weight(PS)	g	51	64	84	73	95	121	115	146	179
	The maximum injection pressure	Mpa	277	221	169	287	220	173	272	215	174
	The maximum pressure maintaining pressure	Mpa	220	176	135	230	176	138	218	172	140
	The injection rate	cm3/s	167	209	273	185	240	305	241	305	377
	The largest injection speed	mm/s	340			300			300
	The injection stroke	mm	110			125			150
	The screw rotation speed	rpm	0-350			0-350			0-350
	Nozzle outstanding amount	mm	35 (70)			35 (70)			35 (70)
	Plasticizing capacity(PS)	Kg/h	27	36	52	41	61	84	59	78	106
	Nozzle contact force	kN	12
	The temperature control section number		5
	Total heating power	kw	4.7	5.6	6.2	5.6	6.8	7.7	8	8.9	10.4
Clamping unit	Clamping way
	Clamping force	ton	100
	Drive travel	mm	350
	The minimum thickness of the mould	mm	200
	The biggest mould thickness	mm	410
	Elder brother Lin Zhu spacing (length X height)	mm	460X410
	Minimum mould size (length X height)	mm	325X325
	Ejecting force	kN	25
	Ejection stroke	mm	100
	Number of thimble		5
Other information	Overall dimensions (length X width X height)	m	4.85X1.28X2.24
	Machine weight	t	5.3			5.4			5.5

 Medical Industry

DNA detection tube, medical plug-in, hearing-aid……



Electron& Communication

Connector, mobile phone shell, computer frame……



Optical Industry

Mobile phone lens, light guide plate …



Food Industry

Container, bottle cap for fresh-keeping……
