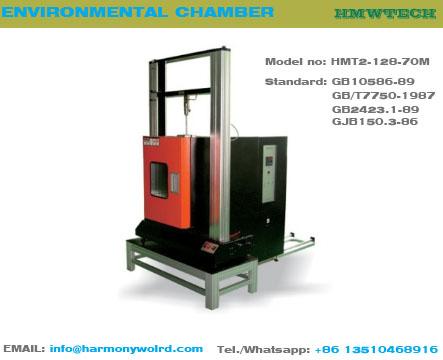

High & Low temperature damp and heat alternating tensile tester

Model:	HMT2-128-70M
Brand:	HarmonyWOLRD
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Test Bench
Label:	Weathering Test , Environmental Test , Temperature Chambers
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

DESCRIPTION:

Purpose

The machine is specially improved for environmental testing.The tensile machine is equipped with a high and low temperature test box，which can test tensile, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance in different temperature environments. When using the room temperature test, the high temperature box can be removed to increase the use of space and convenience.

Software functions

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and

PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.

SPECIFICATION

Capacity	10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN ( can select double capacities reparation)
Temp. Range	40℃~200℃ (can require to make a higher temperature)
Display	Computer display mode
Force Resolution	1/250,000
Force Accuracy	≤±0.5%
Stroke Resolution	0.005mm
Control Mode	All computerized operation mode
Temp. Control	PID automatic calculation, stable error
Display Accuracy	0.1℃
Temp. Accuracy	±1℃
Circulation System	Fan force circulation system
Heating System	SUS304 stainless steel heat radiation type of heater
Protection Device	Leakage and overload protector
Chamber Material	Inner box: SUS#304 stainless steel, outer box: advanced powder processing
Test Stroke	300mm
Chamber Dimension	40×40×80cm(W×D×HP)
Test Speed	0.5~500mm/min, set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension	85×160×220cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	2KW
Machine Weight	Approx 220kg
Power Supply	220V 50/60HZ 30A
Standard Device	Extension pole of grips, heat abstractor, 1 set of grips, computer software, USB computer connection wires
Optional	Personal computer
