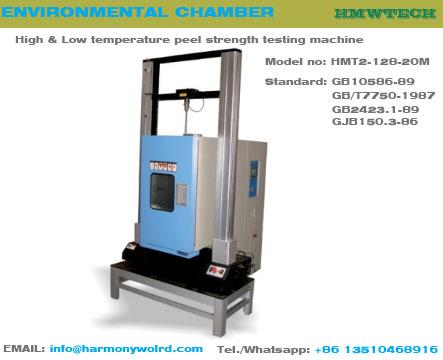

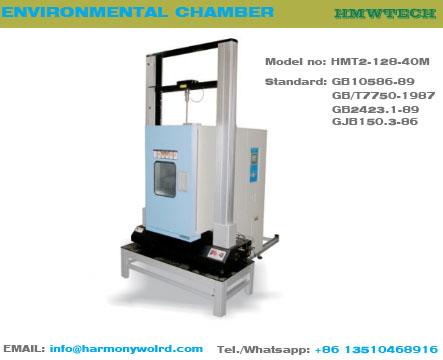

High & Low temperature peel strength testing machine

High & Low temperature peel strength testing machine
Model:HMT2-128-20M
Brand:HarmonyWOLRD
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Test Bench
Label:Weathering Test , Environmental Test , Temperature Chambers
Price: -
Min. Order:1 pc
Inquire Now

Product Description

DESCRIPTION



Use

The machine is specially improved for environmental testing.The tensile machine is equipped with a high and low temperature test boxwhich can test tensile, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance in different temperature environments. When using the room temperature test, the high temperature box can be removed to increase the use of space and convenience.


Software function

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.

Standards compliant

GB10586-89,GB/T7750-1987,GB2423.1-89,GJB150.3-86



SPECIFICATION



Capacity 10N20N50N100N200N500N1KN2KN5KN10KNOptional dual capacity configuration
Temperature range 0-20-40-60-70150
Display Computer display mode
Force Resolution 1/500,000
Force Accuracy 0.3%
Stroke Resolution 1/500,000
Control Mode All computer operation mode of tensile machine
Temperature control PID automatic calculation, stable error
Display accuracy 0.1
Temperature accuracy ±1
Circulation System Fan force circulation system
Heating System SUS304 stainless steel heat radiation type of heater
Cooling System Fan cooling type, high-efficiency compressor, environmental protection cooling medium
Protection Device Leakage and overload protector, compressor over protector, humidifier temperature protection, temperature limit protection device
Chamber Material SUS#304 stainless steel
Test Stroke 1300mmStand-alone operation of the tensile machine after the test box is removed
Test Width 720mmStand-alone operation of the tensile machine after the test box is removed
Chamber Dimension 40×40×80cm(W×D×H)
Test Speed 0.01500mm/min set by computer, with up & down fast adjustment button of grips
Force Unit Switch kgfNIbfgtonMpa
Stop Mode Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension 130×230×280cm(W×D×H)
Machine Drive Servo motor drive, synchronous wheel and precision ball screw drive
Power 400W
Machine Weight About 420kg
Power Supply 220V 50/60HZ 30A
Standard configuration Clamp extension rod, heat sink, 1 set of fixture, computer software, USB computer connection
Optional Personal computer
