Part Number: GPSGN/LTE006

Dielectric Antenna Specification

Size

25×25×4mm

Frequency Range

1575-1610MHZ

Center Frequency

1590MHZ+/-3MHz

(GPS:1575.42Hz, GLONASS:1602MHz)

V.S.W.R

≤1.5

Attenuation

fo±100MHz＞30dB

Impedance

50 ohm

Peak Gain

＞3dBic, Based on 7×7cm ground plane

Gain Coverage

＞-4dBic at –90°＜0＜+90°(over 75% Volume)

Polarization

Right-handed Circular (RHCP)

LNA Specifications

LNA Gain

(Without cable)

28dB Typical

Noise Figure

1.5dB

V.S.W.R

≤1.65

DC Voltage

2.7V-5.0V±0.5V

DC current

15mA   Max (5V DC)

LTE 4G Specifications

Frequency Range

698-960/1710-2700MHz

V.S.W.R

≤2.5

Gain

2.5dBi

Polarization

Vertical

Radiation

Omni directional

Max Input Power(W)

20

Impedance

50 ohm

Mechanical Specifications

Weight

＜300g

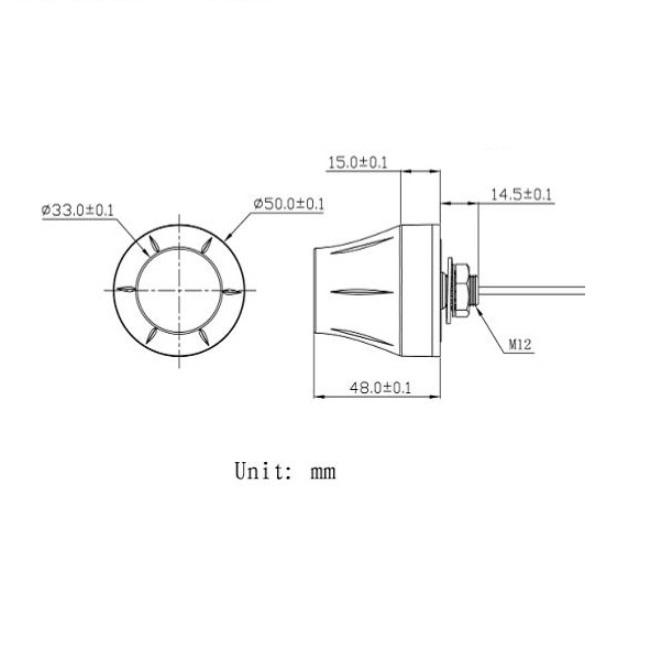

Size

Ø50×48mm

Cable

GPS GN: 4m RG174 cable

LTE 4G: 4m RG174 cable

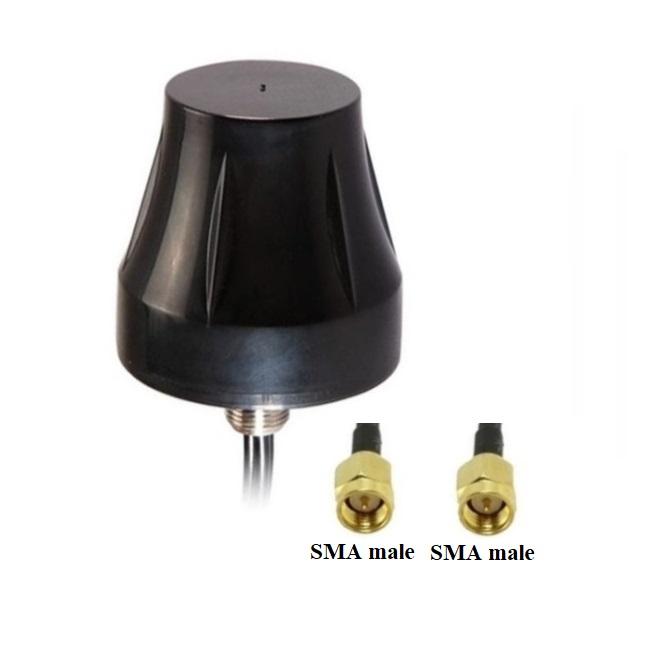

Connector

GPS GN: SMA male straight

LTE 4G: SMA male straight

Other Cable

RF1.13, RG178, RG316, LMR100 or other

Other Cable Length

50cm, 100cm, 200cm, 300cm or others

Other Connector

IPEX, FME, FAKRA, MMCX, MCX, BNC, TNC or others

Mounting

Screw mount (M12)

Housing

Black ABS

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

Waterproof

IP67
