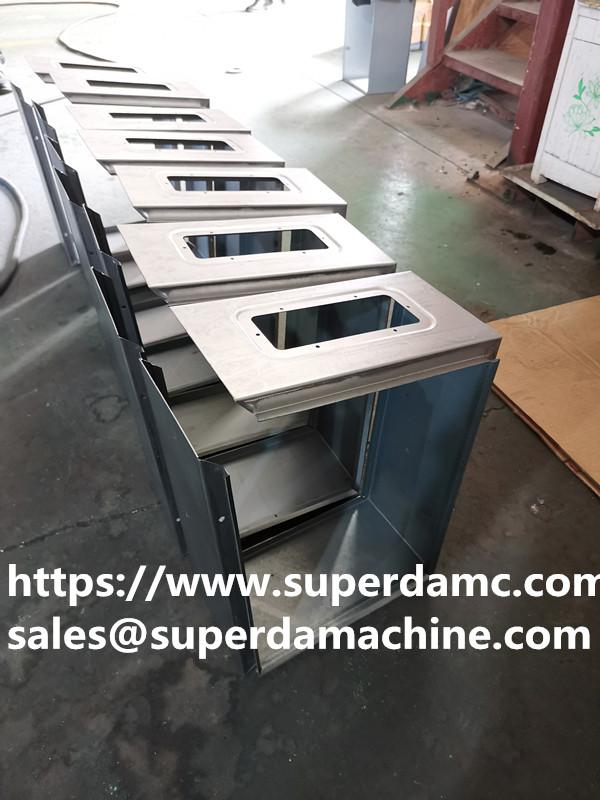

Export Electrical Box Machine & Distribution Board Enclosure Machine For 150-350mm Different Depth, Electrical Boxes Length and Width 300-1200mm.

https://www.superdamc.com

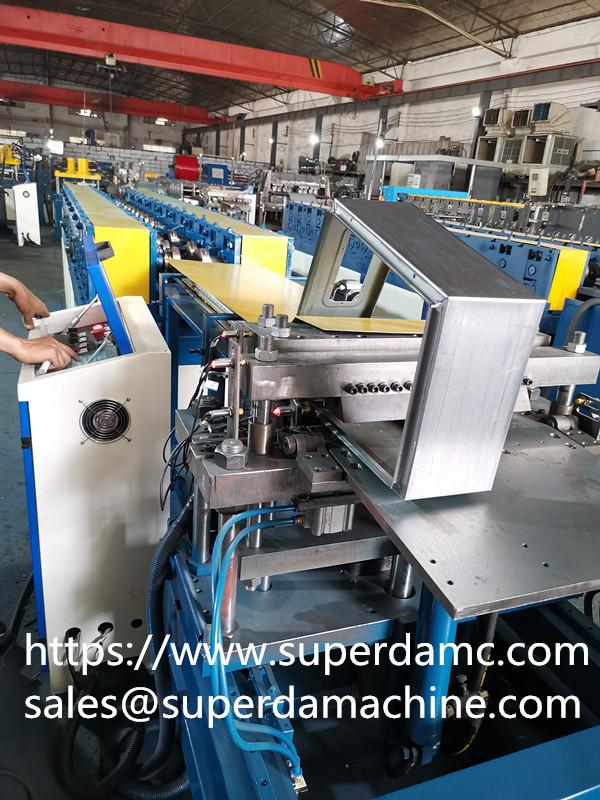

Electrical distribution board roll forming machine production line process



Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device

Distribution box production line technology explaination

This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications



2. Forming mainframe: The mainframe base of this production line is welded with 100 * 100 * 3MM square tubes, the frame is integrated with a fixed archway, the side plates are made of 25mm steel plates, and the supporting parts are made of high-quality Taiwan bearings. Twisting up and down adjustment, the host has good rigidity and stable structure.

B: Roller (roller staiton): 16 sets of roller forming, high-quality Gr12 mold steel, HRC up to 58 ~ 60º are processed by precision CNC machine tools, precision is 6 ~ 7, surface roughness is above 0.8, no scratches on the surface.



Egypt Electrical Box Machine main technical parameters

1.Details of accessory brand

No.	Name	manufacturer
1	Encoder	Omron
2	Touch Screen	Wienview
3	Programmable controller (PLC)	Mitsubishi
4	Low-voltage circuit breaker	Chint
5	AC contactor	Chint
6	Inverter	Mitsubishi
7	Hydraulic Solenoid Valve	Shun Xin, Taiwan
8	Guide rail	Hiwin Taiwan
9	Server System	Mitsubishi



4, forming ability

a. Outside diameter of coil: Φ1250mm (Max.)

b. Material forming thickness: 1.0-1.5mm

c. Product width 160mm-400mm adjustable

5.Speed parameters of forming unit

a. Linear speed 0-13m / min

b. Acceleration time ＜ 30 seconds

6, Forming accuracy

a. Shear length tolerance: ≤ ± 0.5mm / m

b. Width tolerance: ≤ ± 0.5mm

c. Sickle curve: ≤2mm / m

d. Burr: ≤0.1mm (new blade cutting ordinary carbon steel plate with reasonable clearance)

e. Height tolerance: ≤ ± 0.5mm

The above tolerances are based on the first-grade steel coils with flat and edgeless waves.

7.Other equipment parameters

a. Power supply: 380V / 50HZ / 3PH (Or Custmized)

b. Installed capacity: about 32Kw

c. Forming speed: 0-13m / min

d. Cutting method: forming then cutting

e. Driving motor:

Straightener machine motor 2.2KW

Hydraulic punching 15kw,bending and cutting 5.5KW

Forming host motor 7.5KW

Servo motor 2KW

f. Floor area (approximately): length 30m × width 3m

(Roll Forming 7mX1.5m)

g. Production line direction: from left to right

(facing the unit from the operation table).

h. Equipment color: (Customer choice)

i. Unit equipment design can meet 12 hours of continuous production

j. Operating environment:

1: power supply voltage: 380V ± 10% / three-phase four-wire, frequency: 50HZ total power: about 32KW

2: Ambient temperature: 0-40 ° C, relative humidity: 60-95% RH.
