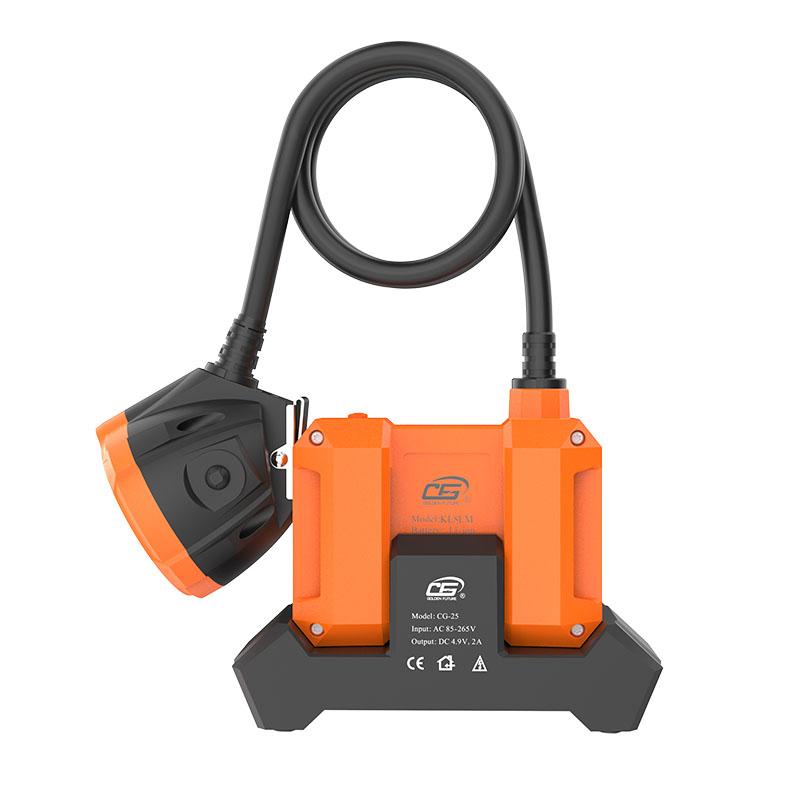

KL8LM 25000Lux digital corded mining cap lamp rechargeable mine lamp is a digital corded miner cap lamp. There are 3 kinds of lighting mode:main LED(more than 25000Lux), auxiliary LED and laser pointer. And the GF Brand logo on the battery box can light on as indication for charging and rear safety. The OLED display can show time,date battery balance,lamp series number,working model and charging status; It is widely suitable to be used in mining,construction site,emergency rescue and other outdoor activities.
| Parameters |
Value |
Unit |
| Light source |
LED Power |
3 |
W |
| Lighting degree |
25000 |
Lux |
| Life time |
100,000 |
hour |
| Li-ion battery |
Rated capability |
7.8 |
Ah |
| Rated voltage |
4.9 |
V |
| Life time |
1000 |
circle |
| Charger |
input voltage |
AC100-240 |
V |
| output voltage |
DC5.2 |
V |
| output current |
1.5 |
A |
| Lighting time |
Main light |
>15 |
hours |
| Auxilliary light |
60 |
hours |
| Dimension |
headlamp |
Dia.76*75 |
mm |
| battery box |
112*51*85 |
mm |
| charger |
155*64*71 |
mm |
| Lighting distance |
200 |
m |
| Working temperature |
-20~40 |
°C |
| Highest surface temperature |
<45 |
°C |
| Weight (with battery) |
550 |
g |
| IP Class |
IP68 |
| Ex-mark |
I M1 Ex ia T5 Ga |
