API 16C fig1502 chicksan swivel joints repair kits
| Model: | 2 inch |
|---|---|
| Brand: | SPM/FMC |
| Origin: | - |
| Category: | Industrial Supplies / Machine Hardware / Other Machine Hardware |
| Label: | swivel joint kit , swivel joint repair |
| Price: |
US $28
/ pc
|
| Min. Order: | 1 pc |
Product Description
JinGao Petro API 16C fig1502 chicksan swivel joints repair kits

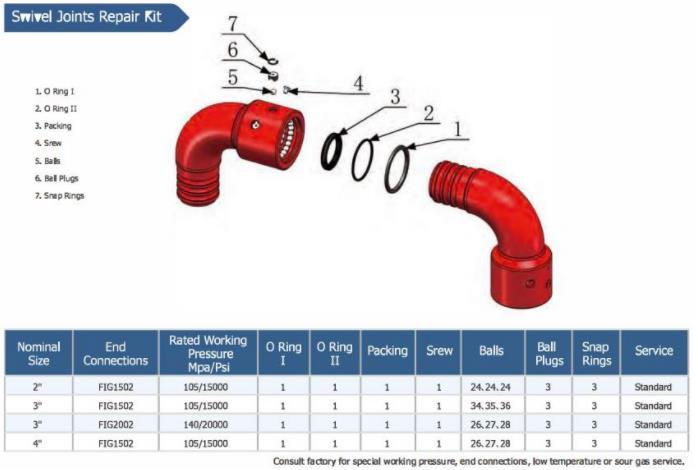

Includes grease retainer, O rings, packing, internal circlip, ball stopper, steel ball, oil plug and etc..Used in swivel Joint,can interchangable with SPM/FMC Brand
Product Description
Swivel joint Type
|
Description |
Specification |
Model |
End Connection |
|
Short radius swivel joints |
1''x3500psi(25Mpa) 1"-1/2x6000psi(42Mpa) 1"-1/2x10000psi(70Mpa) 2"x6000psi(42Mpa) 2"x10000psi(70Mpa) |
Style 10,50 Style 10,50 Style 10,50 Style 10,50 Style 10,50 |
LP Female Thread LP Female Thread LP Female Thread
|
|
1-1/2"Long radius swivel joints |
1"-1/2x10000psi(70Mpa) 1"-1/2x10000psi(70Mpa) |
Style 10 Style 50 |
LP Female LP Female |
|
2"Long radius swivel joints |
2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x15000psi(105Mpa) 2"x15000psi(105Mpa) 2"x20000psi(140Mpa) |
Style 10,20,50 Style 10,50 Style 10,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 |
LP or TBG Female MxF(Tr100x12.7) MxF(Tr100x12) MxF,MxM,FxF MxF(Tr/America) MxM MxF,MxM,FxF MxF(Tr/America)MxM MxF,MxM |
|
3"Long radius swivel joints |
3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x15000psi(105Mpa) 3"x15000psi(105Mpa) 3"x20000psi(140Mpa) |
Style 20,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 |
Lp or TBG Female MxF,MxM,FxF MxF(Tr,America) MxM MxF,MxM,FxF MxF,MxM MxF,MxM |
|
4"Long radius swivel joints |
4"x6000psi(42Mpa) 4"10000psi(70Mpa) |
Style 10,50 Style 10,50 |
MxF,MxM,FxF MxF,MxM,FxF |
The SPM Swivel joint Repair kits for the below models and part numbers:
2″ 1502 Swivel Kits
Parts Kit Standard 4L17126
Parts Kit H2S 4L17193
Ball Kit Standard 4L17131
Ball Kit H2S 4L17196
Ball Plug Kit Standard 4L17136
Ball Plug Kit H2S 4L17195
Seal Kit Standard 4L17130
Seal Kit H2S 4L17194
3″ 1502 Swivel Kits
Parts Kit Standard 4L17660
Parts Kit H2S 4L17305
Ball Kit Standard 4L17303
Ball Kit H2S 4L17308
Ball Plug Kit Standard 4L17136
Seal Kit Standard 4L17265
Seal Kit H2S 4L17307
4″ 602 Swivel Kits
Parts Kit Standard 4L17267
Seal Kit Standard 4L17268
Ball Plug Kit Standard 4L17269
4″ 1002 Swivel Kits
Parts Kit Standard 4L17721
4″ 1502 Swivel Kits
Parts Kit Standard 4L17785
