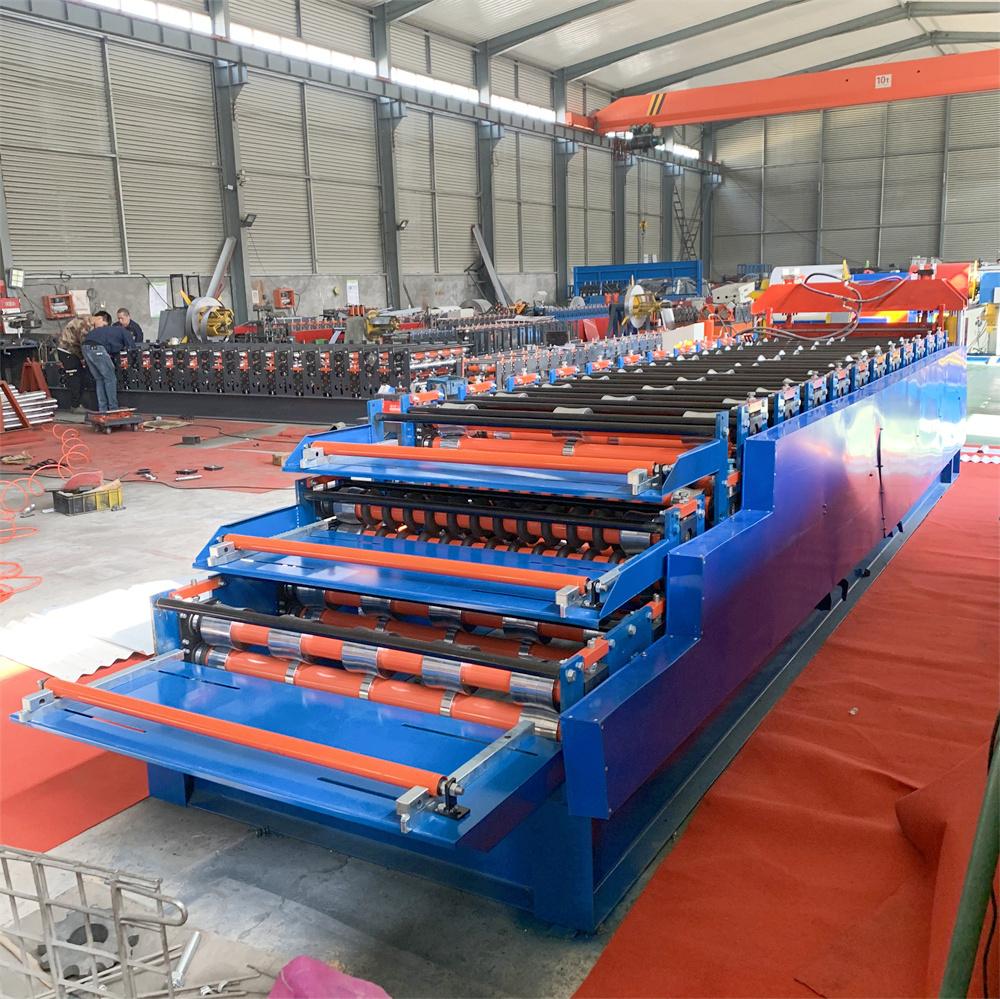

Roof Tile Roofing Sheet Making Machine Three layers Roll Forming Machine

Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.



When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!



Working Process :
Decoiler—Roll Forming Machine——Hydraulic Press——Hydraulic cutter——Control System——Receiving table

Noted: There are two types of roll forming machines: standard type and customized type. If you need to customize, please send us the design drawing,feeding width, thickness and raw materials, so that we can customize according to your requirements, which is very important for us!!!

Product Specification

No	Item	Data
1	Raw material width	1000-1200 mm
2	Sheet effective width	750-1000 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	70 mm
7	Forming roll station	8-16 steps
8	Main motor power	3 KW  4 KW  5.5 KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

Our Advantages

Feature of Corrugated Metal Steel Roofing Sheet Making Machine:

1.Our machine can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2.Controlling by computer PLC display, operate is easy. Running is steady and reliable,endurable maintenance-free.

3.The three-layer machine can produce three different types of roof panels, reducing the footprint and cost.

4.We can make and design will kinds of roll forming machine according to customer’s request.

Cutting Blade Of Roll Forming Machine

The cutting blade is controlled by the control system to set a fixed length parameter for cutting, so as to obtain the desired length. The blade is made of high-quality materials, has a long life, is very durable, sharp, and fast cutting speed.

Feed Table Of Roll Forming Machine



Raw materials are conveyed to the roll forming machine through the feeding table for pressing, so as to obtain the shape we want. This part is equipped with a leveling device to facilitate the raw materials to enter the machine in a flat form, making the product better formed.

Finished Product Of Roll Forming Machine

The roof sheet roll forming machine can produce 3 different shapes of roof tiles, The roof machine can produce 3 different shapes of roof tiles, 3 in 1 machine, saving space occupation. This figure shows the finished effect of the machine. The quality and shape are shown in the figure.

Machine Details

Decoiler of Corrugated Metal Steel Roofing Sheet Making Machine

Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.

This loading frame decoiler also can use in other type machine, customer can buy it alone.

Machine frame of Corrugated Metal Steel Roofing Sheet Making Machine

Roof sheet make machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable



AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Forming Roller of Corrugated Metal Steel Roofing Sheet Making Machine

Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers



Roller chrome coated thickness: 0.05 mm

Roller material: Forging Steel 45# heat treatment.

Control Part of Corrugated Metal Steel Roofing Sheet Making Machine

The control components of the roof slab making machine have different types. The standard types are all button controlled, and different functions are realized by pressing keys.

It adopts independent control cabinet, which can move in different places without affecting the operation.

Machine accessories

Related Raw Materials of Corrugated Metal Steel Roofing Sheet Making Machine We can provide different steel coil raw materials, such as color steel coil, galvanized coil, etc., which are cheap. The price of materials purchased by us is lower than that purchased by you, and they are transported with the machine for your convenience.

When the machine has parts aging due to long service , don't worry about it. Some accessories for you, you
could buy the same one locally and quikly！！！
