Dimensions: 18.5 inches, 21.5 inches, 23.6 inches
1.1 Product Introduction:

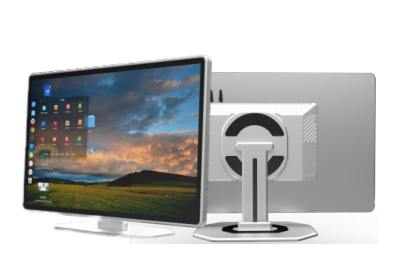

The fully enclosed industrial touch integrated machine/display is a new type of human-computer interaction device developed for industrial manufacturing. The touch screen used has many advantages, such as durability, fast response speed, space saving, and easy communication. Users can quickly obtain the information they want by gently touching the machine screen with their fingers, thereby achieving the collection and control of various data devices.
1.2 Functional features:
1. Appearance: Fully enclosed aluminum alloy structure, silent thermal conductivity, efficient heat dissipation; Front covered with tempered glass, supporting IP65 waterproof;
2. Touch: Projective 10 point capacitive touch, millisecond response, stable without drift;
3. Display: A brand new LED A-standard LCD screen with high-definition resolution, brightness of ≥ 250cd/m ², and delicate colors;
4. System: Compatible with touch displays, Android touch all-in-one machines, and computer touch all-in-one machines;
5. Performance: Each complete machine has undergone oven aging, temperature and humidity testing, static electricity, vibration, touch clicking, display and other inspections to ensure stable quality;
6. Material and process: The private die cast all aluminum integrated back cover makes the whole machine lighter, thinner, more beautiful, and more sturdy. The body adopts high-temperature baking paint technology, which is corrosion-resistant and antioxidant;
7. Optional interfaces: multiple network ports, multiple USB ports, multiple serial ports (TTL, 232, 485), GPIO, LPT, etc;
8. Support customization: Customizable appearance, color, logo, camera, card reader, printer, fingerprint recognition, QR code, etc;
9. Installation method: Supports multiple installation methods such as wall mounted, embedded, desktop bracket, etc., with self start upon power on, convenient and efficient;
2.1 Equipment parameters:
Type: LED A-scale LCD screen
Visual angle: 85 °/85 °/80 °/80 ° (L/R/U/D)
Brightness: 300cd/m2 (customizable high brightness)
Contrast: 1000:1, total color count 16.7M
Refresh rate: 60Hz, response time 2ms
Touch screen: touch type, capacitive touch, touch points, multiple touch points
Touch resolution: 4096 * 4096, reaction time 5ms
Computer response: The system automatically recognizes a lifespan of over 60 million clicks
Hardness: Moxi 7-level explosion-proof tempered glass

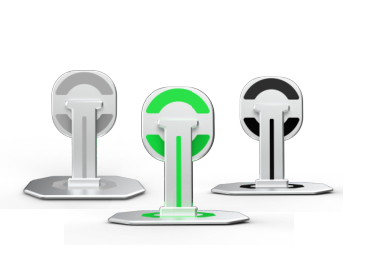

Installation method: desktop style
Shell: The body is made of fully enclosed aluminum alloy technology, which has good compressive and impact resistance
Working power input power supply: AC 100V~240V 50/60Hz
Output power supply: DC 12V 5A
Power consumption for Android: ＜ 3W Touch screen power consumption ＜ 3W
Computer power consumption: ＜ 5W standby power consumption ＜ 0.5W
Horn power: 5 Ω 3W
Android solution
Optional PC solution
