15EDGKD PCB Plug and socket terminal block 2.5mm 15EDGRH 2EDGVH

Model:	15EDGKD
Brand:	AOSI
Origin:	Made In China
Category:	Electronics & Electricity / Other Electrical & Electronic
Label:	15EDGKD , Plug and socket , 2.5mm
Price:	¥0.01 / pc
Min. Order:	100 pc

Inquire Now

Product Description

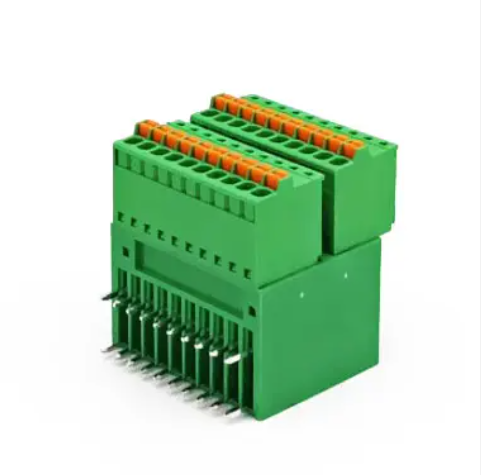

NAME:PCB Spring Terminal Block
MODEL:15EDGKD

Electrical:
Rated voltage: 300V-250V
Rated current: 10A-15A
Wire range: Can be 1-30AWG
Withstanding voltage: AC2000V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 10mm
Pitch：2.5mm
Poles：1P-XXP
Housing：PA66+5%GF.,UL94V-0
Pin header：Brass,Tin plated
Wire guard：Stainless steel
