Advantage:

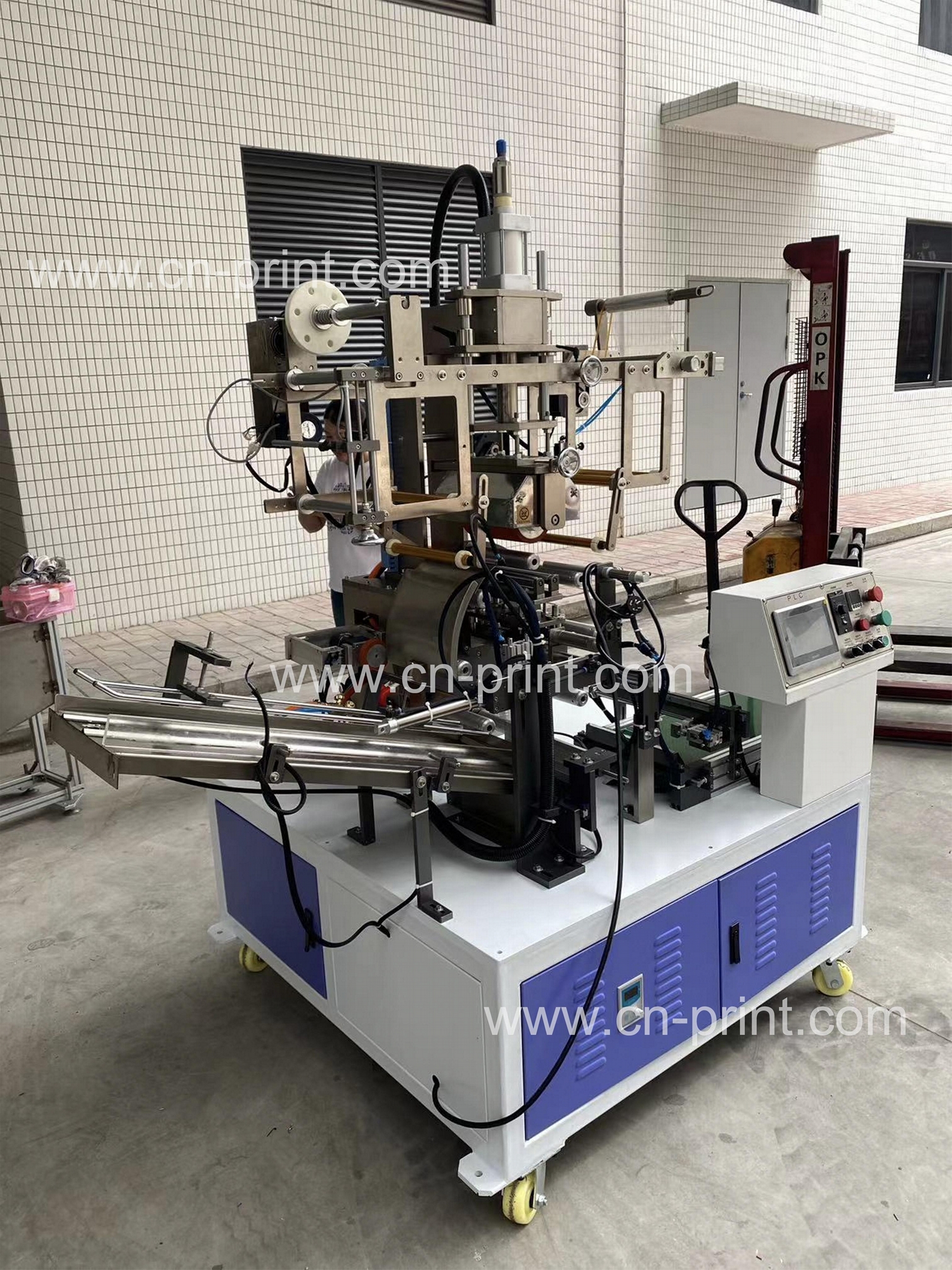

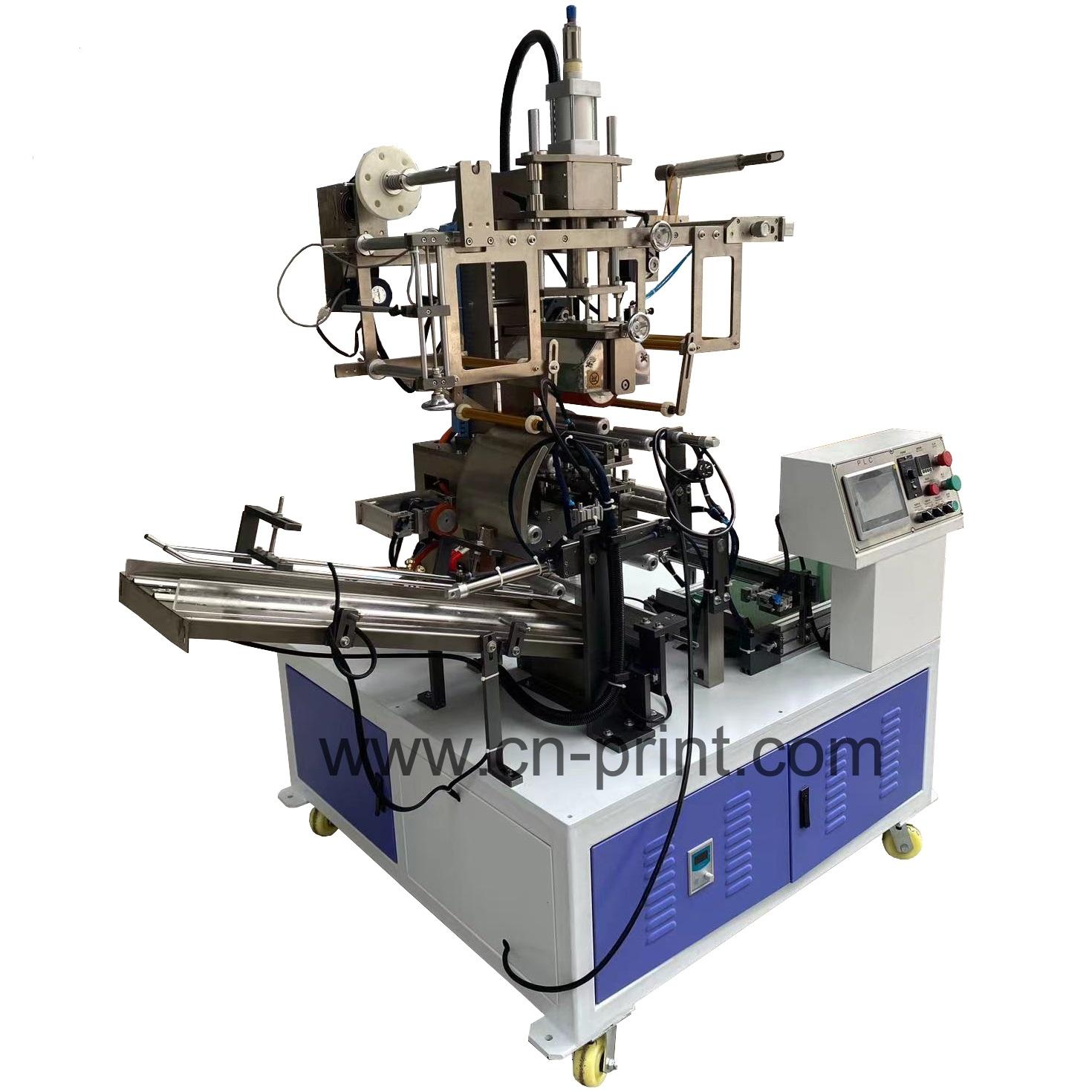

LC-THA-100/8  Hose heat transfer machine, This is an 8-station automatic lipstick tube transfer machine,Automatic feeding, automatic transfer, 8 lipstick tubes at a time. Maximum diameter 100mm.Fully computer controlled，High precision, easy operation, stable speed, with heating function,  suitable for Lipstick tube, plastic tube, etc

Product Description:

(1) Computer control, man-machine interface is easy to operate
(2) Hot stamping pressure, temperature, speed can be adjusted
(3) Built-in self-counting, automatic positioning
(4) Automatic foil feeding, foil collection and adjustable, no foil shutdown
(5) The height of the stamping head can be adjusted, and the range is large
(6) Using lifting conveyor belt feeding, automatic product
(7) The front and rear conveyor belts are 1 meter each
(8) The machine contains flame processing

Equipment parameters:

1. Maximum hot printing diameter: 20 MM-100 MM
2. Maximum printing length: 250 MM
3. Stamping head stroke: 80MM (adjustable 50MM)
4. Stamping temperature: room temperature 0℃ ~ 300℃
5. Maximum workpiece diameter: 80MM
6. Maximum hot stamping speed: 20 PCS/min
7. Rated voltage: 220v60/50HZ
8. Stamping pressure range: 250-350KG
9. Machine power: 4000W
10. Heating power: 2000W
11. Gas pressure: 5-7bar
12. Machine size: 1600*1400*2000MM(excluding conveyor belt)
12. Machine weight: 800KG
