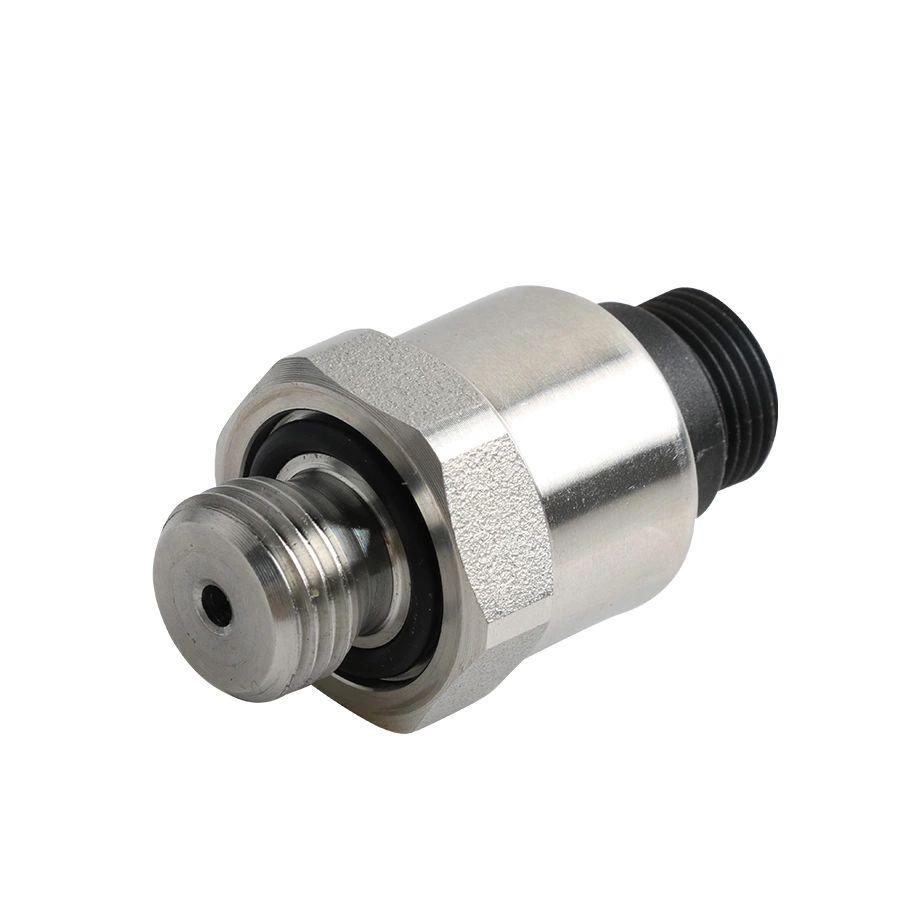

SUP-P300T Cost-effective pressure transducer with ceramic sensor

Model:	SUP-P300T
Brand:	Supmea
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Electricity Meter & Instrument
Label:	-
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids

Characteristics

Pressure ranges from -100K Pa to 1600KPa / -100K Pa to 1000KPa

Available output signals include 4…20mA, 0.5…4.5V

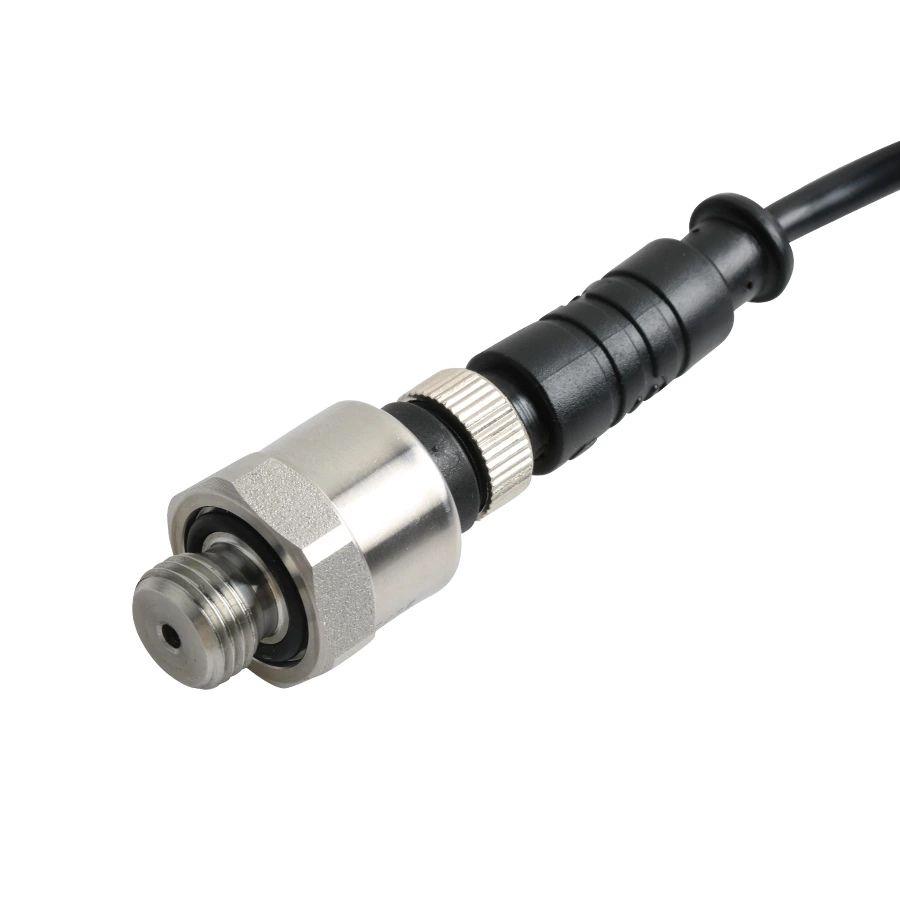

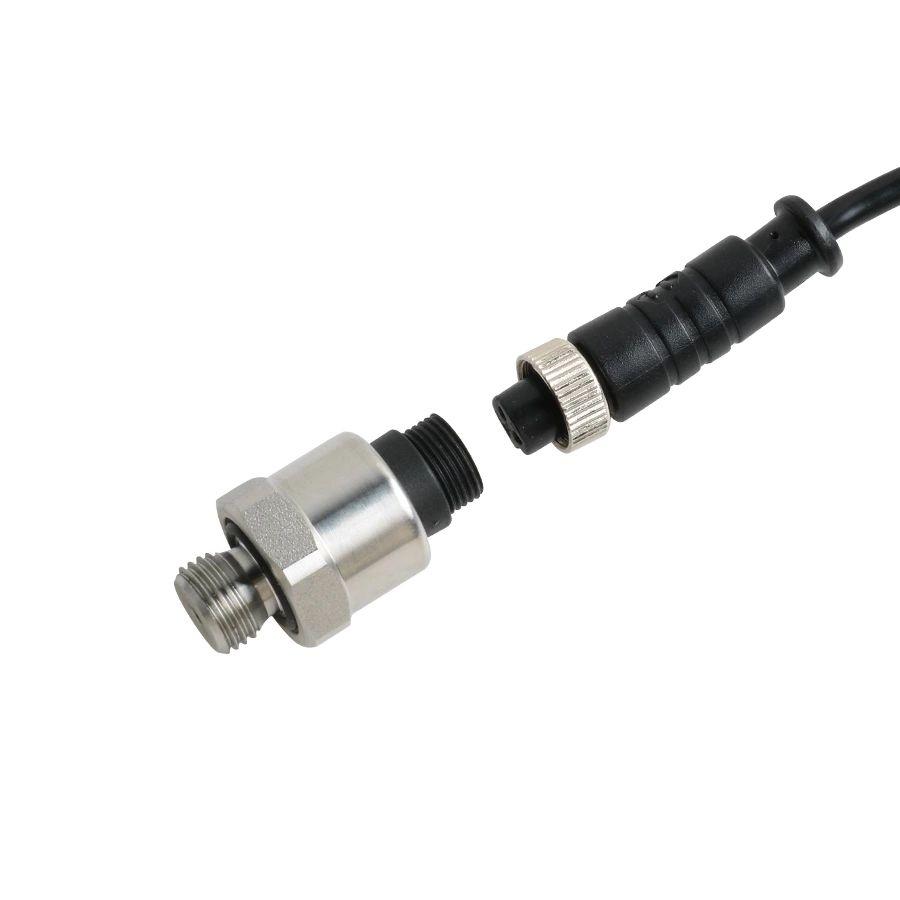

Electrical connections: M12x15-pin, Cable type

Process connections: G¼, R¼, G⅜

Applications

Hydraulics and pneumatics

Pumps and compressors

Machine controls

Measuring principle

Gauge pressure

Specification

Power supply	5 or 24V DC
Accuracy	±1.0 %
Ambient temperature	-40 °C… +125 °C
Process temperature	-20 °C… +120 °C
Pressure range	-100KPa…+1600 Kpa / -100KPa…+1000 Kpa
Process connection	Threads: G¼, R¼, G⅜
Communication	4...20 mA / 0.5…4.5V
Response time	10 ms
Ingress Protection	IP65

The pressure transmitter is designed to meet the pressure measurement requirements in many industrial and commercial applications.

Is available in a large number of configurations to meet many application requirements. Options include many available process and electrical connections as well as all industry standard pressure ranges and output signals.

Can be private labeled with customer logo and model number if required.
