25dBi high gain omni directionalal magnetic mount gsm 3g LTE 4g car antenna

Model:	LTE4G018-SMA
Brand:	wiselink
Origin:	Made In China
Category:	Electronics & Electricity / Antenna
Label:	3g 4g lte antenna , 4g lte gain antenna , magnetic 4g antenna
Price:	US $9.5 / pc
Min. Order:	10 pc

Product Description

GSM 3G 4G LTE Antenna Specifications:

Part Number: LTE4G018-SMA
4G LTE Antenna Specification
Frequency Range	698-960/1710-2700MHz
V.S.W.R	≤2.5
Gain	25.0dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Mechanical Specifications

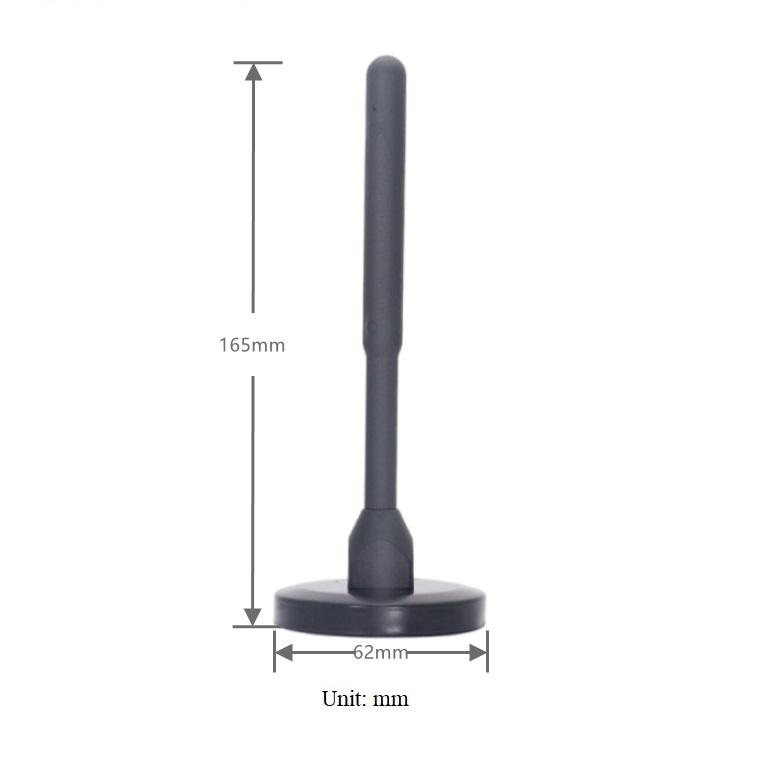

Size	Φ62×165mm
Weight	＜250g
Cable	3m RG58 cable
Connector	SMA male straight
Other Cable	RG174, RG316, LMR200 or others
Other Cable Length	50cm, 100cm, 250cm, 4m, 5m or others
Other Connector	SMB, FME, FAKRA, MMCX, MCX, BNC, TNC or others
Mounting	Magnetic or adhesive
Housing	Black ABS
Environmental Specification
Working Temp	-40℃~+85℃
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
Waterproof	100% waterproof
