AT-10A

10-inch 1000 nits touch screen; rich interfaces; Octa-core 1.8GHz processor, Adreno 506 GPU, etc.

Feature

High Brightness Screen

With 1000 nits high brightness screen, readable in the sunlight environments.

Real-time Communication

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.



High-precision Positioning

The built-in optional professional high-precision RTK module can achieve ±2.5cm accurate positioning, which makes the tablet perform well in precision agriculture.

Mobile Device Management

Integrated with MDM software, which is convenient for users to control the equipment status in real time and carry out remote control and management.

Rich Interfaces

With video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices.

ISO 7637 -II

Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.

Specification

System
CPU	Qualcomm Cortex-A53 64-bit Octa-core Processor,   1.8GHz
GPU	Adreno 506 Support OpenGL ES3.1
Operating System	Android 9.0
RAM	2 GB LPDDR3(Default)/4GB(Optional)
Storage	16 GB eMMC(Default)/64GB(Optional)
Storage Expansion	Support Micro SD up to 512 GB

Communication
Bluetooth	4.2BLE
WLAN	IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz
Mobile Broadband	LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
GNSS	Standalone: 2.5m CEP
	RTK(Optional): 2.5 cm+1 ppm Horizontally; 2.5 cm+1 ppm Vertically
Radio(UHF)	Optional

Functional Module
LCD	10.1 inch HD (1280 × 800), 1000nits brightness, Sunlight readable
Touchscreen	Multi touch capacitive touchscreen(Wet mode and glove mode are customizable.)
Sound	Build-in speaker 2W,8Ω  90dB
	Internal Microphones
Interfaces	Type-C, Compliant with USB 3.0, (For data transfer; support OTG)
	USB (TYPE-A)
	Headset jack ×1
Sensors	Acceleration sensors, Ambient light sensor, Compass

Functional Module Environment
Vibration test	MIL-STD-810G
Dust resistance test	IP6x(IEC60529)
Water resistance test	IP6x & IPx7(IEC60529)
Operating temperature	-20° C ~ 65°C (-4℉~149℉)
Storage temperature	-20° C ~70° C (-22℉~158℉)

Interface
RS232	×2
RS485	×1
ACC (ignition)	×1
RJ45 (10/100)	×1
AHD input (optional)	×2(1080P)
CANBUS	CAN 2.0b×2
GPIO	Input×4, Output×4
Analog input	×1(Measure Voltage Range:0~30V)

Physical Characteristics
Power	DC8-36V (ISO 7637-II compliant)
Physical Dimensions(WxHxD)	273×183×49mm
Weight	1.6kg

Accessories

Torx Screwdriver & Screws

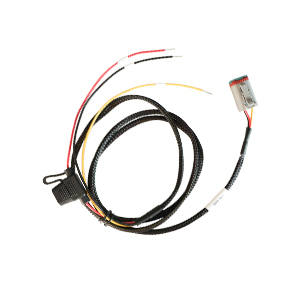

Power Cable

LTE Antenna
