Product introduction

GD series automatic ultrasonic non-woven packaging machine Packaging machine is a vertical, computer-controlled intermittent packaging machine developed by our company. According to customer needs, the sealing can be made into three side sealing or back sealing and other forms. It can automatically complete the whole process of bag making, measuring, filling, sealing, printing production date, easy to tear, cutting, counting and so on.

Scope of application

It is suitable for automatic packaging of loose, non-sticky and fine granular materials in medicine and chemical products, such as: activated carbon, charcoal, Chinese medicine particles, Chinese herbal powder, incense, spices, foot bath products, etc. Ultrasonic cold sealing non-woven packaging machine uses cold sealing for some packaging materials that can not be heat sealed smoothly and completely, the machine is designed in two rows, and the control hanging stop function is installed in the cutter. You can choose to cut off two bags at a time, and choose four bags at a time after hanging

Machine description

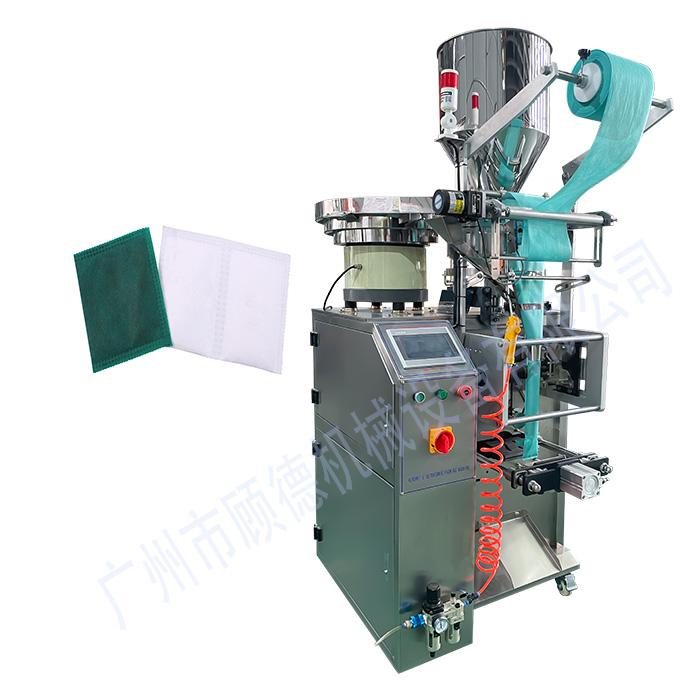

1, the machine is suitable for desiccant automatic packaging into bags, by loading hopper, distributor, automatic cold sealing cut part, control box combined as a whole, the appearance of the machine is roughly as shown in the picture, easy to operate, good quality, safe and durable.

2, Chinese display control system, just set the required parameters (filling amount bag length, etc.) in the displayable setting unit, the control system automatically optimizes and matches the action, so as to achieve the best packaging speed.

3, good electronic color code control system, automatically and accurately track the cursor on the packaging film, so that the bag can obtain a complete and beautiful icon.

4, in the cutting knife to install the control hanging function, you can choose to discharge two bags or multiple bags cut off, automatic packaging machine can automatically complete the packaging process of measuring, bag making, filling, sealing, cutting, counting, printing all the work.

5, stepper motor control, the system has high accuracy, no need to adjust other parts can change the bag length, and accurate.

6, the wrapping paper part adopts the self-weight motor paper feeding structure, the wrapping paper feeding length is doubled, and the bag is smooth and good.

7, the sealing form is ultrasonic cold sealing, suitable for non-woven packaging materials, sealing neatly perfect and firm.

8, after-sales service: equipment one-year warranty, lifetime benefit.

Fully automatic feature

1, stepless speed regulation: the packaging speed can be adjusted stepless within a certain range to achieve the best match with bag making, filling, sealing and cutting links, so that the packaging process is stable and reliable.

2, bag length can be arbitrarily set within the rated range, stepper motor drive, stable and reliable bag pulling, speed can be selected.

3, when the packaging film colored calibration mark, the bag making process can achieve photoelectric automatic detection, positioning, sealing, cutting off, to ensure the integrity of the bag making pattern.

4, with self-diagnosis, fault prompt function.

5, temperature control with high-precision PID adjustment, with excellent thermal sealing stability, to ensure the sealing quality of different materials.

6, easy operation and maintenance: intermittent structure is simple, easy to operate and maintain.

7, strong versatility: by replacing different filling heads can achieve the purpose of a multi-purpose machine.

8, automatic printing product batch number, can add easy to tear, easy to use.

9, a full set of high-quality devices, stable quality, low noise, low failure rate, long service life.

10, the machine is small and unique, beautiful appearance, all the devices in contact with the material are made of stainless steel and non-toxic and corrosion-resistant plastic, in line with the requirements of food and medical packaging (that is, GMP requirements). Especially suitable for food, pharmaceutical and chemical industries.
