Electric Hydraulic Operating Table

Model:	ECOH005A
Brand:	-
Origin:	Made In China
Category:	Industrial Supplies / Other Industrial Supplies
Label:	operating table , surgical table , medical table
Price:	US $2500 / pc
Min. Order:	1 pc

Inquire Now

Product Description

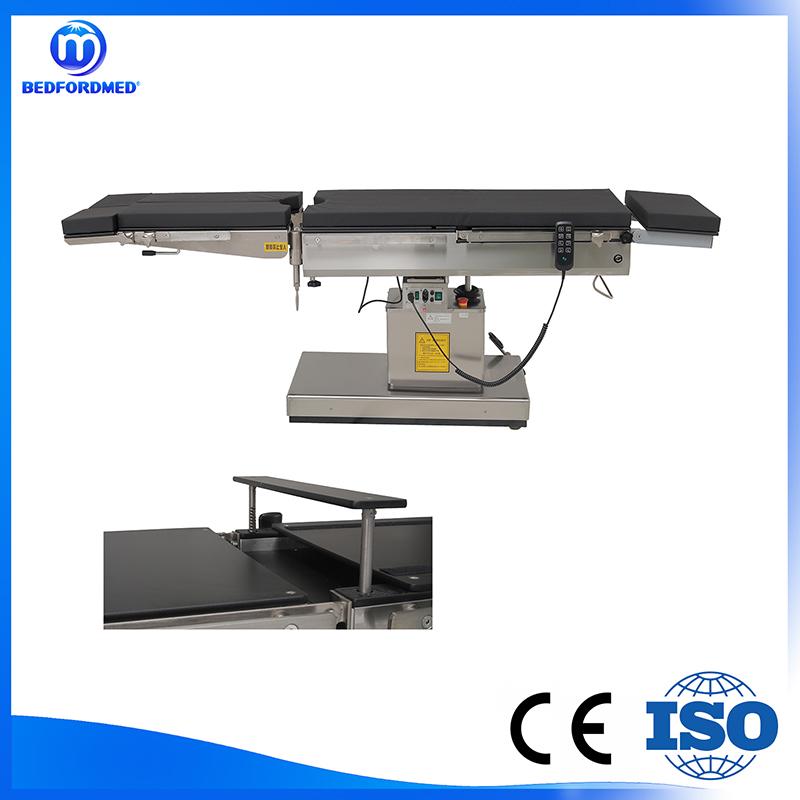

Medical Stainless Steel Electric Ophthalmic Operation Table with C-arm Fluoroscopy

ECOH005A Electric Operation Table is used for the various operating room of the hospital.

ECOH005A (10)

Advantages of ECOH005A Electric Operation Table:

1. The translational amount of the table top reaches 400mm. Installed C-arm fluoroscopy.

2, the head and leg plates can be disassembled, and can be equipped with orthopedic traction frame, head frame, etc. for lower limb orthopedic surgery and brain surgery.

3. Equipped with a built-in emergency power supply, the emergency power supply can automatically charge.

4. Air springs are used for folding back and leg plates.

5. The front of the table is tilted backward, left and right, up and down, and moved forward and backward.

6. All realized by motors and operated by buttons.

7. ECOH005A adopts 24V DC voltage, which is safe and reliable.

ECOH005A (3)

Specification Of ECOH005A Electric Operation Table:

Length:	2100mm	Width:	500 mm
Table height:	750 ~ 1000mm	Stroke:	≥ 250mm free to lift, lock
Forward tilt:	≥25°	backward tilt:	≥25°
Left and right tilt:	≥15°	head plate:	up ≥45°
head plate:	down ≥90°	back plate:	≥45°
Waist rise lifting:	≥80mm	Platform Horizontal movement:	≥400mm
Power:	AC 220V ± 10%, 50HZ	Safe working load:	≥135kg
Leg plate:	down ≥90°	Leg plate spilt:	≥90° detachable
Foot plate can be 90° on the leg plate and can be removed.

ECOH003C (17)

ECOH005A (7)

FAQ:

Q1 : Whats your MOQ ?

Our MOQ is one psc, welcome to trial order before our formal cooperation.

Q2:If your company support OEM ?

Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.

Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
