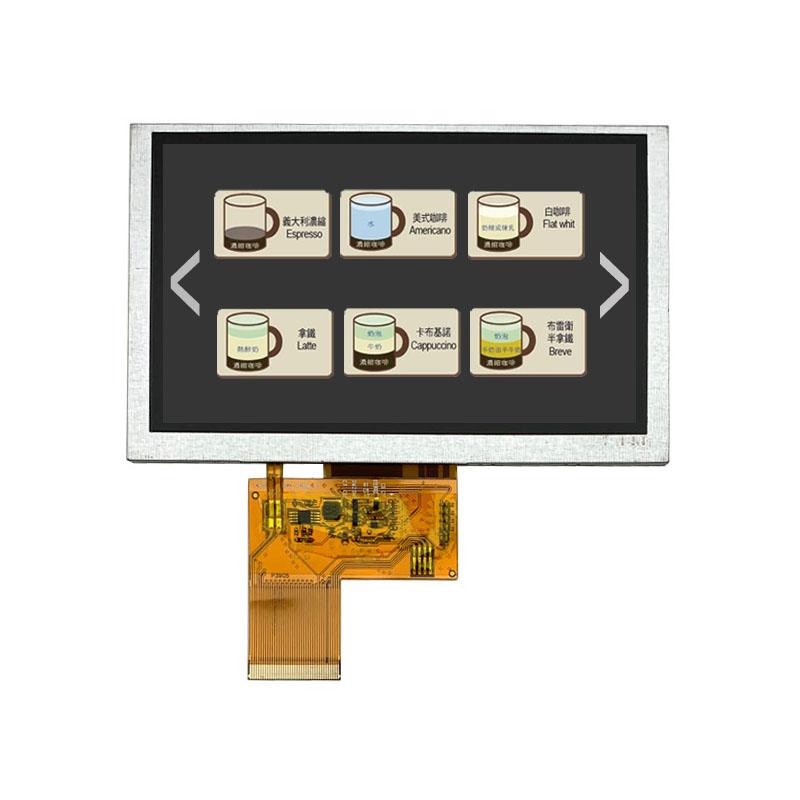

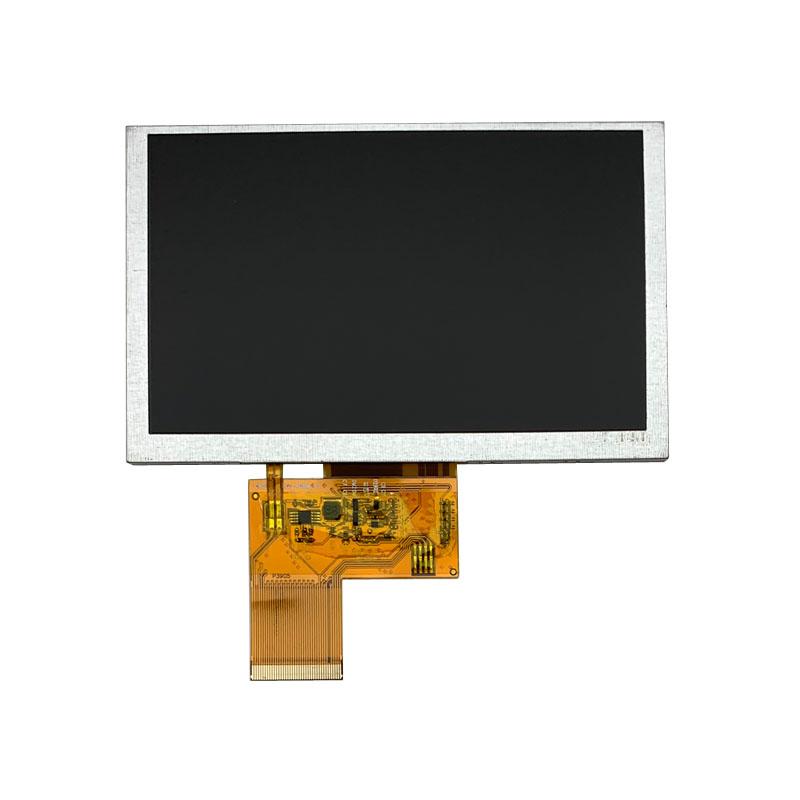

5 inch tft lcd display 800*480 with 300 brightness

5 inch tft lcd display 800*480 with 300 brightness
Model:SCT050005-V01
Brand:Sinocrystal
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Display Parts
Label:5 inch IPS LCD , 5'' TFT LCD Display , 800*480 lcd
Price: US $6 / pc
Min. Order:1 pc
Inquire Now

Product Description

Introduction:

General Specification



Item Standard value Unit
LCD Size 5 inch
Dot Matrix 800(RGB) × 480 pixel
Module Size 120.70 × 75.80 × 2.80 mm
Active Area 108.00 × 64.80 mm
Dot Pitch 0.135 × 0.135 mm
Pixel Configuration R.G.B. Stripe –
Color depth 16.7M –
Display Mode Normally Black, Transmissive –
Technology Type a-Si –
Viewing Direction All –
Gray Scale Inversion Direction All –
Driver IC ST7262 or Compatible –
Interface RGB –
LED Numbers 12 LEDs –
Weight TBD g

Interface Definition



Pin No. Symbol Type Description
1 LEDK P LED driving cathode
2 LEDA P LED driving anode
3 GND P Ground
4 VDD P Power supply for system
5 – 12 R0 – R7 I Data bus for red
13 – 20 G0 – G7 I Data bus for green
21 – 28 B0 – B7 I Data bus for blue
29 GND P Ground
30 PCLK I Pixel clock input
31 DISP I Display ON/OFF control
32 HSYNC I Horizontal sync input
33 VSYNC I Vertical sync input
34 DE I Data enable input
35 NC – No connection
36 GND P Ground
37 NC – No connection
38 NC – No connection
39 NC – No connection
40 NC – No connection
