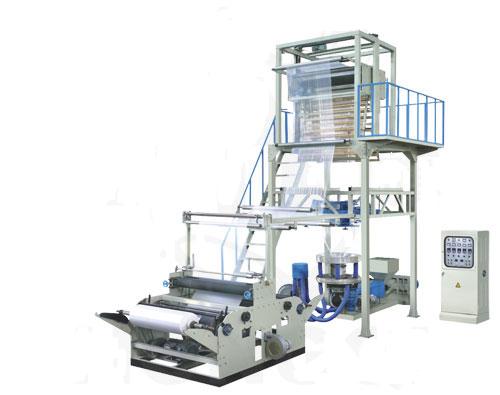

Polyethylene Heating Shrink Film Blowing Machine

Polyethylene Heating Shrink Film Blowing Machine
Model:SJ-/FM
Brand:HONGTAO
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label: -
Price: -
Min. Order:-

Product Description

SJ-50/FM600 SJ-55/FM800 SJ-60/FM1000 SJ-65/FM1200 SJ-80/FM1500
Polyethylene Heating Shrink Film Blowing Machine

Use:
It is used to blowing the various PE thermal shrinking membranes which are applied extensively to food, medicine, beer bottle,material bottle, box, case, cloth reel, glass, all sizes of trays, pottery, tissue, etc.,
Characteristics:
The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
The auxiliary machine has a platform working table for making operation easy.The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Design and specifications are subject to change without notice.
Note:the user should place an order with us super-huge machine set.
Payment Terms:TT
Packing:According to customer requirements
Lead Time:According to customer requirements
---: New Page 1
Model
SJ-65FM600
SJ-55FM800
SJ-60FM1000type
SJ-65FM1200type SJ-80FM1500type
Screw Diameter
50mm
55mm
60mm
65mm
80mm
Screw Ratio
L/D28:1
L/D28:1
L/D28:1
L/D28:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
11KW
15KW
18.5KW
22KW
30KW
Main Output
35kg/h
50kg/h
50kg/h
80kg/h
120kg/h
Max.Folding Width of Film
600mm
800mm
1000mm
1200MM
1500MM
Single-sided Thickness of Film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
22Kw
26Kw
30Kw
36Kw
46Kw
Weight of Mashine
2000kg
2300kg
2800kg
3300kg
4300kg
Overall Dimensions
400x1800
x3600mm
4200x2000
x4000mm
4600x2300
x4200mm
4800x2500
x4500mm
5200x2800
x5000mm
Polyethylene Heating Shrink Film Blowing Machine 1Polyethylene Heating Shrink Film Blowing Machine 2
