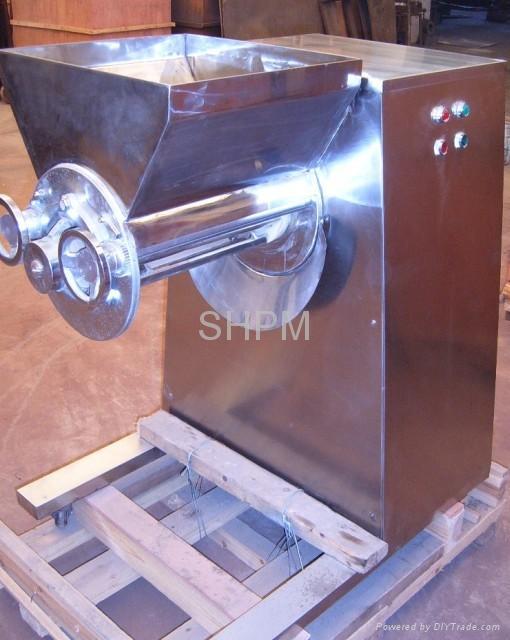

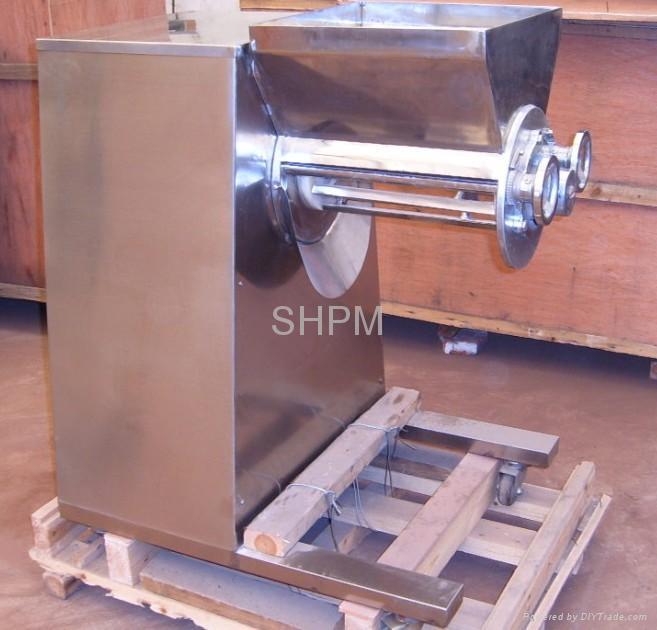

YK-160B Oscillating Granulator

YK-160B Oscillating Granulator
Model:YK-160B
Brand:SHPM
Origin:Made In China
Category:Industrial Supplies / Food, Beverage & Cereal Machine
Label:Granulator , Granulator Machine , Granule Machine
Price: US $2180 / set
Min. Order:1 set
Inquire Now

Product Description



Sunhang Pharmaceutical Machinery Co., Limited


YK Series Oscillating Granulator



Main Usage:

Widely used in pharmaceutical, chemical and foodstuff trades etc.it can make wet powdery material into granulates or crush block dry material, as well as carry out speedy granulation.
Working Principle:
The drum is swung repeatedly through mechanical driving, which makes the material extruded from sieve, further granulated or crushed or speedily palletized.

Main Technical Specifications:

Model

YK60

YK90

YK160

Rolling barrel diameter(mm)

60

90

160

Output(kg/h)

20-30

50-100

200-300

Swing range

>360o

Swing time(r/min)

40

50

55

Motor(kw)

Y06324

0.25

Y07124

0.55

Y90L-4

2.2

Weight(kg)

70

150

330

Overall size(L*W*H)

460*550*570

750*460*840

950*750*1240

YK-160B Oscillating Granulator 1YK-160B Oscillating Granulator 2YK-160B Oscillating Granulator 3YK-160B Oscillating Granulator 4YK-160B Oscillating Granulator 5
