Wire and cable is concave and convex detector, cable, wire is concave and convex and concave and convex detector detector of concave and convex tester, wire, wire and cable, concave and convex surface concave and convex detector detector, such as an alias. Wire and cable is concave and convex detector is used for detection of wire rod and pipe surface defects, is necessary for each wire pipe production.

Japan TAKANO bump detector using infrared optical projection technology of high precision, the tubular products is widely used in surface defect detection, such as optical fiber, ceramic, electric wire, communications, power cable, metal, glass glass rods, plastic pipe, pipe, water pipe, etc., may be required to detect changes in the surface of the product.

Widely used in wire and cable industry, in particular, improve production efficiency and quality of essential tool.
There are many new advantages:
Scan up to 2000 times per second;

A linear velocity: below 1.5 km per minute;

Continuous uninterrupted, non-contact testing;

From measured wire color, material, vibration test accuracy;

With alarm and alarm output (can be controlled by alarm output production line stops).

Measurable: convex and concave shrinkage, spots, rupture, spliced, prominent surface defect of wire or fiber.

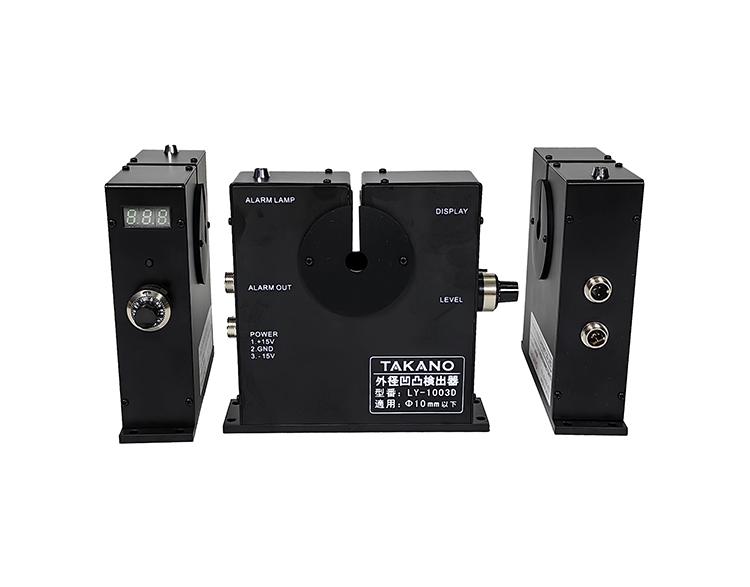

Type number LY - 0503 - d LY - 1003 - d LY - 2003 - d LY - 2503 - d LY - 3503 - d LY - 5503 - d
3 3 3 3 3 3 detection direction
Detection means double seam, near infrared non-contact continuous measurement
Set the range 0.002 0.999 mm
Apply 0.05 5 mm wire diameter 0.05 5 mm to 20 mm 0.05 0.05 0.2 0.2-35 mm to 25 mm to 55 mm
Value plus or minus 1% accuracy
The micro stitch length 12 mm to 25 mm to 35 mm to 8 mm 38 mm 60 mm
Micro slit width is 0.5 mm
Wire speed 5 m/Min to 1500 m/Min
Red LED light alarm output, alarm normally open contact closure
Alarm time of 0.1 S
