Gel filled without protection 1 pair dropwire STB VX connection Module

Gel filled without protection 1 pair dropwire STB VX connection Module
Model:TP-1301-1
Brand:Neutral / OEM / TAEPO
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment
Label:STB module , VX module , STUB module
Price: -
Min. Order:20000 pc

Product Description

Gel filled without protection 1 pair STB VX Module



PRODUCT SERIES

TP-1301-1: 1 pair STB module without protection
TP-1301-1G: 1 pair STB module with protection against over-voltage
TP-1301-1GP: 1 pair STB module with protection against over-voltage and over-current.



DESCRIPTIONS

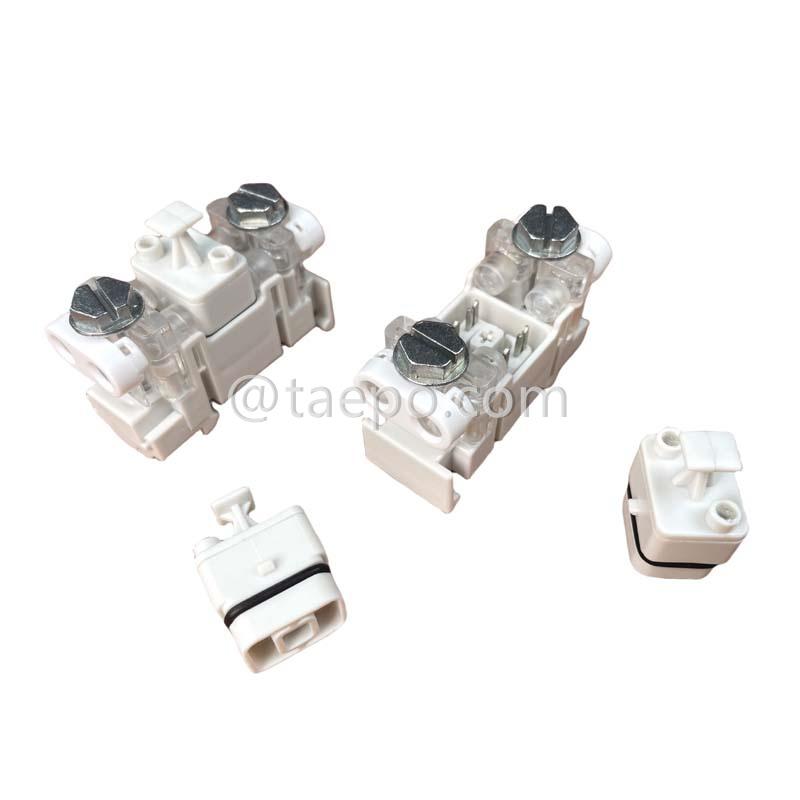

1 pair dropwire STB module without protection gel filled (TP-1301-1) also called VX connection module provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.



MAIN FEATURES

  • Insulation Displacement Connection
  • No wire-stripping, screw and solder free
  • Reliable connections
  • Modular design and installations
  • Gas tight connection
  • Robust long-term environmental stability
  • Flexible indoor and outdoor use



TECHNICAL PARAMETERS

General



Storage Temperature:

-40°C ~ +80°C

Operating Temperature:

-20°C~+60°C

Relative Humidity:

≤93% non-condensing





Apperance:

Uniform color, W/O crusting and cracks





Materials



Pair/drop Wire Screw:

Zinc Alloy

Drop Wire Housing Body:

Transparent polycarbonate

Body:

Flame retardant (UL94) glass-fiber reinforced polycarbonate

Insertion Contacts:

Special brass

Ground Contacts:

Cu - Zn - Ni - Ag alloy

Continuity Contacts:

Tinned hard brass

Lower Sealant:

Polymeric resin

Upper Cable Sealant:

Silicone fluid

Pair/drop Wire Bearing Cover:

Polycarbonate

Plug-in Module Body:

Thermoplastic ABS

Plug-in module Sealant:

Silicone fluid

“O”-Ring:

EPDM

Spring:

Carbon steel

Cable/drop Wire Membrane:

Thermoplastic PVC





Specifications



Drop Wire Gauge range:

0.4 to 1.2 mm

Insulation Diameter:

5 mm max.

Pair Wire Gauge range:

0.4 to 1.2 mm

Insulation Diameter:

5 mm max.





Insulation resistance:

> 10 12 @ 500 V

Contact resistance:



R material + R bridge contacts + R wire contacts < 10 m

Increase in contact resistance:



After climatic tests < 2.5 m

After 50 re-insertions < 2.5 m

Dielectric strength:

> 3000 VDC for 1 minute



ORDER DATA

Item No

Descriptions

TP-1301-1

1 pair dropwire STB module without protection, gel filled









*For more products, please kindly visit our website:http://www.taepo.com
