Plate Stacking Turning Machine With 180 Degree,SH180FZJQ

Model:	SH180FZJQ
Brand:	SHOOT
Origin:	Made In China
Category:	Industrial Supplies / Packaging Related Machine
Label:	turning machine , board turning , stacking turning
Price:	US $10200 / pc
Min. Order:	1 pc

Inquire Now

Product Description

Heavy Duty Plate Stacking Turning Machine With 180 Degree
Project Overview
This equipment is a special equipment for turning operations. It is used for 180° turning of the plate stacking material. It is a necessary auxiliary equipment for the plate industry. It can reduce the surface damage of the plate, improve the work quality, reduce the labor intensity of the workers, and improve the work efficiency.
Flip principle and technical characteristics
C-shaped opening form. Place on flat ground, no need to dig a pit
The board that can meet this specification can be turned 180 degrees.
Flip drive characteristics
1) Frame: C-frame type, 180 degree flip.
2) Flip drive source: brake motor + reducer.
3) Flip transmission method: cylinder clamping, chain transmission.
4) Support: The base support is fixed on the ground, with four sets of support rollers.
5) Stop method: decelerate → stop.
6) Braking method: motor with brake.
7) Detection: There are two detection switches (first-level deceleration, second-level stop) at the start and end points of the turning device to realize the interlock between the turning action and the automatic operation of the whole machine.
8) Installation of the whole machine: The whole machine is directly installed in the load-bearing ground (the user makes it according to the basic drawing provided by the supplier) to ensure sufficient bearing capacity.
9) There are protective measures to deal with any sudden abnormalities during the overturning process.
Electrical control and control system
The main electrical control parts are selected from high-quality products to ensure the reliability of system operation. The whole machine is equipped with an independent operation control station, and the main operation station completes all operation instructions. Arrange frequently used operation buttons reasonably on the operating station. Set emergency stop and reset, press the emergency stop button, the turning device stops turning. After the troubleshooting is confirmed, press the reset button to turn the device over again. Safety protection and other items not mentioned, fully comply with national standards and corporate standards.
Model	SH180FZJ
Power source	480V 60HZ three-phase
Temperature	-5℃～45℃
Relative humidity	MAX90% (no condensation)
Hydraulic system	0~16Mpa
180 degree turning machine	1 set
Hydraulic system	1 set
Electrical control and operating system	1 set
Environment temperature	-5～45℃
Relative humidity	20%～90%
Grid form	480V 60HZ three-phase
Voltage	AC 3×480V
Stack weight	3 tons (The load-bearing capacity of the turning machine is 3 tons)
Stack size	length: 2.44m; width: 1.2m; thickness: 600-1200mm
Structure type	"C" frame type
Work beat	Overall cycle time: ≤90 S (Loading→clamping→turning→relaxing→unloading)
Clamping mechanism form	Hydraulic cylinder clamping (Single cylinder (continuous pressure maintenance))
Loading and unloading method	Forklift
Accessories
Hydraulic system	Lidun
Reducer	Xinran
Contactor	DELIXI
Circuit breaker	DELIXI
Emergency stop switch	SCHNEIDER France Schneider
Start button	SCHNEIDER France Schneider
Indicator light	SCHNEIDER France Schneider
Limit switch	MOUJEN Taiwan Maoren
Terminal block	TEND
Bearing	HRB Harbin

Standard Plate Stacking Turning Machine With 180 Degree
Project Overview
This equipment is a special equipment for turning operations. It is used for 180° turning of the plate stacking material. It is a necessary auxiliary equipment for the plate industry. It can reduce the surface damage of the plate, improve the work quality, reduce the labor intensity of the workers, and improve the work efficiency.

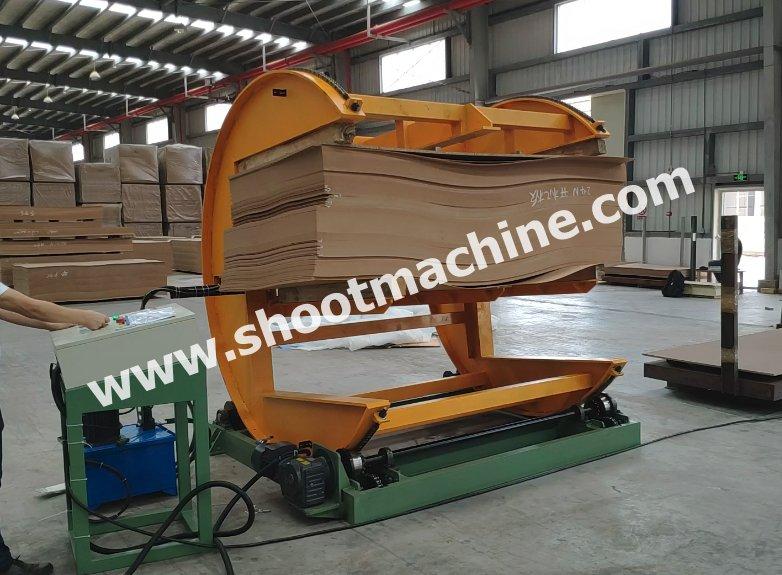

Sheet turning machine, including base, rotating body, pressing system, control system, etc. A helical gear brake reduction motor is set in the base, and the body rotates 180 degrees through the left and right sprocket chain systems. The rotating body is composed of a C-shaped arc and an upper and lower platen worktable, and an oil cylinder is set to clamp the plate.
When loading the material, first place the sheet on the worktable by a forklift, start the oil cylinder to clamp the sheet downwards, start turning 180 degrees, the oil cylinder is released, and the forklift removes the sheet.
Flip principle and technical characteristics
C-shaped opening, stable and safe during the whole turning process
Independent operation cabinet button operation, safe and convenient.
Lay on a flat ground without digging a pit.
Base: Cardamom Green, Swivel: Medium Yellow
The board that can meet this specification can be turned 180 degrees.
Flip drive characteristics
1) Frame: C-frame type, 180 degree flip.
2) Flip drive source: brake brake motor + reducer.
3) Flip transmission method: cylinder clamping, chain transmission.
4) Support: The base support is fixed on the ground, with four sets of support rollers.
5) Stop method: decelerate → stop.
6) Braking method: motor with brake, limit switch, mechanical limit.
7) Detection: There are two detection switches (first-level deceleration, second-level stop) at the start and end points of the turning device to realize the interlock between the turning action and the automatic operation of the whole machine.
8) Installation of the whole machine: The whole machine is directly installed in the load-bearing ground (the user makes it according to the basic drawing provided by the supplier) to ensure sufficient bearing capacity.
9) There are protective measures to deal with any sudden abnormalities during the overturning process.
Turnover machine performance
1. The mechanical turning system will not turn over.
2. The four-roller mechanism ensures the smooth operation of the equipment.
3. The roller and the turning base are equipped with safety guards to ensure the safety of personnel.
4. Equipped with an independent control cabinet, which has a certain distance from the turning machine to ensure the safety of operators.
5. The inner bearing of the roller adopts solid self-lubricating copper sleeve bearing, which is wear-resistant, high temperature resistant, graphite lubricated, and has greater radial bearing capacity.
6. All control circuits adopt 24V safety voltage, which is safe and reliable in operation.
7. With sound and light alarm system, it effectively reminds the operator to pay attention to operation safety.
8. Use multiple limit switches and mechanical protection to ensure safe operation.
9. The equipment motor starts with slow start and slow stop, and the operation is stable and fast. There will be no sudden collapse.
10. Adopt hard tooth surface industrial reducer, with large torque, long life and stable operation.
11, parking brake self-locking function, can stop at any position, the flip body is locked in place, safe and reliable.
Electrical control and control system
The main electrical control parts are selected from high-quality products to ensure the reliability of system operation. The whole machine is equipped with an independent operation control station, and the main operation station completes all operation instructions. Arrange frequently used operation buttons reasonably on the operating station. Set emergency stop and reset, press the emergency stop button, the turning device stops turning. After the troubleshooting is confirmed, press the reset button to turn the device over again. Safety protection and other items not mentioned, fully comply with national standards and corporate standards.
Model	SH180FZJQ
Power source	AC380V 50HZ three-phase five-wire system
Temperature	-5℃～45℃
Relative humidity	MAX90% (no condensation)
Hydraulic system	0~16Mpa
180 degree turning machine	1 set
Hydraulic system	1 set
Electrical control and operating system	1 set
Environment temperature	-5～45℃
Relative humidity	20%～90%
Grid form	three-phase five-wire system
Voltage	AC 3×480V
Control power	DC 24V
Sheet weight	3 tons (The load-bearing capacity of the turning machine is not less than 3 tons)
Sheet size	length: 2.44m; width: 1.2m; thickness: 700-1300mm (including rack)
Structure type	"C" frame type
Work beat	Overall cycle time: ≤80 S (Loading→clamping→turning→relaxing→unloading)
Clamping mechanism form	Hydraulic cylinder clamping (Single cylinder (continuous pressure maintenance))
Loading and unloading method	Forklift (Feed on one side and unload on the other side)
Accessories
Hydraulic system	Lidun
Reducer	Xinran
Contactor	DELIXI
Circuit breaker	DELIXI
Emergency stop switch	SCHNEIDER France Schneider
Start button	SCHNEIDER France Schneider
Indicator light	SCHNEIDER France Schneider
Limit switch	MOUJEN Taiwan Maoren
Terminal block	TEND
Bearing	HRB Harbin
