High speed style . Adopt whole steel structure , high speed gear wheel and Italy water cooling spindle. |
|
Wood working area : waving board , cabinet door , solid wood door , craft wood door , no-paint door , folding screen , craft window ,shoe polisher , game machine cabinet , Ma-jiang Table , computer table and panel type funiture . |
Advertising Area : making advertising products made from Brand Board , Acryl cutting , mould and some other material . |
Mould Area : Metal mould eg :engraving copper , aluminium and iron, and nonmetal mould eg scagliola ,sandstone , plastic board , PVC pipe , wood sheet etc . |
Other area : art and craft area , embossment and engraving photo. |
Feature: |
1. It adopts ceremic bearing spindle, this spindle has high precision, long life time, low noise, small quiver, good parallel. |
2. The whole steel structure , well welded , no distortion for whole structure . |
3. Adopt imported square orbit , double slippers . Bearing heavy , working steadily , high precision , and long life time . |
4. DSP controller system with USB interface , working without connecting with computer during working and easy to control . |
5. Software : CAD / DAM designing software eg Type 3 / ArtCAM / Castmate / Wentai etc. |
6. Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. Options for vacuum pump : Vacuum pump made in China or No-oil vacuum pump made in Germany . |
7. Auto Oilling system. Easy to operate by pressing one key . |
8. Adopt high speed stepper motor and drivers, and two motors for Y axis . Max speed is 35M/MIN . |
9. Auto Aligning System . |
10. Temperature Control System . Can prolong the life time of the spindle . |

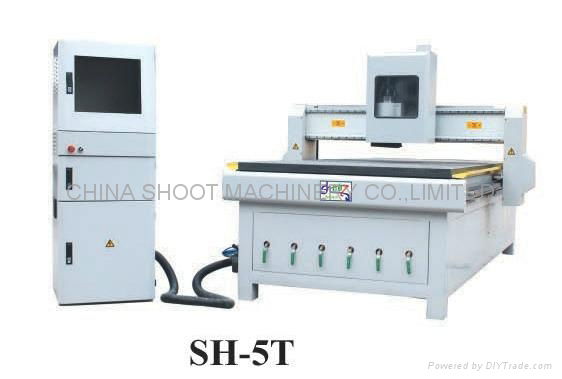

CNC Woodworking Router Machine |
Model |
SH5T |
X Y working area |
1300x2500mm |
Z working area |
200mm |
Table size |
1680x3000mm |
Max feeding |
<20m/min |
Working-holding |
Vacuum system |
Processor |
DSP/100MHZ |
Interface |
USB |
Command |
G Code*.u00*.mmg*plt |
Surroundings for software |
DSP |
Power (not include the spindle) |
1840W |
Power |
380V50Hz |
Main axle power rate |
4.5(Water cooling) |
Main axle rotating |
0-24000rpm/min |
Packing size |
3190x2100x1930mm |
N.W./G.W. |
2100/2800kg |
Work mode |
Stepper |
