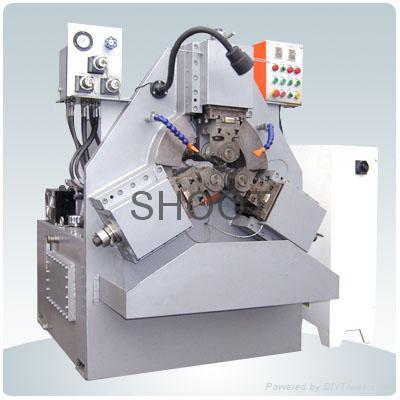

Three-shaft Thread Rolling Machine |
Model |
ZC28-6.3 |
This is a thread producing machine which uses its three thread rolling dies, mounted in the same separation |
angle of 120°,to realize roll forming of the work piece, for metal has the performance of plastic |
deformation under the pressure operation. |
It is not only used for roll forming of normal thread work piece, but also applied to thin-walled thread |
work and special-shaped work. |
Generally speaking, material for roll forming should be carbon steel, alloy steel or some non-ferrous metal, |
with elongation>10%,tensile strength<1000MPa,and hardness |
maximum rolling pressure |
63KN |
diameter of main shaft |
45mm |
maximum width of rolling die |
60mm |
minimum center distance |
43mm |
feeding speed |
0.1~4mm/s |
speed of mineshaft |
44\66\92\137r/min |
gross power |
8kw |
maximum inclination of main shaft |
±6° |
maximum diameter of rolling die |
155mm |
maximum center distance |
95mm |
Max. rolling dia. |
120mm |
maximum diameter range |
14-42mm |
maximum thread pitch |
3mm |
net weight approximate |
7000kg |
overall size |
2100 x 2200 x 2300mm |
