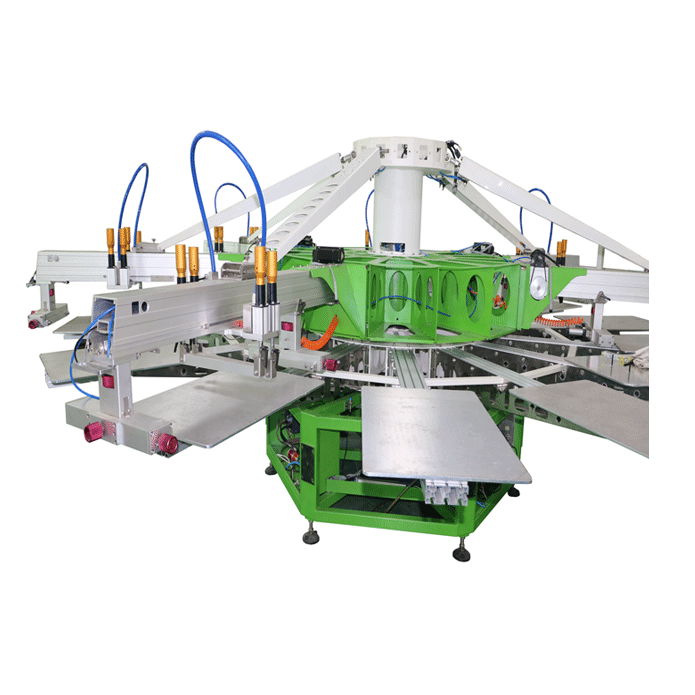

Rotating hot selling octopus Full automatically garment screen printer

Model:	SA6-4570/14
Brand:	KC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	screen printer , garment printer , silk printer
Price:	US $25481 / pic
Min. Order:	1 pic

Inquire Now

Product Description

The automation of garment cutting screen printing machines is also a market trend. In terms of overprinting accuracy and ease of operation, the oval automatic screen printing machine has certain advantages, but it occupies a large area and costs high. For small and medium garment printing factories , The octopus-style multi-color screen printing machine still has a large market space. The multi-color octopus screen printing machine adopts manual loading, that is, the materials and clothing are placed on the workbench by hand. The workbench can have 8-10-12-14 or more according to the number of colors of the machine, and some stations are used for For silk screen printing, some stations are used for drying. In principle, the stations need to be installed with a swing oven to ensure that the surface of the ink is dry and avoid the phenomenon of sticking between colors. The workbench of the screen printing machine can automatically rotate to the next screen printing position to print the next color. In order to improve the accuracy, the screen printing machine adopts a certain mechanical positioning device. At the same time, the upper and lower sides of the screen are controlled by servo motors.
The automatic rotary cutting screen printing machine is another representative of the forward and backward movement of the scraper in the type of screen printing machine. We know that the oblique arm screen printing machine is such a structure, which makes it easier to place and remove products. If you are tired of the hard work of manual screen printing machines and do not plan to buy oval screen printing machines, then you can consider disc screen printing machines.

SA6-4570/14 Automatically 6-color garment screen printing machine//Structure
Location	Sensor
Working table	High strength cast aluminum plate -450*650mm
Actions	automatically Rotating screen plate
To be printed	Fabric
Rotating angle	60
Squeegee and screen plate control	High precision rotating disc
Ink drying	Heat set ink, IR Drying
SA6-4570/14 automatically -color Garment screen printing machine//Usage and characters
Guide	This is a rotary clothes 6-color manual screen printing machine, suitable for printing 450mm * 650mm about the format of the fabric, paper, clothes; T-shirts and other products. Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors. Workbench coated with solvent glue is recommended for accurate print positioning; Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm; Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator; More suitable for heat set printing ink, printing ink thickness, ink, bright; Configuration of infrared drying device, which will help the plastisol ink is fast drying; automatically Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency. PLC Operation technical;
Application	T shirt , Clothes, Garment, Fabric, Textile Printing , Cotton
SA6-4570/14 Automatically 6-color garment screen printing Machine //Parameters
Technical parameters	SA6-4570/14 6-colour automatically rotating flat screen printing machine Max printing thickness:0-20 MM; Net weight: 965KG; Max printing area:400X600mm Size of working table: 450×650mm; Max printing speed:2500cs/H. Printing number: 6; Drying mode: IR; Max height of screen frame: 40mm; Max size of screen frame: 550*680mm; Wattage of heater: 30KW.
Works supply	3 Phase 380V Power supply; 5-7 Bar compress air
Package parameters	Gross weight: 1010kg Wooden case dimension:2430×2430×1850mm; 10.9241CBM
H.S.CODE	8443198000
Certificate	CE
SA6-4570/14 Automatically 6-color garment screen printing machine//Advantage
Function	Full automatically operation process ; Total-steel rotating-axis system ensure whirling free and Adaptability. High-strength support pole make the machine structure rigidity. Six-color screen printing one time, overprint is precision . Screen frame can be adjustable according to different objects to be printed. Screen frame can be rise up after printing so that printing quality. High-stabilization working table ensure non-shaking when printing; IR Dryer with machine make the clothes drying fast PLC controlling ensure operation more easier
