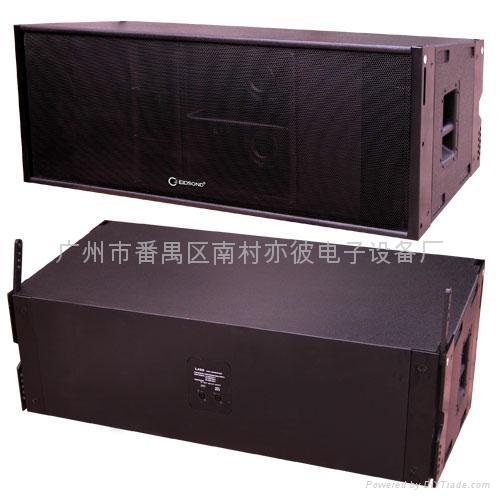

System Type....................................large scale Three-way line array enclosure

Component...................................2x12”(300mm)/4”(100mm) voicebass driver

                                            2x8” neodymium

                                            3x2”(44.4mm)exit HF compression driver

RMS ...............................30Hz-22kHz±3dB

PEAK Power............................LF:800W/4Ω AES   2000W/4Ω peak

                                             MF:400W/4Ω  AES   1000W/4Ω peak

                                             HF:180W/3Ω  AES   400W/3Ω peak

Sensitivity.................................LF:100 dB continuous ,140dB peak

                                             MF:102 dB continuous ,138dB peak

                                             HF:120 dB continuous ,140dB peak

Input conectors................................3xNeutrick NL4
Dimention(LxWxH).......................1190 x 555 x 460mm

Net Weight（Kg）............................75kg
Gross Weight（Kg）............................78kg
