Hexagonal wire mesh


Material: Low carbon steel wire, stainless steel wire.

Weaving: Straight twist, reverse twist, double direction twist. Galvanized after weaving, before weaving. Hot dipped galvanized, electro galvanized or PVC coated.

Features: Firm structure, flat surface. Offering good corrosion resistance and oxidation resistance

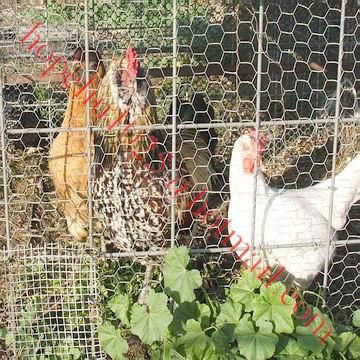

Application: Hexagonal wire netting is used in breeding of poultry, zoo fencing, protection of machinery, expressway fences, playground fences and road fences. It makes ideal materials for flood prevention and flood control in protecting and support seawall, hillside, road bridges, reservoir and other civil engineering in the form of mesh containers filed with stones。

Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M)
Mesh		Wire Gauge (BWG)
Inch	mm
3/8"	10mm	27,26,25,24,23,22,21
1/2"	13mm	25,24,23,22,21,20,
5/8"	16mm	27,26,25,24,23,22
3/4"	20mm	25,24,23,22,21,20,19
1"	25mm	25,24,23,22,21,20,19,18
1-1/4"	32mm	22,21,20,19,18
1-1/2"	40mm	22,21,20,19,18,17
2"	50mm	22,21,20,19,18,17,16,15,14
3"	75mm	21,20,19,18,17,16,15,14
4"	100mm	17,16,15,14

Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M)
Mesh		Wire Gauge(BWG)	Reinforcement
Inch	mm	(BWG)	Width(ft)	Strand
1"	25mm	22,21,20,18	2'	1
1-1/4"	32mm	22,21,20,18	3'	2
1-1/2"	40mm	20,19,18	4'	3
2"	50mm	20,19,18	5'	4
3"	75mm	20,19,18	6'	5

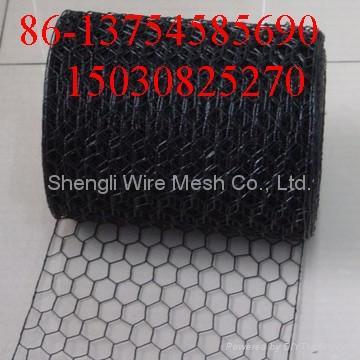

Hex. wire netting PVC-coated (width of 0.5M-2.0M)
Mesh		Wire Dia(mm)
Inch	mm
1/2"	13mm	0.9mm,0.1mm
1"	25mm	1.0mm,1.2mm,1.4mm
1-1/2"	40mm	1.0mm,1.2mm,1.4mm,1.6mm
2"	50mm	1.0mm,1.2mm,1.4mm,1.6mm
