SOAP DISPENSER INSTRUCTIONS



Thank you for choosing the products of  xx  company, may it will bring conveniencetoyour future life.

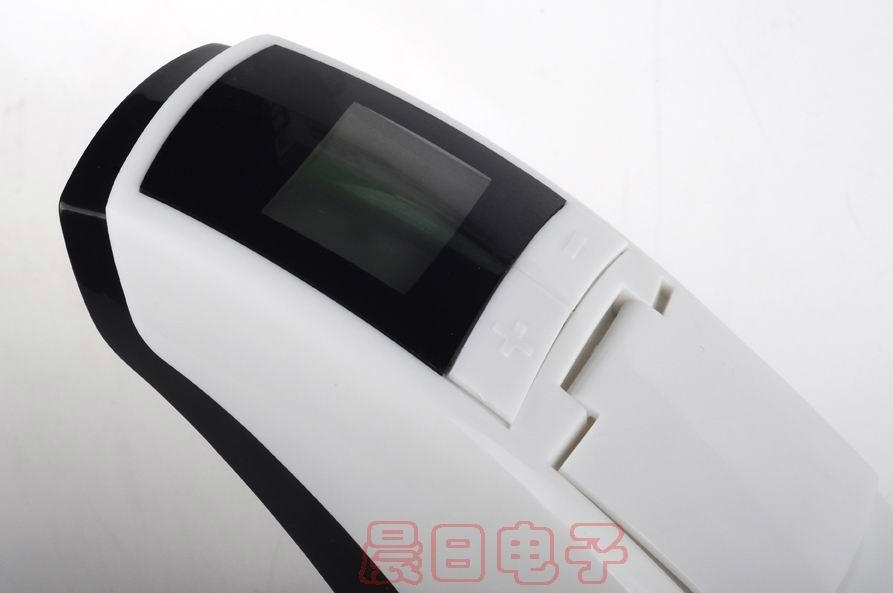

FUNCTION INFORMATION:






“+”  button toadd volume

“-”   button to reduce volume



Caution:if press the“-”button more than 5 seconds, then the dispenser will be turned off.  Press 2 seconds to turn on.



Power:  AA/1.5V * 3 batteries,  please use alkaline batteries!







LCD display：



1. 1. If the battery power in low level, please change to new batteries.
2. 2. If the liquid in low level, please add liquid soap.





INSTALATION SHOW



INSTRUCTIONS



Installation steps

1. Pour the liquid soap into the container, and cover it.

2.Put three "AA" alkaline batteriesinto the battery box, install batteries with the right way according to the chart of the battery box.Assemble the battery box into the soap dispenser.

3.This product can be used directly on the desktop or hander with wall bracket.



Use

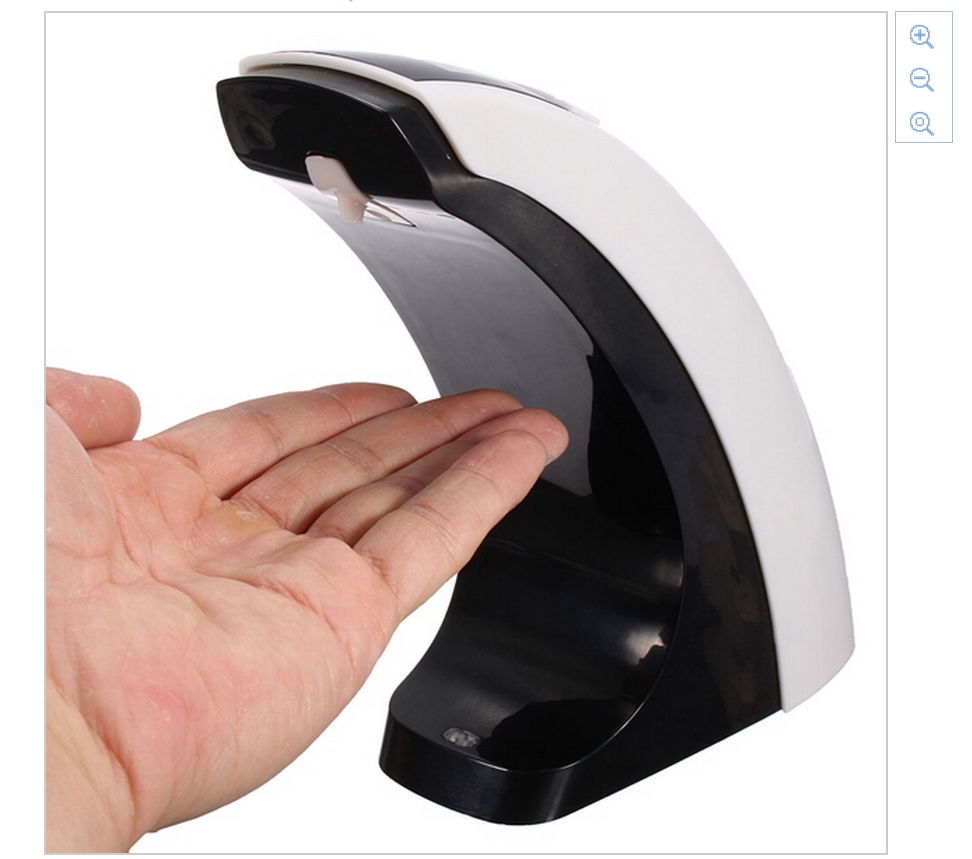

1.Put the hand near theinductive zone and theliquid will flow out from the outlet.Please run several times until the liquid flow out of the dispenserduringthe first time use,because the soap haven’t flow into the liquid pipe.

2. If necessary pleasemove your hand andrepeat the step 1.

3.Thevolume is adjustable, totally four levels. Use ‘+’ button to add the volume, use ‘-’ button to reduce the volume.





NOTE AND MAINTENANCE



1. Choose an appropriate place to set the soap dispenser, make products protect from damping or touching water.

2.Don't put the soap dispenser device on mirror or strongreflectivesurface, don't put the soap dispenser deviceunderwater

3. It might affect induction sensitivity when use the soap dispenser under the strong sunlight.

4.  This product is suitable for the liquid concentration is moderately,if the liquid concentration is too high it will result in liquid flowver owlyor stoppingflowing.

5.  Please don’t use alcohol or other chemical liquid.

6.  Please don't let the dust into soap dispenser, that may jam access point, if you find some dirty or impurity in the container, please change soap liquid.

7.  Please use soap dispenser frequently, if you don’t use it for a long time, the liquid soap may solidification, then please

 pour out the liquid and clean up the soap dispenser.

8. Please add soap when thesoap level indicator is blinking.



CLEAN

1.Please take out the batteryandpour out the liquid when don’t use the dispenser,clean up with a rag wipe.

2.Please don’t put the soap dispenser into the water when clean it, that might damage thecircuit board.

1. 3. Clean soap dispenser’s surface with wet cloth and dry towel butpleaseuse dry towel to clean battery box only.

4. Do not use strong corrosive chemical solvents to clean the products, to avoid the surface be damaged and deformation.



COMMONFAULTANDPROCESSING



1．If the soap dispenser don’t work

（1）Put your hand near the soap dispenser

（2）Make sure the current have connect.

（3）Check the under surface of the soap dispenser, if there are much light and shadow under the bottom, please move the soap dispenser to the right position.

 (4)  Make sure the surface of the reaction port is clean enough.



2．If the soap dispenser don’t flow the liquid



（1） If you use it at the first time ,some air may remain in the tubing, please operation the soap dispenser several times.

（2）May be the soap is not enough, please add the soap.

 (3)   Check the batteries whether have enough power.





WALL BRACKET INSTALATION：
