Hi Speed Web Paper Sheeting Machine
| Model: | Sta-1400, 1700, |
|---|---|
| Brand: | Jingyeda brand |
| Origin: | Made In China |
| Category: | Industrial Supplies / Paper Machinery |
| Label: | web paper cutting mc |
| Price: |
-
|
| Min. Order: | - |
Product Description

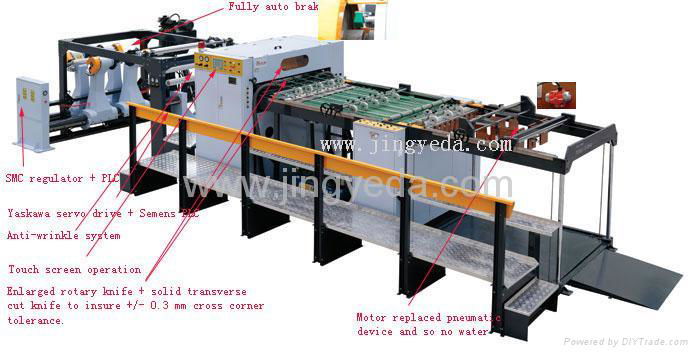

Hi Speed Web Paper Sheeter is developed from overseas design. In comparison, same type of machine, it saves power by about 50%. Whole machine needs one operator only. For high production and accurate sheeting, so around half a year you may earn back your total investment.
Advantages:
1. Developed whole mechanical structure. Running wearing shaft's mortality factor is less than 0.5%. Mechanical speed: 300 m/min. Rotary cutting speed: 400 m/min. Sheeting accuracy (cross corner): +/- 0.3 mm.
2. Unwinding station: 2 or 4 unwinders. Shaftless design + pneumatic driving + push button operation.
3. Control system: Central CPU employed German Semens PLC + Japanese encoder and Yaskawa AC servo drive + Taiwan Cermate MMI (man machine interface).
Sta-1400 Technical parameter
| Tangent rotary knife: upper rotary/ lower stationery | Tangent weight: 45-500SM |
| Web diameter: 2000mm (78”) | Max. width: 1400mm(78’’) |
| Sheeting length: 450mm-1600mm | Accuracy: +/- 0.3mm |
| Max. speed: 300 m/min | Max. speed: 400 pcs/min |
| Standard power supply | 380VAC/220VAC (50-60Hz) |
| Max. sheet length | 1600mm |
| Min. sheet length | 450mm |
| Deep pile depth | 1300mm (may change as required) |
| Deep pile loading | 2000 KG |
| Max. linear speed | 300 M/min |
| Max. paper weight | 500 GSM |
| Max. cut repeat | 400 cuts/min |
| Unwinder capacity | 300 kg |
| Total weight | 11 tons |
| Dimensions | 11700 x 4700 mm |
