Measuring Microscope
| Model: | 15JF |
|---|---|
| Brand: | CSOIF |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / PDA |
| Label: | - |
| Price: |
¥7980
/ pc
|
| Min. Order: | 1 pc |
Product Description
3．Measuring system: Japanese Mitutoyo metric & British System conversion digital-display micrometer handwheel.
Z-direction assistant measuring: 0.001㎜/2㎜ (optional)
2
．Measuring worktable 150×150㎜ Glass platform Φ72㎜Z-direction assistant measuring: 0.001㎜/2㎜ (optional)
|
107JA |
|
Japan Mitutoyo Public、British system conversion
Digital micrometer handwheel
|
2
Moving range X-Y-coordinate Separating capability 50×50 ㎜
Separating capability 0.001㎜ (digital display)
Rotary platform 360°discretionarily, Separating capability 5′(nonius)
Specification
1. Zoom multiple of objective and eyepiece (Objective may also choose other zoom multiples: 5×；20×；25×；60×；100×)
|
PL Objective
|
WBF Dividing eyepiece
|
Working distance
(mm)
|
Diameter of field of view(mm)
|
Total zoom multiple
|
||
|
Zoom multiple/ Numerical value hole diameter
|
Focus
(mm)
|
Zoom multiple
|
Focus
(mm)
|
|||
|
4×/0.1
|
28.8
|
10×
|
25㎜
|
17.5㎜
|
Φ4.5㎜
|
40×
|
|
10×/0.25
|
15.4
|
11.6㎜
|
Φ1.8㎜
|
100×
|
||
|
40×/0.65
|
4.4
|
0.66㎜
|
Φ0.45㎜
|
400×
|
||

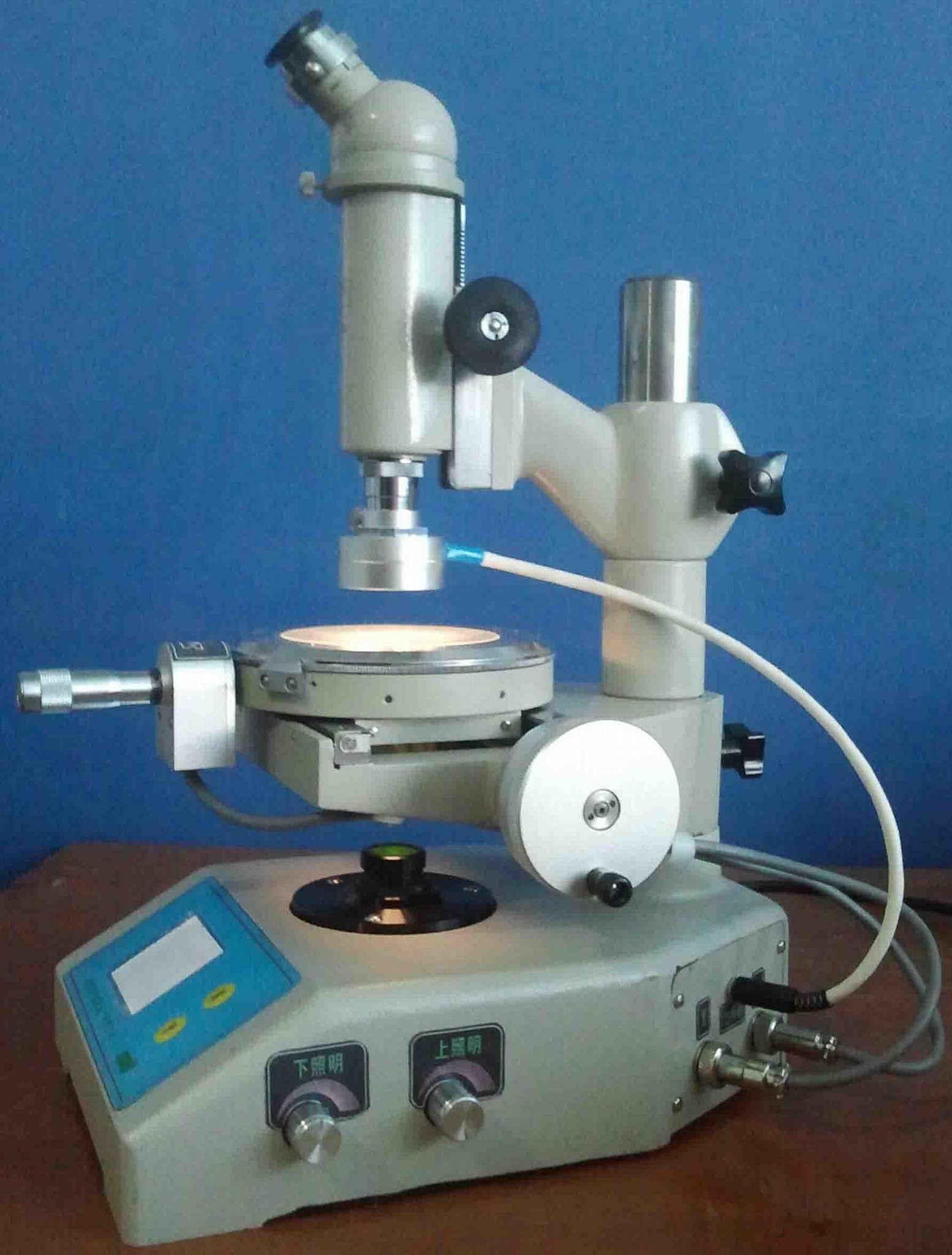

Mimi-type and multi-use precise measuring microscope has the advantages of compact structure, clear imaging and high precision, used to precisely measure planar coordinate and assistant measure Z-direction. This instrument is equipped with ray-adjustable falling reflection, transformation, assistant illumination installation and multi filters, which brings great convenience to measure each kind of complex shape. It may contact to CCD Video-cam, also may contact to computer to carry on data processing.
Precise measuring microscope 107J series
