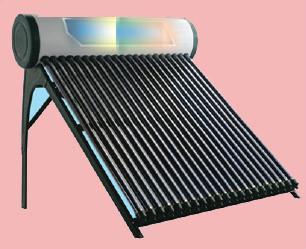

Solar Heat Pipe pressurized water heater with enamel tank Keymark Certified

Solar Heat Pipe pressurized water heater with enamel tank Keymark Certified
Model:-
Brand:HY-CY-1858-24
Origin:Made In China
Category:Metallurgy , Mining & Energy / New Energy / Solar Energy
Label:heat pipe system , Sydney vacuum tube , enamel coated tank
Price: -
Min. Order:10 set
Inquire Now

Product Description


Storage:
Volume: 200L
Outer Diameter: 0.455m
Width: 2.06m
Construction: Horizontal
Tank Material: stainless steel 304-2B /or Enamel Coated Steel
Insulation: polyurethane foam (50mm)
Material of the casing: Galvanized sheet


Collector:
Heat pipe in evacuated tubes
Number of evacuated tubes: 24pcs
Total collector area (height, width): 1.8m X 1.81m=3.26㎡
Aperture area: 2.25㎡
Absorber area: 1.95㎡
Material of the cover tube: Borosilicate Glass3.3
Transmission of the cover tube: 94%
Emission rate of the cover tube: 6%
Outer diameter of the cover tube: 58mm
Outer diameter of the inner tube: 47mm
Length of the outer tubes: 1800mm
Outer diameter of heat pipes: 8mm
Inner diameter of heat pipes: 6.5mm
 Length of heatpipes:1800mm

We also supply 15pcs tubes with 130L tank:
                         18pcs tubes with 150L tank;
                         21pcs tubes with 180L tank
