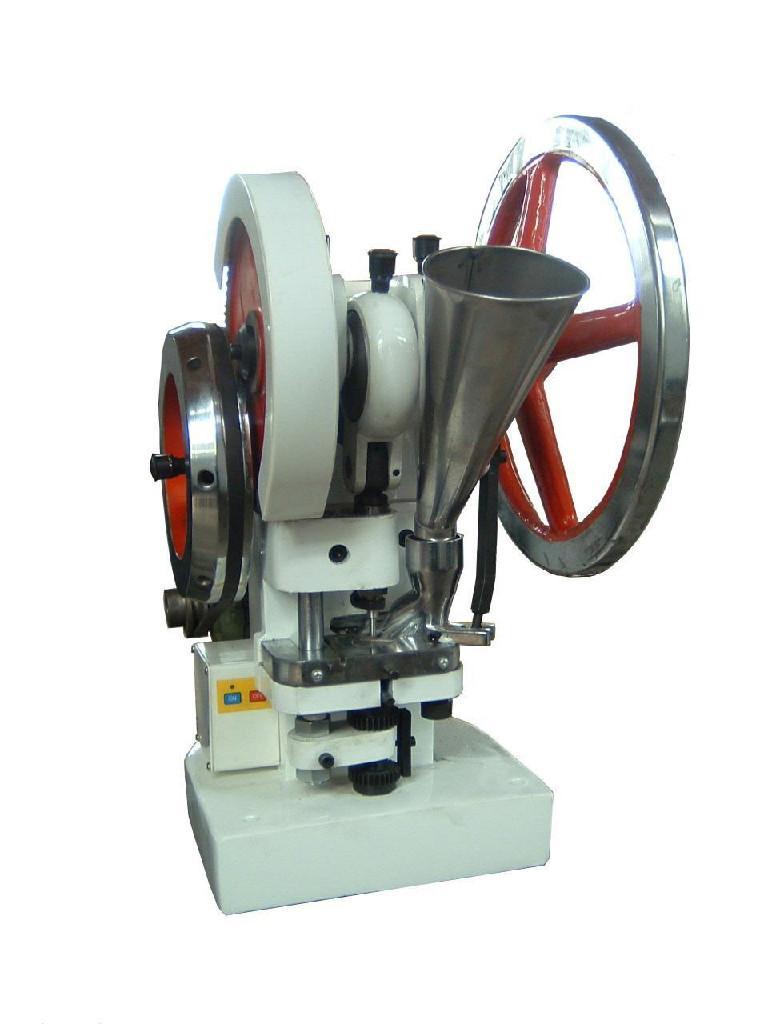

TDP single punch tablet press
 This machine is designed for pressing round tablets.
 Characteristics:
 It is used in lab or R&D center for research and development.
 It is a small desk-top machine driven by motor or man-power.
 Only one set of punch and die is installed, the depth of filling and the thickness of tablet can be adjusted.
Main technical specification:
Model TDP1.5 TDP-5
Dies 1 set 1 set
Max Pressure 15 KN 50KN
Max Dia of Tablet 12 mm(Compressible shaped tablets) 16mm(Compressible shaped tablets)
Max Depth of Filling 11 mm 12mm
Max Thickness of Tablet 6 mm 6mm
Max production 6000 pcs/min 4000pcs/min
Motor 350W 220V 50HZ 750w 220V 50HZ
Overall Size 580*450*625 mm 580*500*700mm
Net Weight 70kg 125kg
