double channel syringe pump

double channel syringe pump
Model:SP7D
Brand:JYM
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Laboratory Instrument
Label:dual syringe pump , double syringe pump , SYRINGE PUMP
Price: -
Min. Order:1 pc

Product Description

Compatible with Syringes of any Brand.
Automatical Calibration for any Brand .
Two channel with two governer
SPECIFICATIONS
Compatible Syringe:Any standard syringe with 10ml20ml(30ml) and 50ml(60ml)
Accuracy:±2% ( Any manufacturers of syringes, right after calibration )
Delivery Rate Range:
50ml(60ml)0.1ml/h∼1800.0ml/h (0.1ml/h step)
20ml(30ml)0.1ml/h∼800.0ml/h (0.1ml/h step)
10ml0.1ml/h∼400.0ml/h (0.1ml/h step)
Time Mode Range:
Volume0.1∼999.9ml (0.1ml step)
TIME1∼1999min (1min step)
Body Weight Mode Range:
Volume0.1∼999.9ml(0.1ml step)
DRUG MASS0.1∼999.9mg(0.1mg step)
DOSE0.01∼99.99ug/kg/min(0.01ug/kg/min step)
WEIGHT0.1∼300kg(0.1kg the least step)
Volume Limit Range:0∼1999.9ml (0.1 ml step)
Total Volume Range:0.1∼1999.9ml (0.1 ml step)
Rapid injection:50ml(60ml)1800.0ml/h, 20ml(30ml)800.0ml/h, 10ml400.0ml/h
KVO Rate:1ml/h
Alarms:Near empty, Syringe empty, Volume complete(a volume limit has been set ), Occlusion, Syringe loose, Operation error, Low battery and other device failures.
Power Supply:
AC power supply: AC 100 to 240V±10%,50/60Hz
Internal LI Battery: 11.1V, 2000mAh. Approximmately 8 hours of continuous operation on a new and fully charged battery running at 5ml/h.
Power Consumption:≤25VA
Safety level:Class, Type BF
Dimensions:280mm(L)×160mm(W)×130mm(H)
Net Weight:Approximately. 3.0kg
Operating Conditions:Ambient temperature: 5 to 40Relative humidity: 20 to 90%
Storage Condition:Ambient temperature: -10 to 55Relative humidity: 10 to 90%
Accessories:AC power line, Operational manual

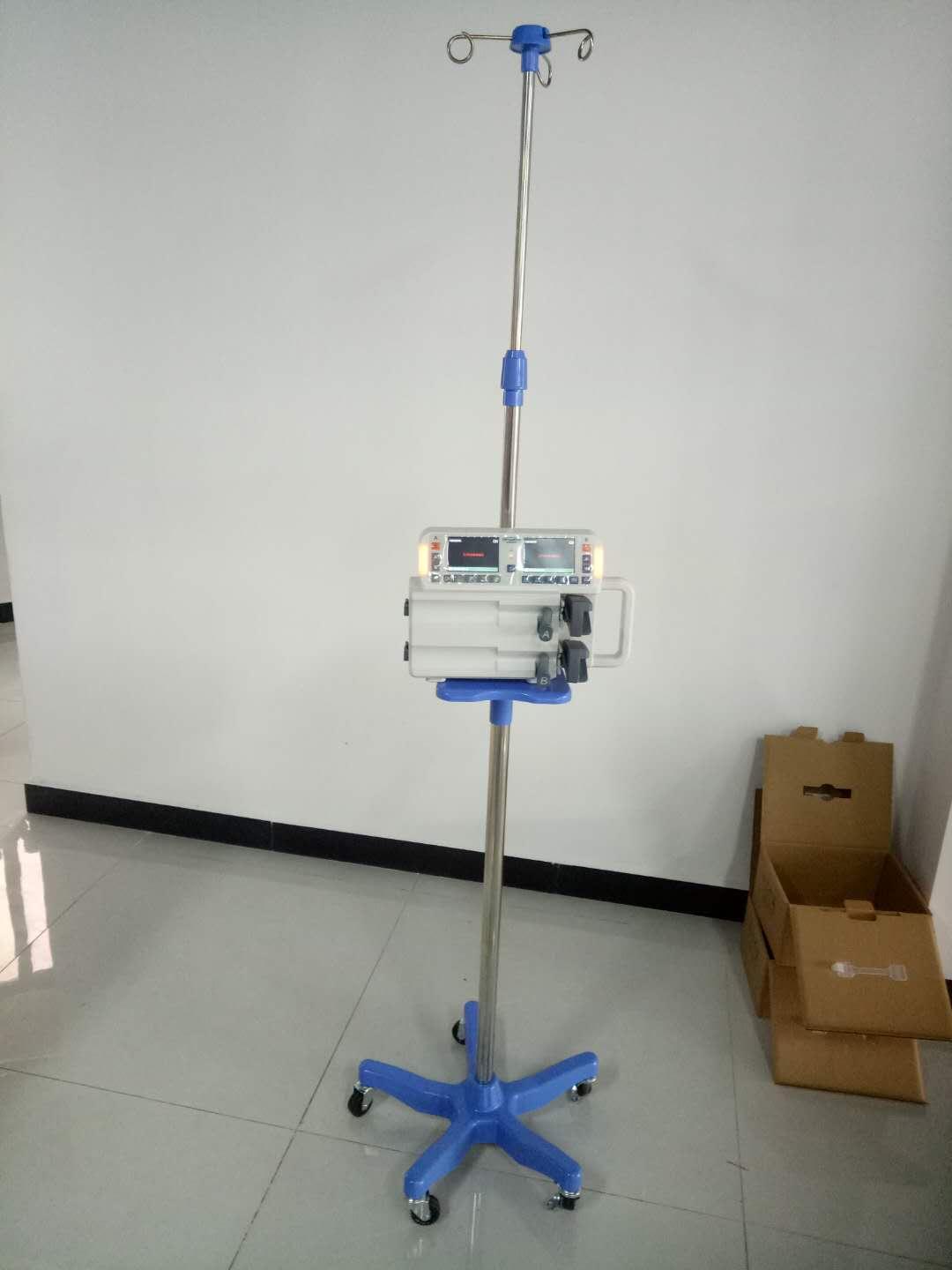

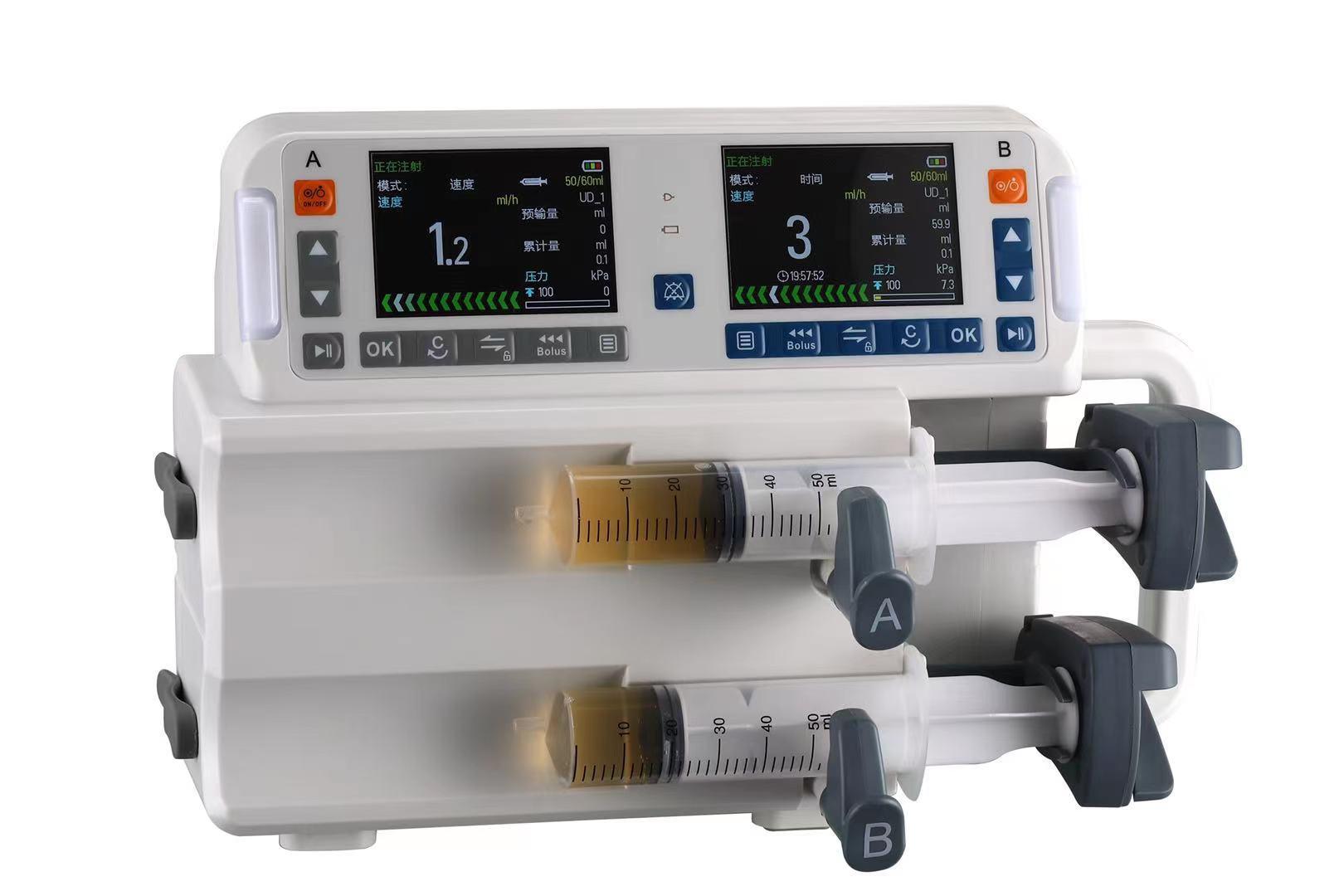

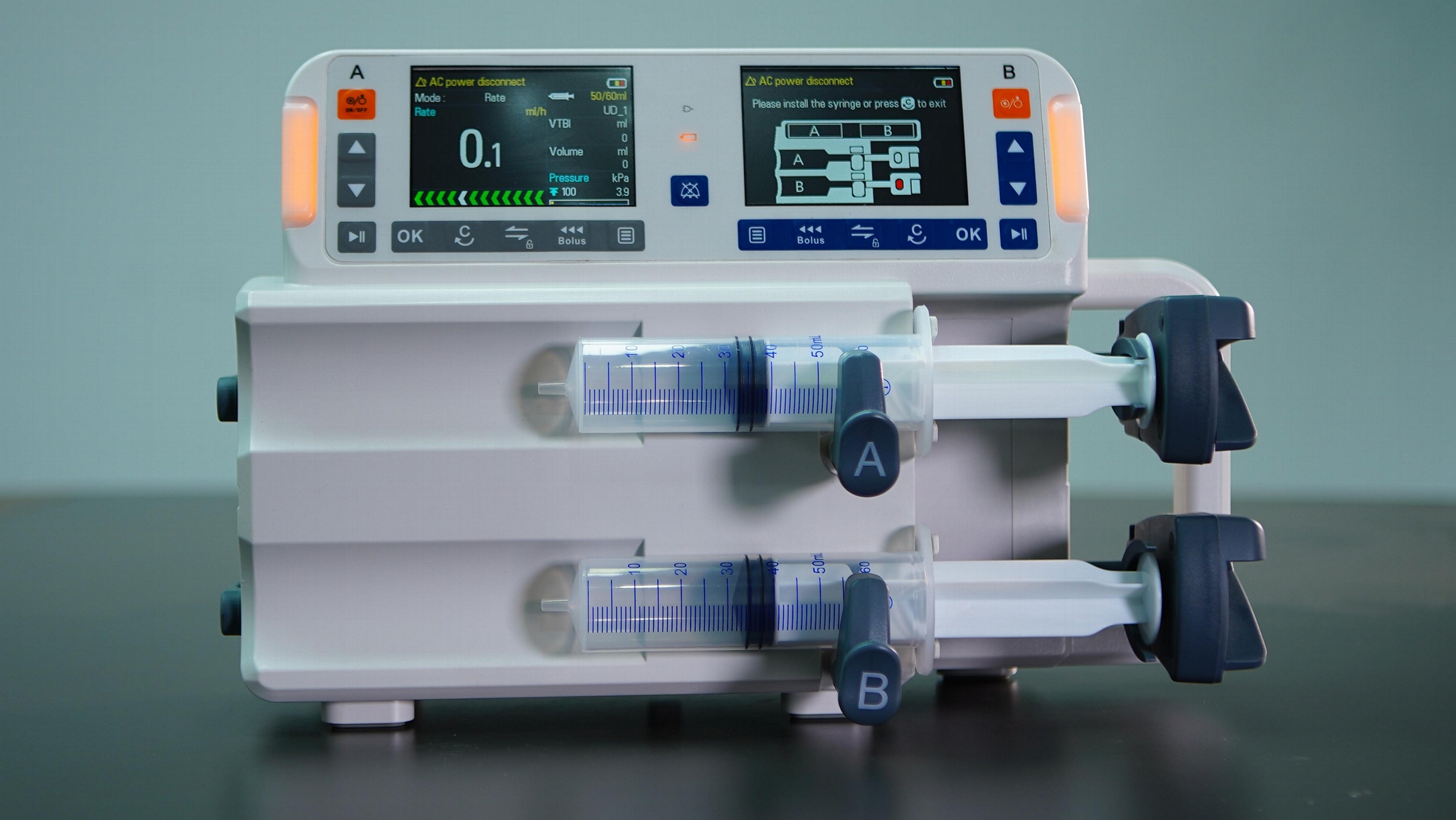

double channel syringe pump 1double channel syringe pump 2double channel syringe pump 3
