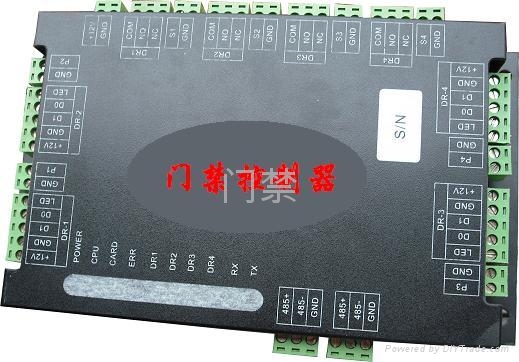

ChanMen two-way RS485 communication access controller (including power)
Type: MJ - 3202-1A
ChanMen two-way RS485 communication
Properties: adopt international advanced high-speed operation circuit and mass storage technology SCM design, make sure its strong management function, Unique transient protection function and automatic self-checking function, guarantees the system run reliably, Designed for bank vault and prisons detention and other important place design of two-door interlock, multiple CARDS door, a double open the door and the stress function confirmation, The 256 time setting and flexible authority management and control tasks, make the gateway management more perfect, Perfect record function, can record reading card open the door, illegal card reading card, button, open the door and opens the door shut down time, Friendly interface, easy operation, management is more easy. Technical parameters: the biggest networking controller 65536 Taiwan; number: Using registration number: 20480; Records storage quantity: 102400; 100mA; working current: Reader format: Wiegand 26 (compatibility of this agreement, EM, Motorola, HID Mifare card reader); 1 etc. Networking mode: RS485, Working temperature: - 35 ℃ to 65 ℃; Work humidity: 10% RH - 90% RH, without condensation, Shell size: 371mm * * 259mm 78mm
Technical parameters: the biggest networking controller 65536 Taiwan; number: Using registration number: 20480; Records storage quantity: 102400; 100mA; working current: Reader format: Wiegand 26 (compatibility of this agreement, EM, Motorola, HID Mifare card reader); 1 etc. Networking mode: RS485, Working temperature: - 35 ℃ to 65 ℃; Work humidity: 10% RH - 90% RH, without condensation,
Shell size: 371mm * * 259mm 78mm
Weight (kg) : 3.97 + 0.1
Note: manufacturer supply, quality assurance, assured the purchase
Freight: the seller excluding freight, which is set up product sale price, specific freight according to customer's delivery address and products weight assist counseling to deal with the real price can.
