Function features:
CE & ISO certified &PLC control system

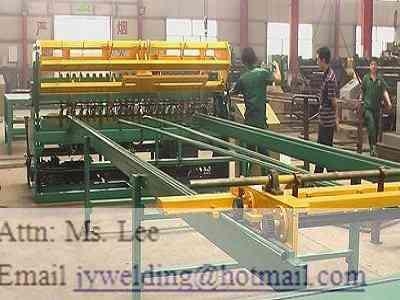

This machine adopts power electronics synchronous control technique and PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, many times welding. Welding by electromotor; the feeding hopper driven by stepping motor; wheels by brake motor; and wire mesh drawing by stepping motor . The line wire and the weft wire are pre-straight and pre-cut. The greatest advantage is that the weft spacing on the same wire mesh sheet is adjustable within certain range.

Main parameters:
(Note: customized machines are available)
Wire diameter: 3-6mm
Weft spacing: 25-200mm
Warp spacing: 50-200mm
Mesh opening: 100X100mm
Welding spot NO.:48
Mesh width: 2.5m
Transformer: 125KVA*6 (water-cooled transformer)
Weft feeding form: precut; single hopper
Warp feeding form: precut
Mesh form: panel (with pallet track & length could customized)
Overall dimension: W2945*H1650*L2600mm

Application:
Wire mesh fencing (highway, railway, and hills); construction mesh; welded mesh for mine,

After sale:
Catering for customers’ need, we offer technological consultancy and customized product with special performance, moreover professional maintenance trainings and assist in system upgrading in design & installation. We set detailed files for customers, supply spare parts in long term and provide prevention and emergency service for users.
