proximity switch---PS2556
| Model: | PS2556 |
|---|---|
| Brand: | SKYWEAL |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Switch / Sensor Switch |
| Label: | reed sensor , proximity switch , reed switch |
| Price: |
-
|
| Min. Order: | - |
Product Description
Sensor Body Material / A.B.S
Filling / Epoxy
Max Contact Rating / 10W
Max Switching Voltage / 100 VDC
Max Switching Current / 0.5A
Min Breakdown Voltage / 220 VDC
Max Carry Current / 1.0A
Max Contact Resistance / 100 mΩ
Min Insulation Resistance / 108 Ω
Release Time / 0.1 ms Max
Operate Time / 0.4 ms Max

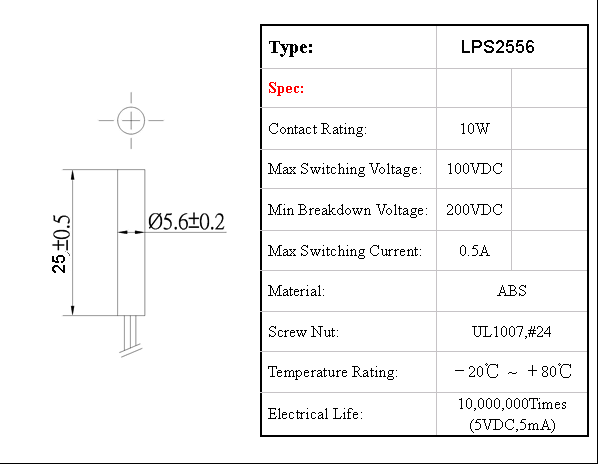

PS2556 Series
·Magntic switch,Firecracker design.
5.6 X 25mm
·No standy power requirement
·Choice of normally open,normally closed or change over contacts
·Customer defined sensitivity ,choice of cable length and connector.
Filling / Epoxy
Max Contact Rating / 10W
Max Switching Voltage / 100 VDC
Max Switching Current / 0.5A
Min Breakdown Voltage / 220 VDC
Max Carry Current / 1.0A
Max Contact Resistance / 100 mΩ
Min Insulation Resistance / 108 Ω
Release Time / 0.1 ms Max
Operate Time / 0.4 ms Max
PS2556 Series
·Magntic switch,Firecracker design.
5.6 X 25mm
·No standy power requirement
·Choice of normally open,normally closed or change over contacts
·Customer defined sensitivity ,choice of cable length and connector.
