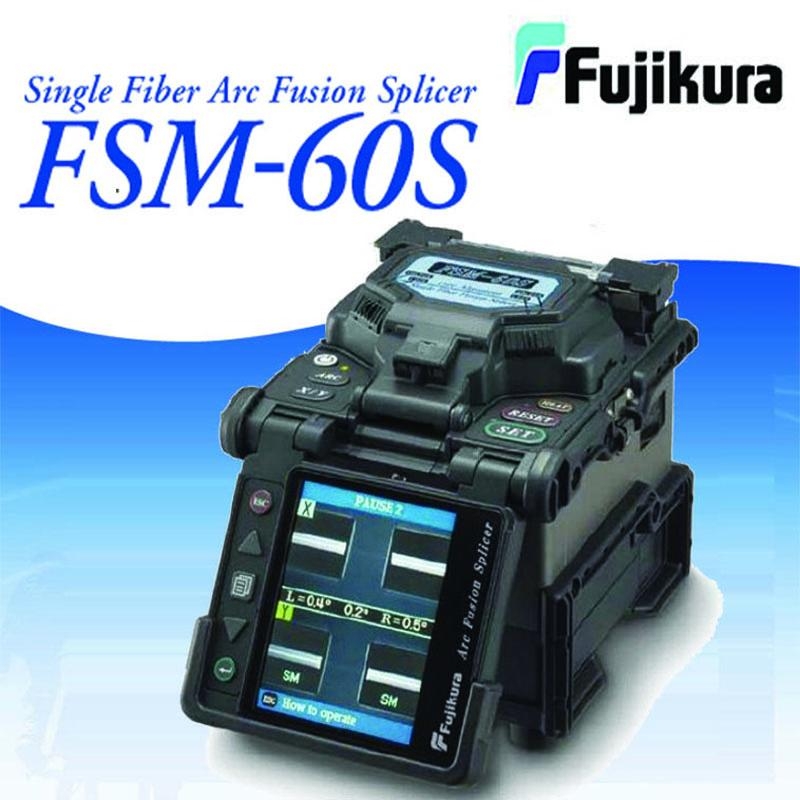

Single Fiber Arc Fusion Splicer Fujikura FSM-60S

© 2008-2009, AFL Telecommunications, all rights reserved. Revision 1, 4.17.09
Specifications are subject to change without notice. PP-01015
The fs m-60S fusion splicer sets the standard for core alignment fusion splicing by
incorporating a user-friendly interface with enhanced features to provide the most r ed
and reliable fusion splicer in the market today. The new r ed construction adds
improved reliability by resisting shock, dust, and rain, and can withstand a 30” drop test.
The fs m-60S splices a fiber in 9 seconds and heats a 60mm splice sleeve in 30 seconds,
for a total cycle time of only 39 seconds. New features, such as automatic tube heater
operation, user-selectable clamping method (sheath clamp or fiber holder system),
automated monitor image orientation, and battery charge capability during splicer
operation provide the end user a productivity tool they can count on.
New software included provides the ability to download splice data to a PC for splice
data reporting, download splicer operating software via the internet to maintain peak
performance, and download video images from the splicer to enhance technical support.



Features
• R ed construction providing shock, dust and moisture resistance
• Dual monitor position with automatic image orientation
• Automatic arc calibration and fiber identification
• User-selectable fiber clamping method – sheath clamp or fiber holders
• Auto-start tube heater feature
• Color LCD display with anti-reflective coating for excellent visibility in bright sunlight
• Simultaneous battery charge and splicer operation
• Long life battery (up to 160 splice/heat cycles per charge)
• Detachable work table incorporated into the transit case
• Data and video download software and splicer upgrade software included; software
upgrades through PC application via the internet
• Green friendly – RoHS & WEEE compliant

© 2008-2009, AFL Telecommunications, all rights reserved. Revision 1, 4.17.09
Specifications are subject to change without notice. PP-01015
The fs m-60S fusion splicer sets the standard for core alignment fusion splicing by
incorporating a user-friendly interface with enhanced features to provide the most r ed
and reliable fusion splicer in the market today. The new r ed construction adds
improved reliability by resisting shock, dust, and rain, and can withstand a 30” drop test.
The fs m-60S splices a fiber in 9 seconds and heats a 60mm splice sleeve in 30 seconds,
for a total cycle time of only 39 seconds. New features, such as automatic tube heater
operation, user-selectable clamping method (sheath clamp or fiber holder system),
automated monitor image orientation, and battery charge capability during splicer
operation provide the end user a productivity tool they can count on.
New software included provides the ability to download splice data to a PC for splice
data reporting, download splicer operating software via the internet to maintain peak
performance, and download video images from the splicer to enhance technical support.



Features
• R ed construction providing shock, dust and moisture resistance
• Dual monitor position with automatic image orientation
• Automatic arc calibration and fiber identification
• User-selectable fiber clamping method – sheath clamp or fiber holders
• Auto-start tube heater feature
• Color LCD display with anti-reflective coating for excellent visibility in bright sunlight
• Simultaneous battery charge and splicer operation
• Long life battery (up to 160 splice/heat cycles per charge)
• Detachable work table incorporated into the transit case
• Data and video download software and splicer upgrade software included; software
upgrades through PC application via the internet
• Green friendly – RoHS & WEEE compliant

Includes:

BTR-08 Battery

DCC-14 Battery Charge Cord

CT30A Cleaver

ADC-13 AC Adapter

ACC-14 AC Cord

Spare Electrodes (pair)

Sheath Clamp

USB Cable

Splicer Carrying Strap

Quick Reference Guide

Video Instruction M anual

JP-05 Splice Sleeve Cooling Tray

Transit Case with Carrying Strap
